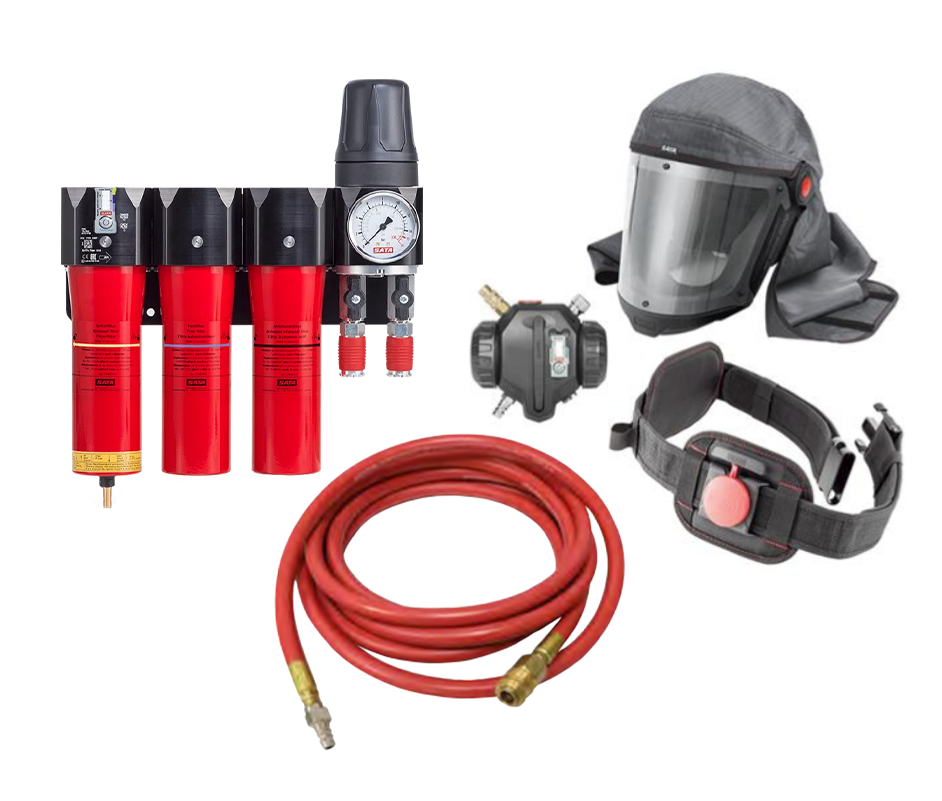

SATA Automotive Spray Booth Complete Breathing Air System

SATA's Gold Standard Complete Breathing Air System

Manufacturer: SATA

Part Number:

• 1099953 - SATA 3-Stage Filter 584
• 1005603 - SATA Air Vision 5000 w/ Regulator & Belt
• 6760XX - SATA Air Hoses

Description: The SATA complete breathing air system is the Gold Standard for particle-free, clean compressed air for professional coating in the automotive paint industry by combining the 3-stage filter with the Air Vision 5000 and all appropriate hoses.

Up to four painters are able to run off the 584 filter at once!

Scope of Delivery:

• (1x) SATA 3-Stage Filter 584
• SATA Air Vision 5000 w/ Regulator & Belt (Select quantity)
• SATA Air Hoses (Select quantity)

	The 584 filter is a triple-stage sinter filter, fine filter, and activated carbon filter, with pressure regulator and outlet module. With a 3 stage filter we can eliminate having a charcoal filter on the belt, which is much more user friendly for a painter. The maintenance on the filter is user friendly; each filter per stage has a life of 6 months with most of everything for the 500 series in stock.
	The SATA Air Vision 5000 with regulator and belt offers complete head and breathing air protection against solvent vapor and isocyanates, puts the focus on effective health protection and lets you experience a whole new and comfortable way of breathing, due to a completely re-designed breathing air supply system.
	Most users run two hoses from the filter, one for the Air Vison 5000 and one for their spray gun. A 52" whip hose can be connected into the regulator on the Air Vision waistband for minimal hoses to drag around the booth. Select your desired hose options in the dropdown menus.

SATA Filter 584 Spare Parts:

• 1101667 Pressure Regulator & Gauge
• 15511 Automatic Condensate Drain Valve
• 22160 Sintered Filter
• 24521 Condensate Retainer With O-Ring
• 1097486 Pressure Reducer With Adjustment and Counter Screws
• 1097999 Fine Filter Cartridge
• 1098004 Activated Charcoal Cartridge

• 1098054 Service Kit For 500 Series With Fine Filter and Activated Charcoal Cartridge
• 1101089 Diaphragm Including Pressure Spring and Spindle
• 1101097 Pressure Steering Unit
• 1101104 0–145 PSI Pressure Gauge
• 1101112 Cover Unit With Ball Valves (2 Pcs)
• 1101154 Filter Housing
• 1101162 Filter Sleeve With Automatic Discharge Valve
• 1114298  Cyclone Separator
