Titan Impact X 540I Electric Airless Spray Pump

Precio normal $2,439.30
Los gastos de envío se calcularán al momento de pagar.


Impact X 540I Electric Airless Spray Pump

Manufacturer: Titan Tool

Part Number:

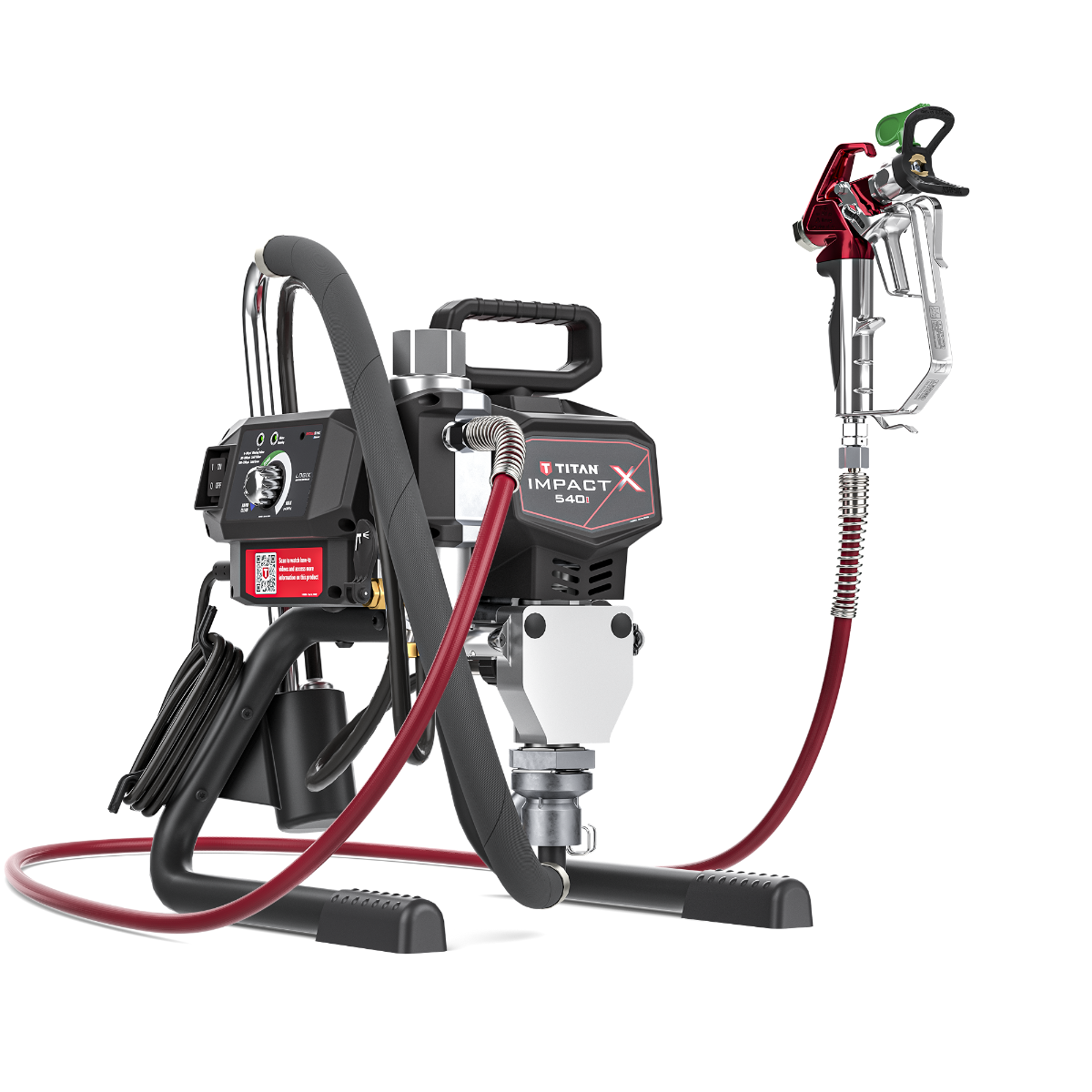

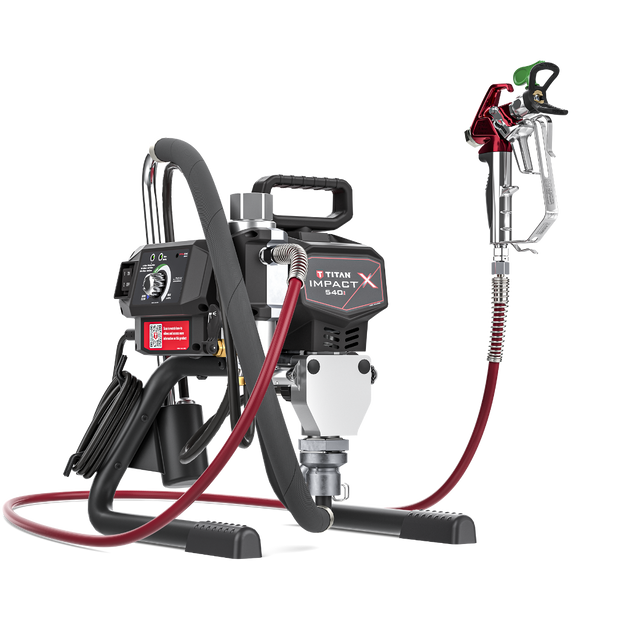

  • 2431656 (Impact X 540I Skid)

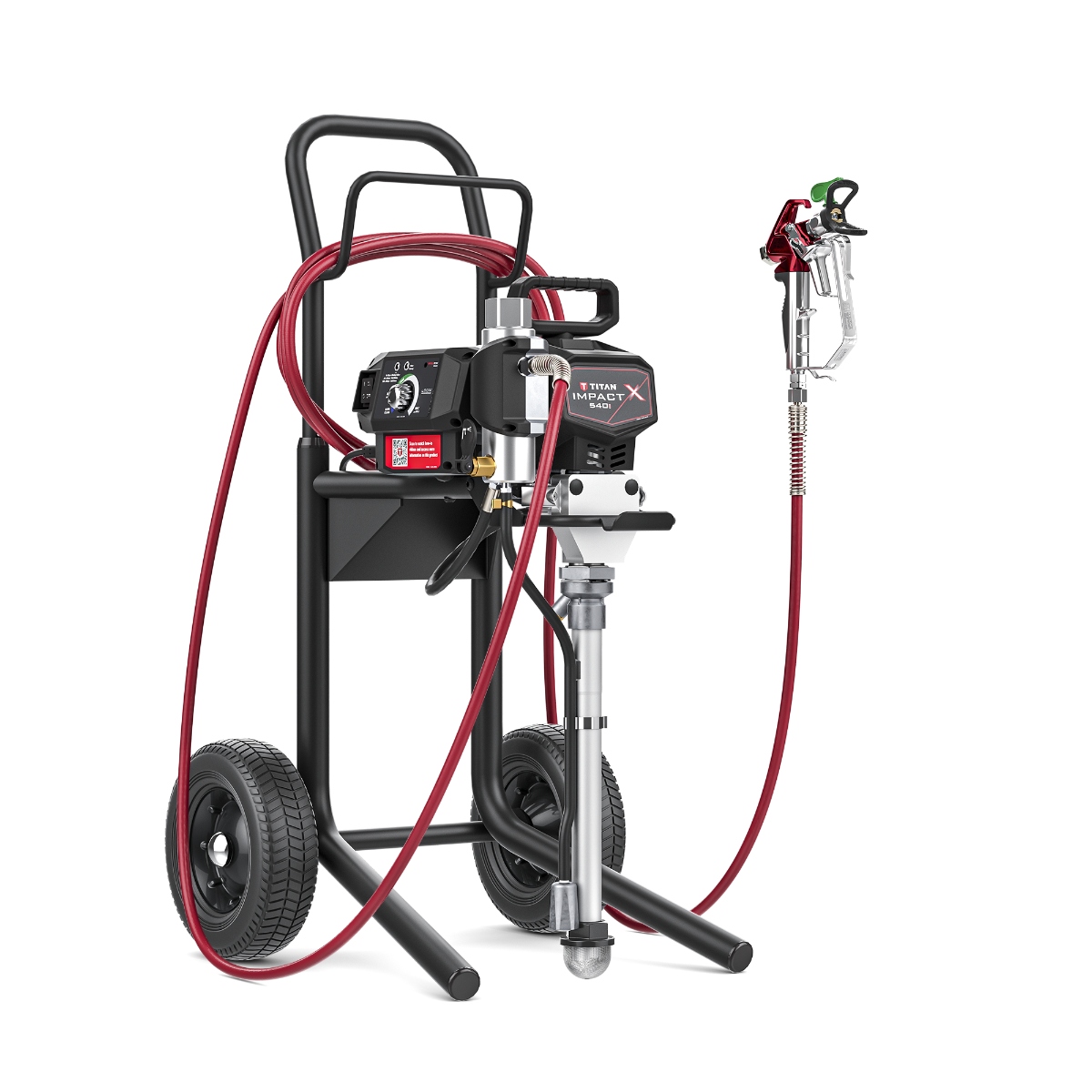

  • 2431657 (Impact X 540I High Rider)

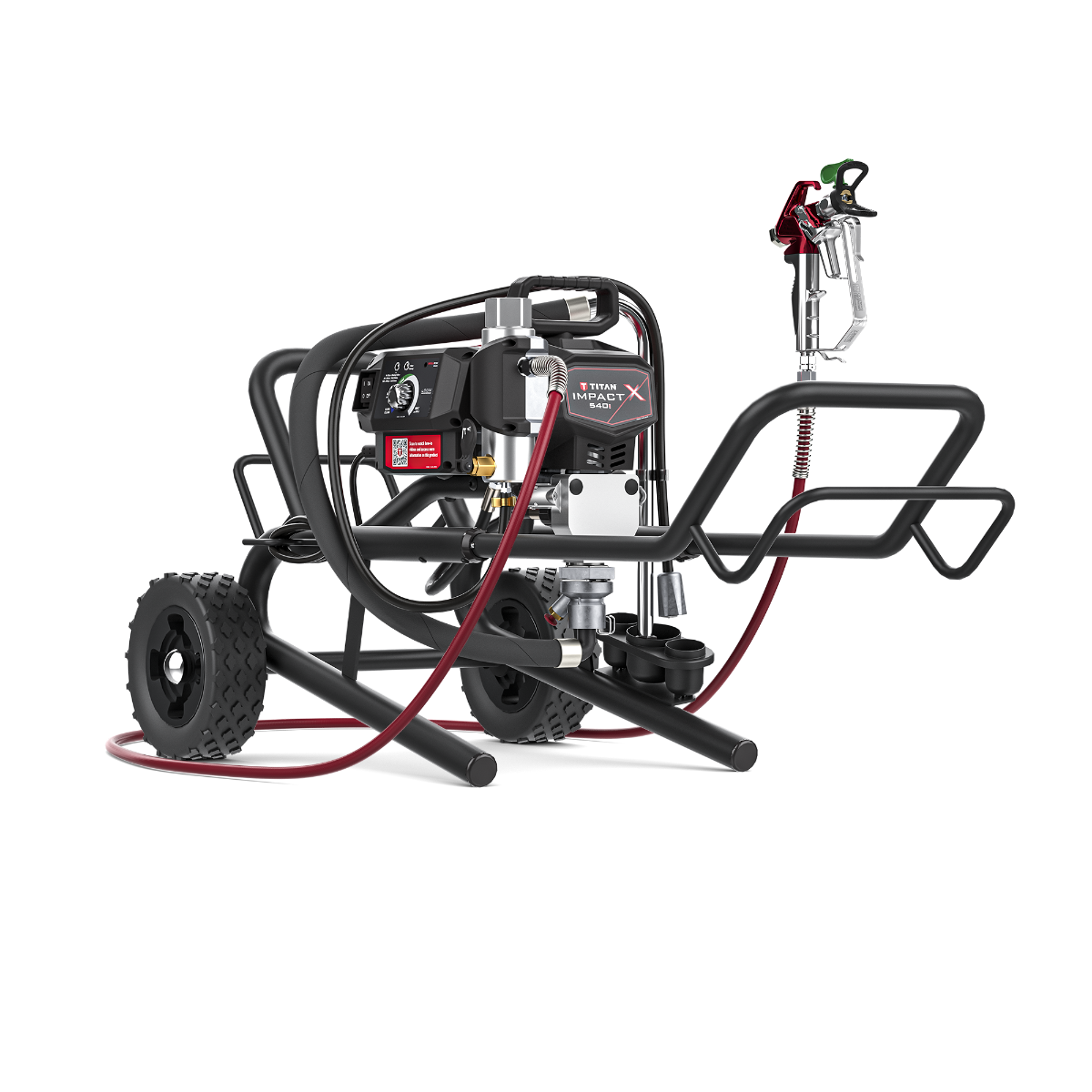

  • 2431658 (Impact X 540I Low Rider)

Description: Step up to the neXt level with the Impact X 540I. Featuring powerful Impact X Series performance and paired with Titan’s exclusive IntelliSync® Technology allowing you to take full advantage of connected sprayer operation in MyTitan.

Sprays: stains, lacquers, enamels, latex, and other low and medium viscosity coatings.

Specifications:

Max. Delivery 0.54 GPM (2.04 LPM)
Max operating pressure 3300 psi | 22.8 MPa
Max Tip Size - 1 Gun - Electric 0.023"
Motor 1.2 hp Duralife HE Brushless
Recommended Gallons Per Week 50-100
Items Included RX-Pro® Gun, 517 HEA Tip, 1/4” x 50’ Hose
Weight 30 lbs. (Skid)

54 lbs. (High / Low Rider)



Features:

  • Adjust pump pressure, track material usage, and locate your sprayer all with the MyTitan app
  • DuraLife™ HE Brushless Motor delivers the power you need while running cooler to provide years of durable and reliable maintenance-free operation
  • Logix™ Adaptive Pressure Control System is designed with tip sensing technology minimizing pressure while maximizing efficiency
  • New MaxFX™ No Tools Fluid Section changes in minutes on the job with just your hands
  • Vertical Filter cleans up to 3x faster while using as little as 1/3 the water
  • 360° Adjustable Handle for maximum comfort, grip, and portability in any position
  • Lever-Action Prime/Spray Valve ensures gradual pressure release for no jobsite accidents
Impact X 540i Electric Airless Spray Pump Replacement Parts

Reference Number

Skid 2431656

High Cart 2431657

Low Cart 2431658

Description

1

-------

-------

-------

Screw

2

-------

-------

-------

Screw

3

2456213

2456213

2456213

Motor shroud, rear

4*

-------

-------

-------

Drive assembly

5

2441852A

-------

-------

Leg assembly, left (includes items 20-24)

6

-------

-------

-------

Screw

-------

-------

-------

Screw

7

2440400

2440400

2440400

Handle kit

8*

2441853A

-------

-------

Leg assembly, right

9

2425881A

2425881A

2425881A

Front shroud

10*

2423819A

2423817A

2423819A

Pusher stem assembly (includes item 11)

11

2423825

2423825

2423825

Pusher stem clip

12*

2440409

-------

2440409

Siphon assembly and return line (includes item 13)

13

327226

327226

327226

Return tube clip

14

-------

2426230A

-------

Pail bracket

15*

-------

-------

-------

Cart assembly

16

-------

2426982

-------

Return tube

17

-------

805-408

-------

Siphon tube

18

-------

710-046

-------

Inlet filter

19

-------

730-334

-------

Clip

20

-------

-------

-------

Drip cup screw

21

2440144

-------

-------

Drip cup

22

-------

-------

-------

Screw

23

294635

-------

-------

Plug

24

805-342

-------

-------

Foot

25

2458999

2458999

2458999

Wrench, Torx 30

2440442

2440442

2440442

Main hardware kit (includes items 1, 2, 6, 20 and 22)



Suction Assembly

Reference Number

Skid 2429069

Description

1

2426336

Siphon tube assembly (includes items 1, 5-7)

2

-------

Tie wrap

3

2426337

Return tube (includes item 4)

4

2427391

Clip

5

700-805

Inlet screen

6

9871105

O-ring

7

9822526

Retaining clip

704-109

O-ring (for hot solvents, optional)



Drive Assembly

Reference Number

X 540I

Description

1

2425407A

Housing assembly

2

2426582A

Slider assembly

3

2456446

Fluid section assembly

4

2426863

Fluid hose

5

704-174

Thrust washer

6

704-173A

Crankshaft / gear assembly

7

704-176

2nd stage gear

8

2425488A

Motor assembly

9

-------

Screw

10

700-176

Nut with seal

11

704-598

Set screw

12

805-354

Pressure control knob

13

2420453

Power switch

14

-------

Screw

15

2456212

Front enclosure

16

2426221

Screw

17

2455716A

PCB assembly

18

2423449

Potentiometer

19

-------

Screw

20

-------

Washer

21

-------

Main control box assembly

22

2461135

Main control box rear plate with PCB board

23

800-929

Fuse

24*

2424887A

Filter assembly

25

2425498

Filter assembly cover

26

-------

Screw

27

9800340

Ground screw

28

2423443

Power cord assembly

2440399

Drive assembly hardware kit (includes items 9, 14, 19-20, and 26)



Fluid Section

Reference Number

X 540I

Description

1

2420537

Retainer

2

704-358

Plug

3

700-587

Piston guide

4

-------

Upper packing

5

2426476A

Pump block

6

-------

Lower packing

7

509590

Bushing

8

2420579A

Piston rod

9

704-610

Upper cage

10

50164

Outlet valve ball

11

704-612

Crush washer

12

704-558

Outlet valve seat

13

13481

Outlet valve retainer

14

700-821

Foot valve seal

15

704-703

Lower cage

16

762-145

Foot valve ball

17

762-137

Foot valve seat

18

762-058

O-ring, PTFE

19

805-351A

Foot valve

20

800-332

O-ring, Viton

21

2422827

Fitting

2420580A

Piston assembly (includes items 8-13)

805-845

Outlet valve kit (includes items 9-12 and 14)

805-846

Inlet valve kit (includes items 14-18)

704-586B

Repacking kit (includes items 3-4, 6, 9-11, 14, 16, 18 and 20. Also included are packing grease P/N 700-203 and piston guide tool P/N 700-793.)



Cart Assembly (High Cart)

Reference Number

High Cart 2431657

Description

1

2426619A

Handle kit

2

-------

Screw

3

-------

Washer

4

2426732A

Cart

5

278373

Wheel

6

-------

Wheel spacer

7

-------

Axle cap

8

9885571

Plug

9

294635

Plug

2440403

Cart hardware kit (includes items 2-3 and 6-8)



Cart Assemby (Low Cart)

Reference Number

Low Cart 2431658

Description

1

9890104

Axle cap

2

294534

Wheel spacer

3

270394

Wheel

4

590-508

Roll pin

5

590-506

Handle washer

6

590-504

Handle sleeve

7

9841504

Spring button

8

704-309

Handle

9

2431625A

Cart weldment

10

294635

End cap

11

700-1043

Drip cup

12

9805230

Drip cup screw

13

9885571

Plug

14

856-921

Screw

15

856-002

Lock washer



Filter Assembly

Reference Number

X 540I

Description

1

2424931A

Filter cap

2

2424934

O-ring

3

2424932

Filter core

4

2424933

Filter, white (60 mesh)

5

2424886A

Filter bowl

6

2427607A

Transducer

7

700-537

Washer

8

2440405

Bypass valve assembly (includes item 7)

9

227-006

Fitting

10

2442856

Return tube fitting
