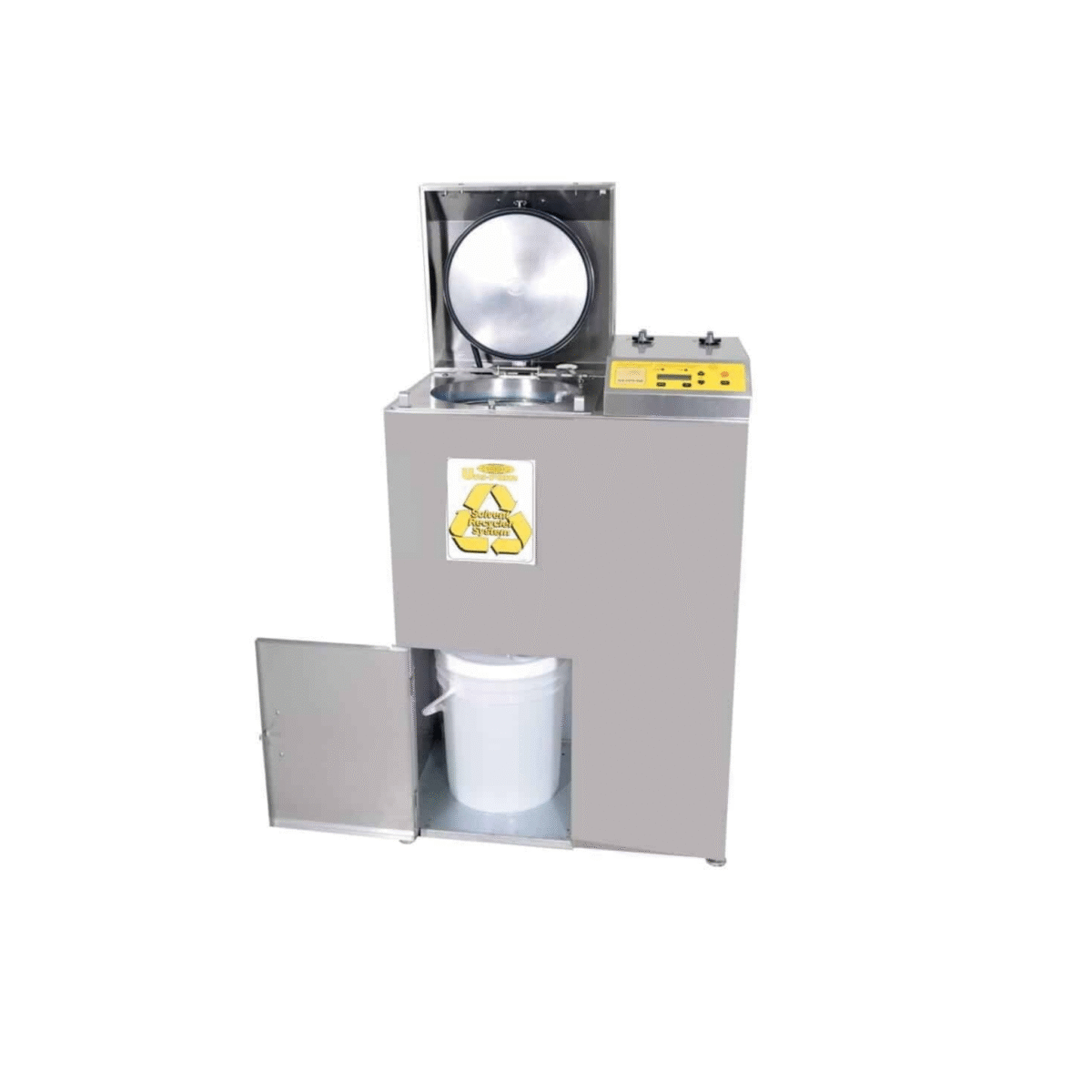

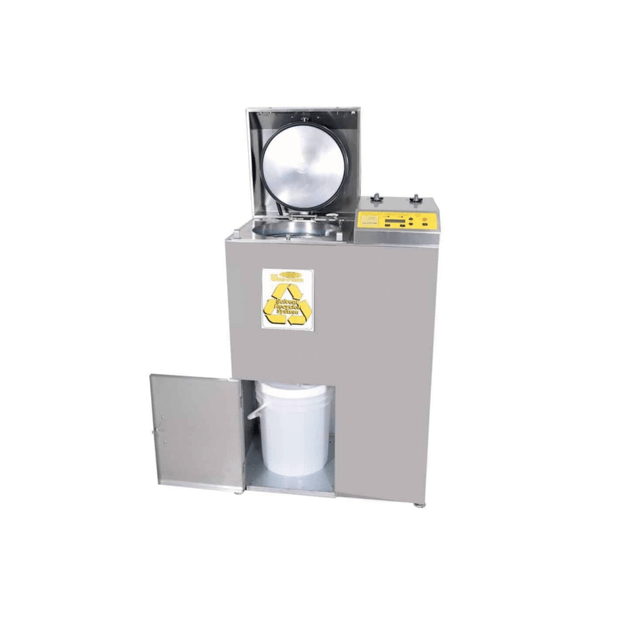

Uni-Ram BB30N Series, 6 Gallon Solvent Recycler

BB30N Series, 6 Gallon Solvent Recycler

Manufacturer: Uni-Ram

Part Number: BB30N

Description: The BB30N, 6 gallon, solvent recycler effectively reclaims used solvent for reuse and segregates solid waste like paint for disposal. With a Uni-ram solvent recycler the operation becomes “Greener”. The facility can improve its Waste Generator Status with
Environmental Agencies as used solvent transported off site is reduced by approximately 90%. Solvent purchases typically drop by approximately 90% and the waste hauling charge also drops by approximately 90%. The 10% waste from recycling is considered hazardous unless the Disposal Service advises otherwise.

You will be contacted with a freight quote for shipping

Key Features:

• Batch process, 6 gallon capacity.
• Recycles in 4-8 hrs. typically.
• Voltage: 220-240V, single phase.
• Construction: 18 gage, 304 stainless steel cabinet.
• Distillation Tank: 316 Stainless steel.
• Cooling: High efficiency 316 stainless steel condenser with motor driven fan.
• Waste Collection: The waste is collected in a high temperature nylon bag.
• Dimensions: 28” w x 17” d x 42.5” h
• Solvent Transfer: Fill by timer. Transfer out by timer.
  Safety:
• Certification: UL Standard 2208 and CSA Standard 22.2 No. 30 and 88. Certified to Class 1 Division 1, Group D Explosion Proof standards.
• Many built-in safety programs. Continuous self diagnostics with error messages.
• Pressure Relief System: Prevents pressure build up over 3-5 PSI.
• Control System: Operational control and continuous monitoring by sophisticated micro-processor with status messages. Self test mode.

WITH A BB100N THE OPERATION BECOMES “GREENER” AND THE OPERATING COSTS DROP

APPLICATIONS include:
• reclaim lacquer thinners used to remove paint and debris
 from spray painting equipment.
• reclaim solvents like acetone used to clean equipment
 used in fiberglass construction.

Specifications:

* Operating the unit at a lower voltage (eg: 208V) may result in reduced performance.

Safety Features:

• Certification: UL Standard 2208 and CSA Standard 22.2 No. 30 and 88. Certified to Class 1 Division 1, Group D Explosion Proof standards.

• Many built-in safety programs. Continuous self diagnostics with error messages.

• Pressure Relief System: Prevents pressure build up over 3-5 PSI.

Literature:

• Brochure
• Manual
