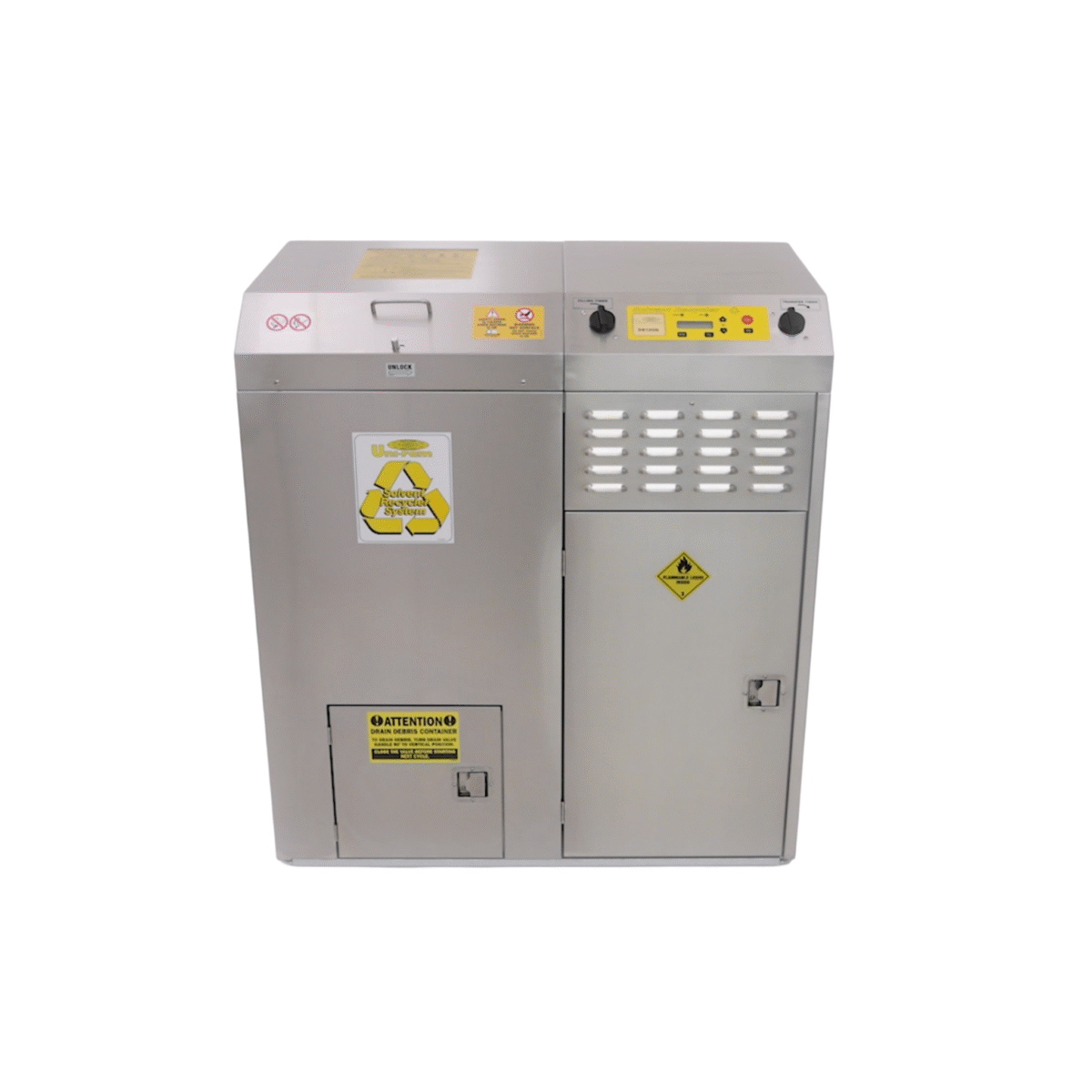

Uni-Ram DB100N Industrial Solvent Recycler, 20 Gallon

DB100N Industrial Solvent Recycler, 20 Gallon

Manufacturer: Uni-Ram

Part Number: DB100N

Description: The Uni-Ram DB100N Industrial Solvent Recycler is a high-capacity 20-gallon batch recycling system designed for demanding industrial and automotive applications. Engineered to reclaim contaminated solvents such as paint thinner, acetone, lacquer thinner, and other cleaning solvents, the DB100N helps businesses dramatically reduce solvent purchasing and hazardous waste disposal costs.

Built with a durable stainless steel cabinet and distillation tank, the DB100N features advanced microprocessor controls with self-diagnostic monitoring, automatic safety shutoffs, and explosion-proof construction for reliable operation in hazardous environments. Its powerful heating system and high-efficiency condenser deliver fast recycling cycles while producing clean, reusable solvent for everyday shop operations.

Ideal for paint shops, manufacturing facilities, fiberglass operations, and metal fabrication environments, the DB100N can reduce solvent waste by up to 90%, helping facilities lower operating costs while supporting environmentally responsible practices.

Liner bags purchased separately below

You will be contacted with a freight quote for shipping

Features:

• 20-gallon (80L) batch solvent recycling capacity

• Reclaims paint thinner, acetone, lacquer thinner, and more

• Heavy-duty stainless steel construction

• Smart microprocessor controls with LCD diagnostics

• Explosion-proof certified design

• High-efficiency condenser with air cooling

• Automatic safety monitoring and pressure relief system

• Helps reduce solvent purchase and disposal costs by up to 90%

• Ideal for industrial, automotive, and manufacturing applications
• Rapid-start, direct electric heating of solvent. No diathermic oil to change.

• Short cool-down time. High efficiency condenser, air cooled with motor driven fan.

Specifications:

VOLTAGE (V) SINGLE PHASE (A)	220/240
BRANCH CIRCUIT AMPS	30
EXPLOSION PROOF CONNECTION (B)	YES
MAX TEMPERATURE SET POINT	464°F
TIME TO RECYCLE	8-10 HOURS
TANK CAPACITY	16 US GAL (70L)
LID GASKET	VITON
SHIPPING DIMENSIONS (WDH”)	49 X 29 X 53
SHIPPING WEIGHT (LB/KG)	428/194

NOTES:
A: Operating the unit at a lower voltage (eg: 208V) may result in reduced performance.
B: Explosion proof plug and explosion proof receptacle (30 A) or by direct connection to an explosion proof electrical box (30A).

Safety Features:

• Certified to UL standards U2208 and CSA standards C22.2 No. 30 and No. 88 by ETL. Approved for use in non hazardous locations as well as approved for use in hazardous locations Class 1, Division 1, Group D and Class 1, Division 2, Group D.

• Explosion proof construction and intrinsically safe electric circuitry.

• Computer controlled with many built-in safety programs including temperature control of all critical points including tank, condenser and fan motor. Power is cut when the temperature at any of these points rises above a pre-set level. Operation also terminates when other abnormal conditions exist (eg: boiling does not start on time or the distillation process takes too long).

• Automatic pressure relief lid system prevents pressure in the Distillation Tank from exceeding 0.5 to 1.0 psi. (0.035 to 0.070 kglcm2).

• Self Diagnostic error messages are displayed on the Display Panel.

• Dual lid cover system.

• Compact, enclosed cabinet for safe storage of the Solvent Receiving Container inside the cabinet.

Parts and Accessories:

• Liner Bags, QTY 10
