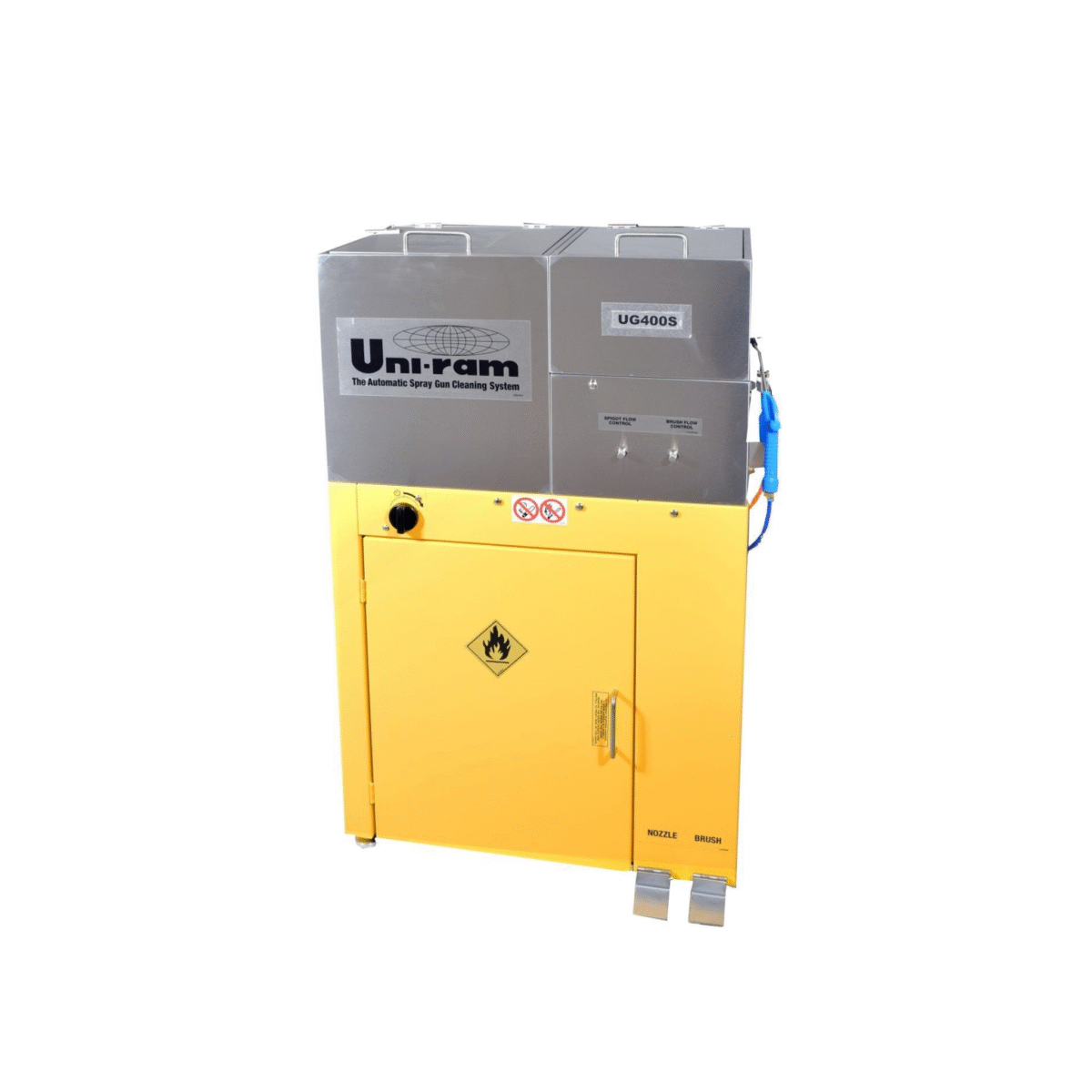

Uni-Ram UG400 Spray Gun Washer
Uni-Ram UG400 Spray Gun Washer
UG400 Spray Gun Washer
Manufacturer: Uni-Ram
Part Numbers: UG400W & UG400S
Models:
UG400S: for cleaning solventborne spray guns only.
UG400W: for cleaning waterborne spray guns only.
Description: Popular with Painters who like to clean their spray gun quickly and effectively in the automatic tank to get ready for the next paint job and who also like to regularly disassemble their spray gun to detail clean the components. Keeping the spray gun in good working order extends the life of their spray gun.
Dimensions:
25.8 x 13.6 x 42" (WDH)
65.6 x 34.5 x 106.6 cm (WDH)
Weight:
70 lb (31.8 kg)
You will be contacted with a freight quote for shipping
Automatic Tank:
• 2 minute timer to remove heavy coatings and dried paint.
• Accommodates all makes of disposable cup adapters.
• Conical plug with air to keep air passage free from liquid.
Manual Tank:
• Includes brushes and other cleaning tools to clean components of spray guns (KIT-GCTOOLS).
• Flow-through brush, activated by a foot pedal.
• Spigot, activated by a foot pedal.
Automatic Cleaning:
1) Activate the Timer for two minute for ordinary cleaning, 5 minutes to soften and remove
dried paint. High pressure liquid flows from 14 nozzles to wash paint from the paint passage and exterior of the spray gun.
2) Dry with blow gun.
3) Designed to clean disposable cup adapters like PPS as well as conventional cup systems.
• Powered by Uni-ram's dual 4" dual diaphragm pump that delivers liquid at 2 gallons per minute.
• Complete with pressure regulator.
Manual Cleaning:
• Flow-through brush, activated by foot pedal to clean exterior of the spray gun.
• Flexible rinse spigot delivers clean liquid, activated by foot pedal.
• 18 piece Pick and Brush kit, see photo on right.
• Powered by Uni-ram's 2" dual diaphragm pump.
• Non-corrosive components including the stainless steel tank.
Safety:
• TUV Certifi cate No. Ex9A 078342 003 Rev.00
• Safe operation; Safety switch suspends automatic cleaning cycle when the lid is raised.
• Automatic cleaning is "Hands Free". Operator has minimum exposure to used liquid.
• Always disconnect this machine from power sources before performing maintenance.
• Do not smoke or use near open flames, sparks or heat.
• Make sure all ground wires are connected and that unit itself is grounded properly.
• Wear safety eyeware, respiratory protection and protective clothing.
• Wear deluxe extended length neoprene gloves; SAS PN 6588 or Thicksters PN 6602-20 through 6605-20
Parts and Accessories:
