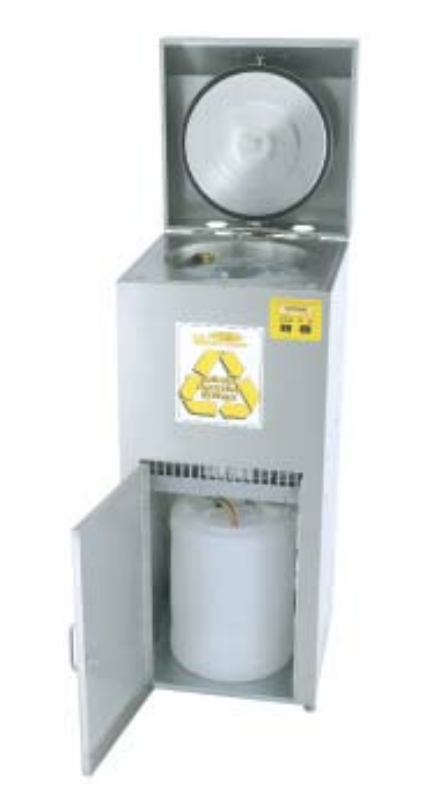

Uni-Ram URS500 Series, 5 Gallon Solvent Recycler

URS500 Series, 5 Gallon Solvent Recycler

Manufacturer: Uni-Ram

Part Number: URS500

Description: The Uni-Ram URS500 is a compact and efficient solvent recycling system designed to recover and reuse contaminated cleaning solvents used in automotive, industrial, and paint shop applications. Using a safe distillation process, the URS500 separates reusable solvent from paint residue, oils, and other contaminants, helping reduce hazardous waste disposal costs while lowering overall solvent consumption.

Built with durable industrial-grade components and explosion-proof safety features, the URS500 is ideal for body shops, manufacturing facilities, and refinishing operations looking to improve efficiency and maintain a cleaner work environment. Its user-friendly design allows operators to manually load waste solvent, start the recycling cycle, and recover clean solvent ready for reuse in spray gun cleaning and other solvent-based processes.

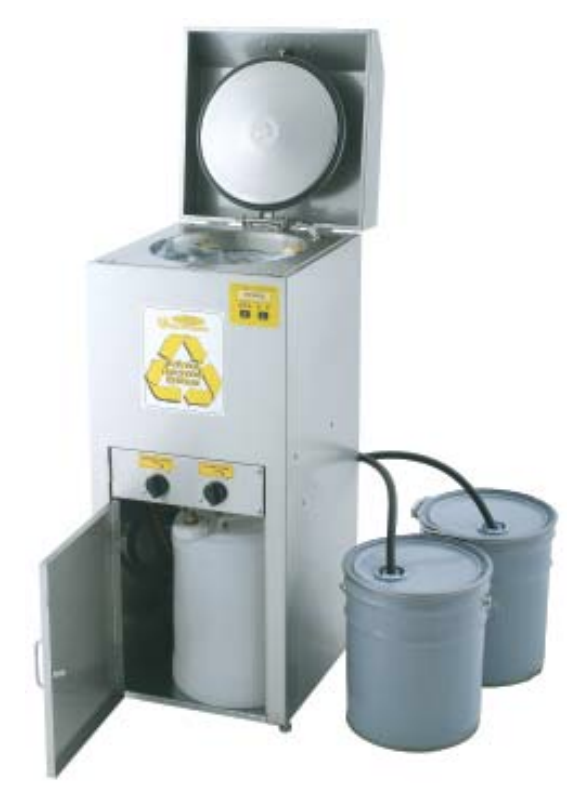

The “E” models are designed to be linked directly to a Uni-ram “E” series Automatic Spray Gun Cleaner or to an external container. The direct connection creates a self-contained Recycling System allowing Timer-controlled Transfer In and Out between the Solvent Recycler and the other component.

Does not include storage buckets.

You will be contacted with a freight quote for shipping

Key Features:

• 5-gallon (20 L) solvent recycling capacity
• 4-6 hour speed
• Distillation-based solvent recovery system
• Reduces hazardous waste and solvent purchasing costs
• Explosion-proof and safety-compliant construction
• Simple manual-fill operation
• Compatible with a wide range of paint and cleaning solvents
• Ideal for automotive, industrial, and refinishing applications

The Uni-Ram URS500 provides a cost-effective and environmentally responsible solution for extending solvent life and improving shop productivity.

Safety Features:

• Certified to UL standards U2208 and CSA standards C22.2 No. 30 and No. 88 by ETL. Approved for use in non hazardous locations as well as approved for use in hazardous locations Class 1, Division 1, Group D and Class 1, Division 2, Group D.

• Explosion proof construction and intrinsically safe electric circuitry.

• Computer controlled with many built-in safety programs including temperature control of all critical points including tank, condenser and fan motor. Power is cut when the temperature at any of these points rises above a pre-set level. Operation also terminates when other abnormal conditions exist (eg: boiling does not start on time or the distillation process takes too long).

• Automatic pressure relief lid system prevents pressure in the Distillation Tank from exceeding 0.5 to 1.0 psi. (0.035 to 0.070 kg/cm2).

• Self Diagnostic error messages are displayed on the Display Panel.

• Dual lid cover system.

• Compact, enclosed cabinet for safe storage of the Solvent Receiving Container inside the cabinet.

Parts and Accessories:

• Liner Bags QTY 10
