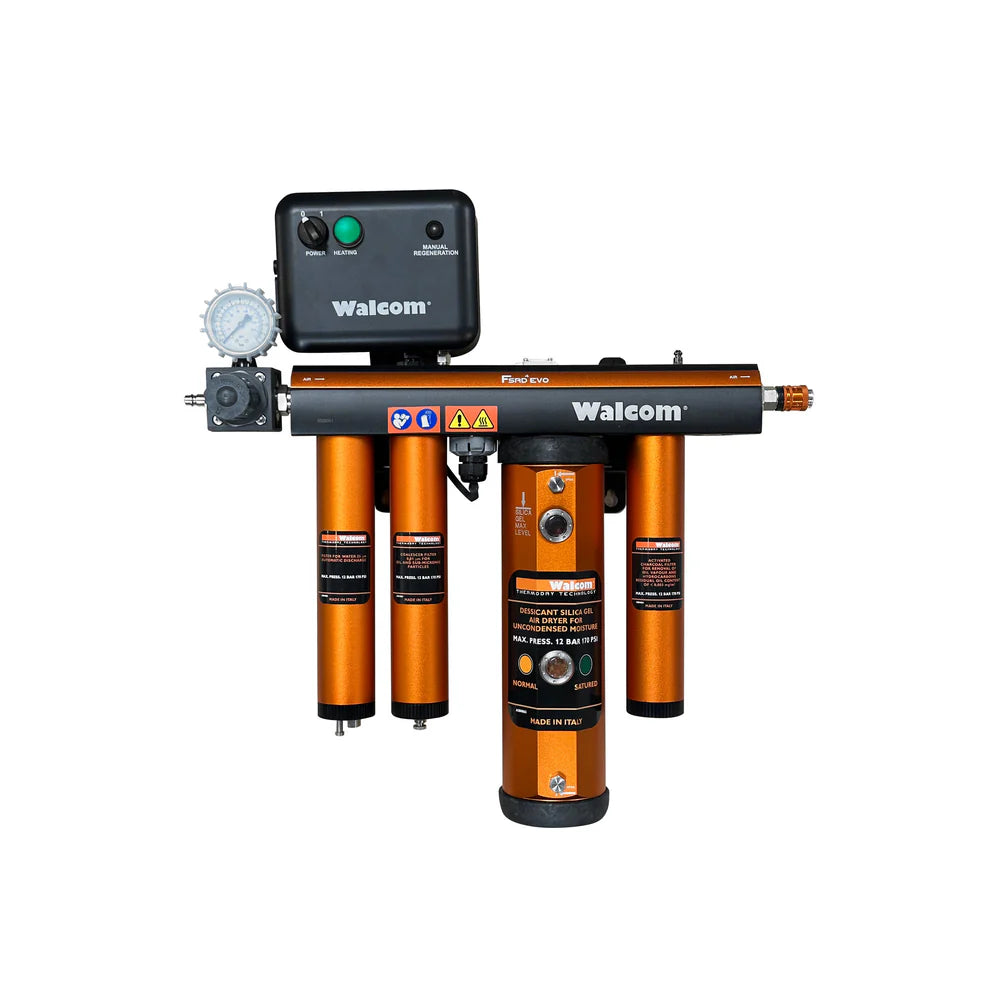

Walcom Thermodry Compressed Air Filtration System - FSRD 4 EVO

Walcom Four Stage Compressed Air Filtration System - FSRD 4 EVO

Manufacturer: Walcom

Part #: 60177

Description: A modular filter system ideal for use in the spray booth. Composition: Pre filtering element in sythentic fibre for the elimination of condensation. Automatic discharge. Oil-separating filter for the elimination of residual pollutants. Manual drainage tap. Silica dryer group to reduce residual humidity in the compressed air. Nr. 3 saturation indicator lights. Active carbon filter to eliminate all impurities and obtain breathable air.

4-Stage Filtration:

1. Pre-filtering element in sythentic fibre for the elimination of condensation. Automatic discharge.

2. Oil-separating filter for the elimination of residual pollutants. Manual drainage tap.
3. Silica dryer group to reduce residual humidity in the compressed air. Nr. 3 saturation indicator lights.

4. Active carbon filter to eliminate all impurities and obtain breathable air.

Automatic regeneration of silica gel using integrated resistance and control unit. Max residue < 0.0003 mg/m'. Central body: anodized aluminum Air inlet: F 3/4"; air outlet: n° 2 from M 1/4" Filtering power: water filter 25 um - oil 0.01 um - carbons < 0,0003 mg/m?. Operating air pressure: 12 bar / 174 psi Air consumption: 1200 l/min to 6 bar / 42 cfm at 87 psi Weight: 11.5 Kg Non-ATEX product, to be mounted outside the paint booth.

Parts and Accessories:

• Water Filter
• Oil Filter
• Active Charcoal Filter
• Thermo Hygrometer
