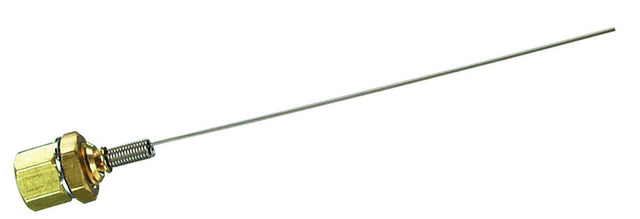

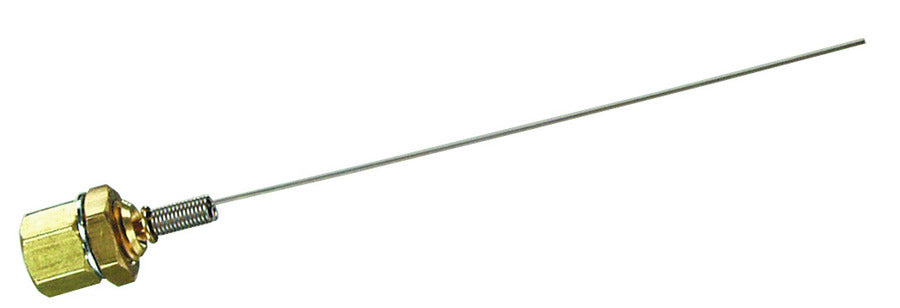

Whisker Valve

Specifications

Air Flow 28 l/min @ 50 psig; 42 l/min @ 100 psig
Input PSI 150 psig

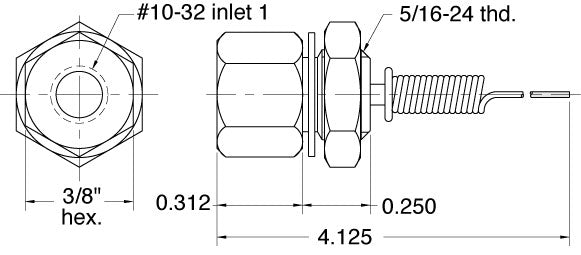

Length 4.125
Max PSI 150 psig
Medium Air
Mount 5/16-24 Male Thread
Temperature Range 32 to 230 F
Weight 0.0500



Notes

Nut & Lock Washers Furnished.

Uses

For use with bleed pressure piloted control circuits. Coil spring stainless steel whisker is easily replaceable and can be formed to different shapes (#12375)
