RIGA Horizontal Bellows Pump
Manufacturer: Sagola
Part Numbers: See Below
Description: The RIGA Horizontal Bellows Pump is a powerful air-assisted airless horizontal bellows pump, engineered for precision and reliability in demanding applications. Its smooth bellows action ensures uniform material flow, making it ideal for multi-spray gun feeding capabilities, particularly in automated paint lines. The closed bellows system is designed to handle shear-sensitive, moisture-sensitive materials, and UV coatings, ensuring no air or moisture contamination. This pump is a must-have for those seeking durable performance and coating stability.
LTL Freight Shipping Only. You will be contacted with a freight quote after placing order.
Specifications:
| RIGA H10 | RIGA H15 | RIGA H25 | |
| Dimensions (with trolley) | 52.6 x 57.6 x 87.5 cm / 20.7 x 22.7 x 34.4” | 52.6 x 57.6 x 87.5 cm / 20.7 x 22.7 x 34.4” | 52.6 x 57.6 x 87.5 cm / 20.7 x 22.7 x 34.4” |
| Dimensions (with wall) | 54.3 x 35.9 x 51.6 cm / 21.4 x 14.1 x 21.3” | 54.3 x 35.9 x 51.6 cm / 21.4 x 14.1 x 21.3” | 54.3 x 35.9 x 51.6 cm / 21.4 x 14.1 x 21.3” |
| Net Weight (with trolley) | 41 Kg / 90.4 lbs | 42 Kg / 92.5 lbs | 45 Kg / 99.2 lbs |
| Pressure ratio | 10:1 | 15:1 | 25:1 |
| Pneumatic cylinder | Ø 135 mm | Ø 150 mm | Ø 200 mm |
| Free flow (60 cycles/min) |
16.71 L/min 3.68 gpm 4.41 US gpm |
13.85 L/min 3.05 gpm 3.66 US gpm |
14.96 L/min 3.29 gpm 3.95 US gpm |
| Flow per cycle |
105.55 c.c. / 0.023 g/min. / 0.028 imp Gal |
105.55 c.c. / 0.023 g/min. / 0.028 imp Gal |
105.55 c.c. / 0.023 g/min. / 0.028 imp Gal |
| Maximum air inlet pressure |
6 bar / 87 psi |
6 bar / 87 psi |
6 bar / 87 psi |
| Maximum fluid outlet working pressure |
66 bar 957 psi |
82 bar 1,189 psi |
148 bar 2,146 psi |
| Air consumption at 60 bar (870 psi) and 2.4 CPM |
16.71 L/min. 5.51 gpm 6.62 US gpm |
13.85 L/min. 3.05 gpm 3.66 US gpm |
14.96 L/min. 3.29 gpm 3.95 US gpm |
| Air Inlet |
BSP 1/4” Quick coupling |
BSP 1/4” Quick coupling |
BSP 1/4” Quick coupling |
| Product outlet |
BSP 1/4” BSP |
BSP 1/4” BSP |
BSP 1/4” BSP |
| Temperature operating range |
from -10 to +60 oC / from 14 to 140 oF |
from -10 to +60 oC / from 14 to 140 oF |
from -10 to +60 oC / from 14 to 140 oF |
Fluid Pressure Scheme:
| MODEL | RATIO | AIR INLET PRESSURE | PRODUCT OUTLET PRESSURE |
| RIGA H10 | 10:1 |
3 bar/ 43.5 psi / 0.3 MPa 6 bar/ 87 psi / 0.6 MPa |
33 bar/ 478.6 psi / 3.3 MPa 66 bar/ 957 psi / 6.6 MPa |
| RIGA H15 | 15:1 |
3 bar/ 43.5 psi / 0.3 MPa 6 bar/ 87 psi / 0.6 MPa |
41 bar/ 594.6 psi / 4.1 MPa 82 bar/ 1,189 psi / 8.2 MPa |
| RIGA H25 | 25:1 |
3 bar/ 43.5 psi / 0.3 MPa 6 bar/ 87 psi / 0.6 MPa |
74 bar / 1,073 psi / 7.4 MPa 148 bar / 2,146 psi / 14.8 MPa |
- Air Motor: Low maintenance 53cfm (14.96lpm) air motor for large automated paint lines.
- Pump Fluid Section: Manufactured from stainless steel to handle both solvent and water-based coatings.
- Flow Rate: High flow 9.75lpm (2.58gpm) engineered to supply multiple guns.
- Bellows Action: Smooth operation for uniform paint flow, ideal for shear-sensitive coatings.
- Anti-Pulse Fluid Filter: Fitted as standard for constant spray patterns and uniform film thickness.
- Enclosed System: No exposed seals or packing, reducing maintenance and contamination risks.
- Mobility: Rugged, ergonomic trolley with built-in hose and gun rack, easily wall mountable.
- Weight: 33.3kg (58lb) complete with suction hose.
Features:
- Leak-proof, closed pump design prevents air or moisture contamination, ideal for moisture-sensitive coatings.
- Durable stainless steel construction for long-lasting performance.
- Smooth bellows action for uniform material flow, minimizing the risk of paint bubbling.
- Engineered for use with both solvent-based and waterborne materials.
- Standard anti-pulse fluid filter for consistent spray patterns.
- Ergonomic design with easy mobility and wall mounting capabilities.
When selecting a model, the following options are available:
Pump Type: 10 (10:1), 15 (15:1) or 25 (25:1)
Mount Type: Trolley & Wall
Spray Package Type: No Gun or With Gun
Gun Type: Sagola Mini Xtreme Mix Air Assisted Airless Spray Gun
or Sagola V7 Mix Automatic Gun (for model H25 only)
All ordering will be by part #, please refer to them below
- Pumps and Mounts (includes Trolley & Wall Mount, 7m (22.9 ft) Combined Air & Product Hose with Protective Cover for Air Assisted Airless Systems (other lengths are available to purchase separately) & Product Suction Hose

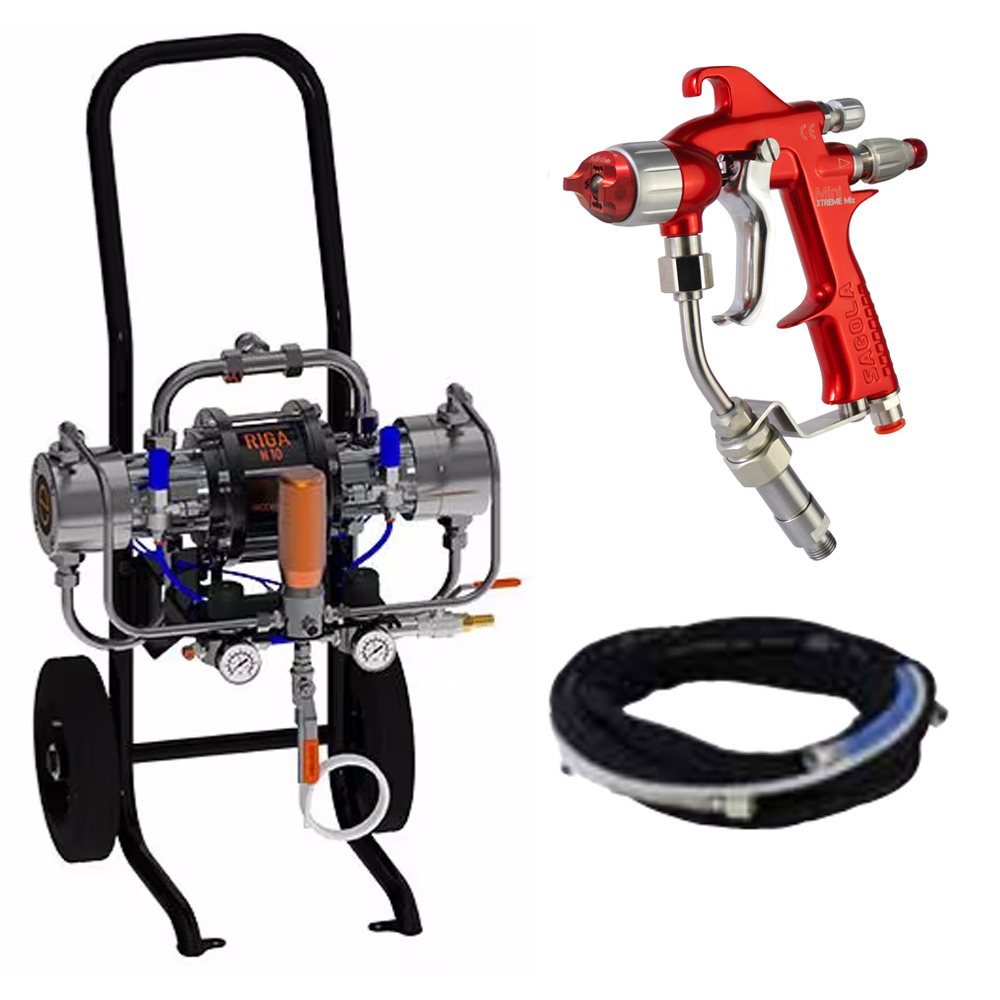

- PSPBH10AAA-T = Sagola RIGA H10 (10:1) Air Assisted Airless Bellows Piston Pump
- PSPBH15AAA-T = Sagola RIGA H15 (15:1) Air Assisted Airless Bellows Piston Pump

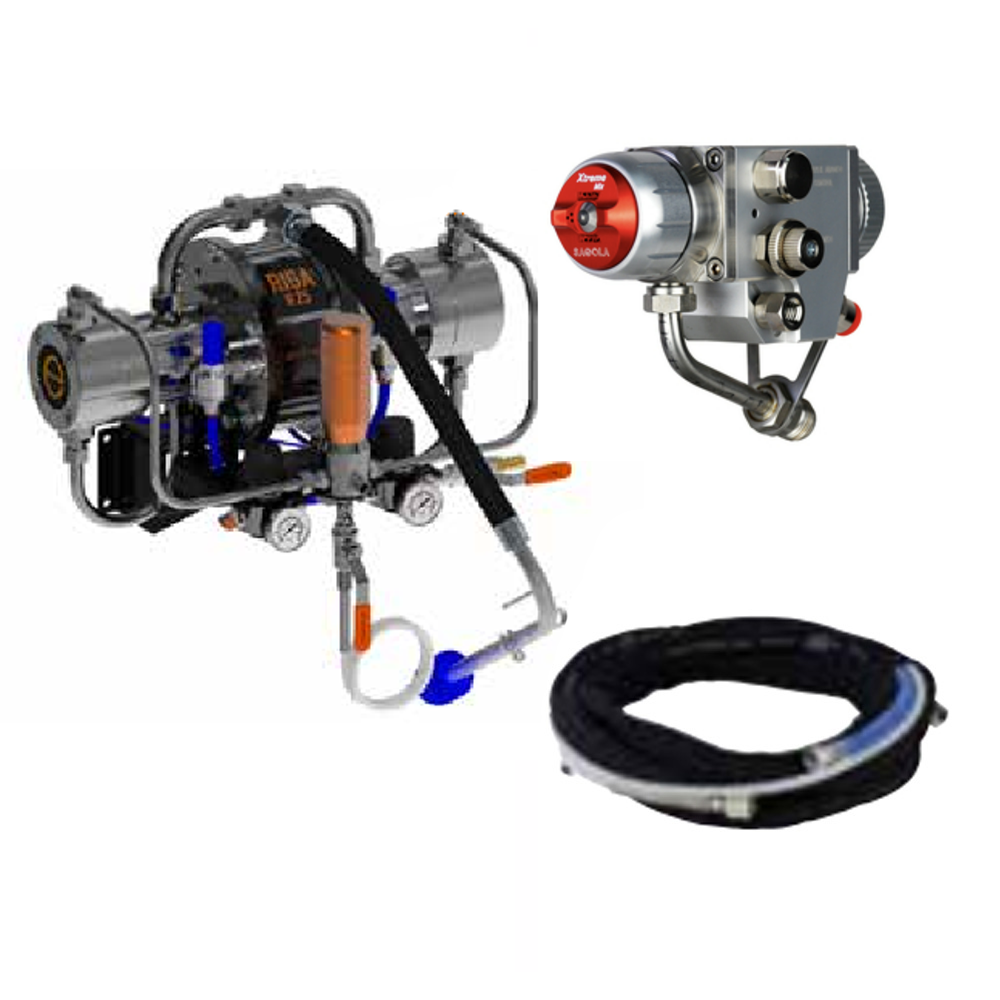

- PSPBH25AAA-T = Sagola RIGA H25 (25:1) Air Assisted Airless Bellows Piston Pump
- Complete Pump Packages, Riga H10, H15 or H25 (includes Trolley & Wall Mount, 7m (22.9 ft) Combined Air & Product Hose with Protective Cover for Air Assisted Airless Systems (other lengths are available to purchase separately), Product Suction Hose & Spray Gun choice of Sagola Mini Xtreme Mix gun with either 11/40 (0.011"/0.28mm, 40 Deg) Air Assisted Airless Spray Tip or 13/40 (0.013"/0.33mm, 40 Deg) Air Assisted Airless Spray Tip or Sagola V7 Mix Robot with 13/40 (0.013"/0.33mm, 40 Deg) Air Assisted Airless Spray Tip:
- RH10-MXM-1140 = Sagola Mini Xtreme Mix with 11/40 (0.011"/0.28mm, 40 Deg) Air Assisted Airless Spray Tip
- RH10-MXM-1340 = Sagola Mini Xtreme Mix with 13/40 (0.013"/0.33mm, 40 Deg) Air Assisted Airless Spray Tip
- RH15-MXM-1140 = Sagola Mini Xtreme Mix with 11/40 (0.011"/0.28mm, 40 Deg) Air Assisted Airless Spray Tip
- RH15-MXM-1340 = Sagola Mini Xtreme Mix with 13/40 (0.013"/0.33mm, 40 Deg) Air Assisted Airless Spray Tip
- RH25-MXM-1140 = Sagola Mini Xtreme Mix with 11/40 (0.011"/0.28mm, 40 Deg) Air Assisted Airless Spray Tip
- RH25-MXM-1340 = Sagola Mini Xtreme Mix with 13/40 (0.013"/0.33mm, 40 Deg) Air Assisted Airless Spray Tip
- RH25-V7S-1340 = Sagola V7 Mix Standard with 13/40 (0.013"/0.33mm, 40 Deg) Air Assisted Airless Spray Tip
- RH25-V7R-1340 = Sagola V7 Mix Robot with 13/40 (0.013"/0.33mm, 40 Deg) Air Assisted Airless Spray Tip
Spare / Replacement Parts - General:
| Part No. | Description |
| PT86465225 | Suction Hose c/w Suction Hose Product Filter |
| PT83660047 | Suction Hose Product Filter |
| PT56418689 | Anti-Pulsation System |
| PT83660029 | Anti-Pulsation System Filter: 100 mesh |
| PT83660030 | Anti-Pulsation System Filter: 60 mesh |
| 54550016 | Analogue Pressure Gauge 0 - 12 bar (0 - 160 psi) |
|
PT82460099 |
Product Return Valve & Hose Replacement Kit |
Spare / Replacement Parts - Piston Cylinder:
| PT30090357 | Bottom Valve Kit |
| PT84260861 | Upper Joint |
| PT30090356 | U-Cup Seal, Pack of 2 |
| PT84660012 | Bellows |
Spare / Replacement Parts - Air Motor:
| PT54250804 | Sagola Riga H25: Air Motor Seal |
| PT56418611 | Actuator Shaft Seal Kit |
| PT56418609 | Pneumatic Shaft U-Cup Seal, Pack of 2 |
Literature:
- Sagola Riga Bellows Pump Data Sheet
- Sagola Riga Vertical Bellows Pump Manual
- Sagola Riga Horizontal Bellows Pump Manual
-
Sagola Mini Xtreme Mix Spray Gun — Data Sheet
- Product Page (Click Here)
-
Sagola V7 Mix Automatic Spray Gun - Manual
- Product Page (Click Here)
LTL Freight Shipping Only. You will be contacted with a freight quote after placing order.
