Sagola TYPHOON 32:1 Airless Pump

$3,540.00

Los gastos de envío se calcularán al momento de pagar.

Part #

Variantes del producto

TYPHOON 32:1 Airless Pump

Manufacturer: Sagola

Part #'s: See Below

Description: Ideal for metal fabricators applying shop primer, epoxy and other protective coatings, the 32:1 ratio Sagola TYPHOON is an affordable airless pump with an excellent cost of ownership.

LTL Freight Shipping Only. You will be contacted with a freight quote after placing order.

Features:

Low air consumption 1.03cfm (29.3lpm) and low maintenance air motor.
Protective air motor housing made from high grade polymer.
Anti-pulse chamber, compatible with waterborne & solvent based products, with stainless steel 80 mesh filter prevents tip blockages and ensures smooth spraying.
Rugged, long lasting pump with tungsten carbide and stainless steel ball and seats.
Easily accessible high pressure dump valve ensures fast material change over and easy pump cleaning.
360° movable inlet fitting for easy access to paint drum.
Fluid and air regulator for consistent control of fluid & air pressure.
Floor locking plates for static use.
Ease of manual handling, less than 11.8kg (26lb) wall mounted or only 24kg (53lb) complete with trolley and suction hose or hopper options.
Easy to access wet cup for monitoring throat seal lubricant.

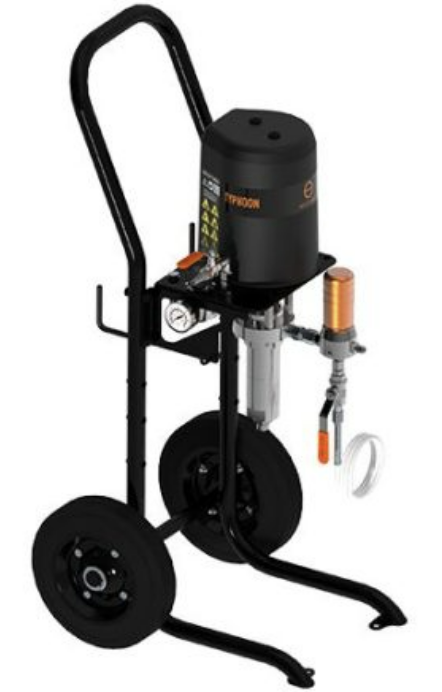

Each pump is fitted onto a rugged & ergonomic trolley with built-in hose & gun rack, for easy movement around site.
Unbolt the bracket and pump from the trolley to wall mount.

Ideal for use with Solvent Based or Water Based materials:

1K Epoxy Coats	Shop Primer Coats	Inorganic Zinc Primers
100% Volume Solid Epoxy Coatings	Anti-Fouling Marine Coatings	Solvent Based Epoxy Coatings
Solvent Based 1K Polyurethane Coatings	Solvent Based 2K (pot life 1 hour and above)	Flame retardant barrier coats (Class B)

Pump Specifications:

Ratio	32:1
Max Fluid Particle Size	0.25mm (10mils)
Fluid Temp Range	40-140 deg F
Fluid Inlet	1/2” BSP Male
Fluid Outlet	1/4” BSP Male
Wetted Parts	Polyamide, Stainless Steel, Aluminum, Hard Chrome
External Pump Parts (Dry)	Pump Body / Cylinder Housing - Aluminum
Air Pressure Operating Range	1-7bar (14-101psi)
Air Consumption at 1450psi	29.3lpm (1.03cfm)
Maximum Air Inlet Pressure	7bar (101psi)
Air Inlet	1/4" BSP Female
Air Exhaust / Silencer Port	1/4" BSP Female
Compressor Requirements (Minimum)	29.3lpm (1.03cfm)
Ambient Air Temp Operating Range	-10 - 60°C (14 - 140°F)
Maximum Fluid Outlet Working Pressure	226bar (3278psi)
Stroke Length	60mm (2.677”)
Maximum Spray Tip Size	0.45m (0.018")
Product Output per Cycle	45 cc (1.54 fl oz)
Free Flow Delivery @ 60 CPM	2.7 lpm (90.7 fl oz)
Weight (Pump only)	8.7kg (19.2lb)
Weight (Wall Mount with Suction Hose)	11.8kg (26lb)
Weight (Cart Mount with Suction Hose)	23kg (50.7lb)
Weight (Wall Mount with Hopper)	11.9kg (26.2lb)
Weight (Cart Mount with Hopper)	23.1kg (50.9lb)
Dimensions (Cart Mount)	439 x 490 x 999mm (17.3 x 19.3 x 39.3")
Dimensions (Wall Mount)	332 x 304 x 535mm (13.07 x 11.97 x 21.06")

Pumps and Mounts (includes Trolley & Wall Mount, 5m (16.4 ft) or 15m (49.2ft) Product Hose for Airless Systems (ID: 6mm x OD: 11.75mm) with 1/4" Swivel Couplings (other lengths are available to purchase separately) & Product Suction Hose (Product Hopper available as a optional accessory):
- PSP32AL-T = Sagola Typhoon 32 (32:1) Airless Piston Pump w/ 5m (16.4 ft) Product Hose
- PSP32AL-T-15 = Sagola Typhoon 32 (32:1) Airless Piston Pump w/ 15m (49.2 ft) Product Hose
5m (16.4 ft) Hose, Complete Pump Packages (includes Trolley & Wall Mount, 5m (16.4 ft) Product Hose for Airless Systems (ID: 6mm x OD: 11.75mm) with 1/4" Swivel Couplings (other lengths are available to purchase separately) & Product Suction Hose (Product Hopper available as a optional accessory):

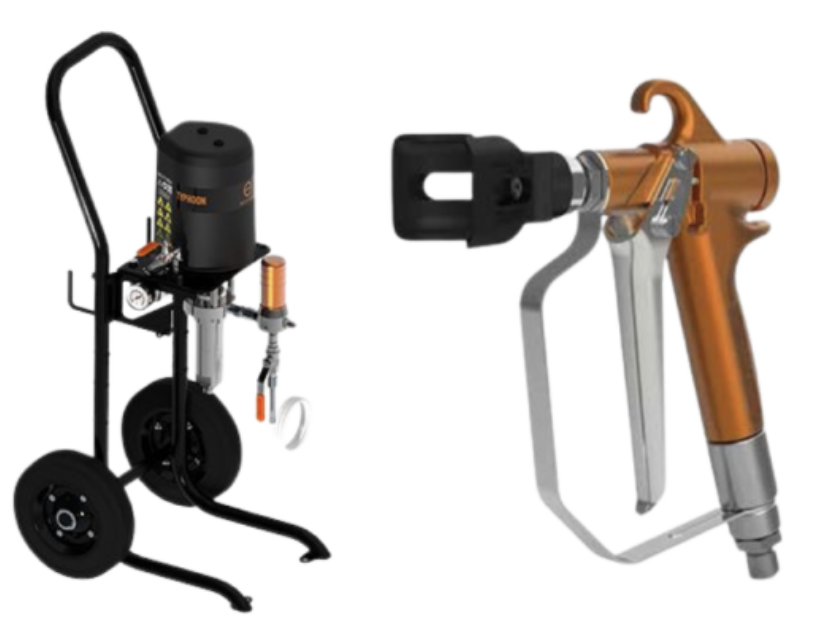

- TY32-PS500 = Sagola PSAM 500 Airless Spray Gun with Reversible Airless Spray Tip Guard (Airless Spray Tip not included)

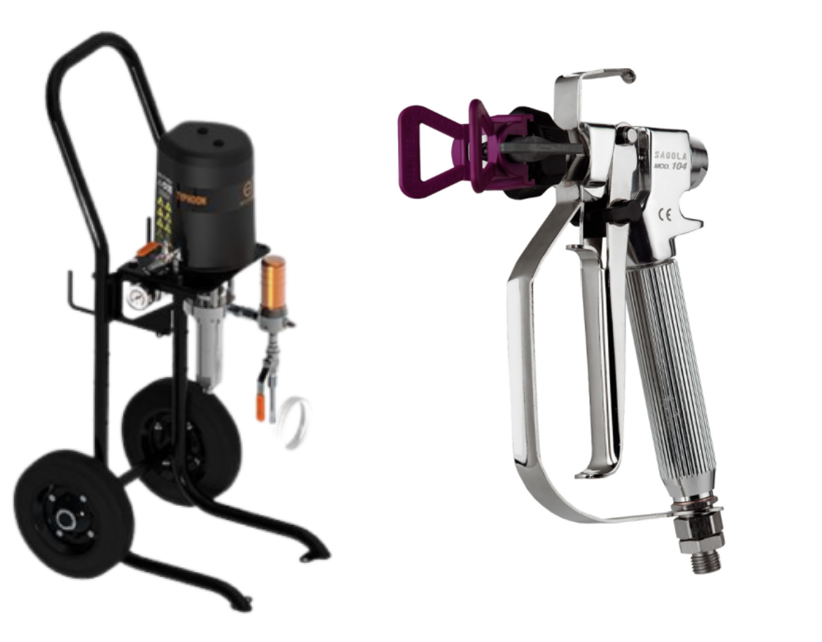

- TY32-PS104 = Sagola PSAM 104 Airless Spray Gun with Reversible Airless Spray Tip Guard (Airless Spray Tip not included)
15m (49.2 ft) Hose, Complete Pump Packages (includes Trolley & Wall Mount,15m (49.2ft) Product Hose for Airless Systems (ID: 6mm x OD: 11.75mm) with 1/4" Swivel Couplings (other lengths are available to purchase separately) & Product Suction Hose (Product Hopper available as a optional accessory):
- TY32-PS500-15 = Sagola PSAM 500 Airless Spray Gun with Reversible Airless Spray Tip Guard (Airless Spray Tip not included)

When selecting a model, the following options are available:

Pump Type: 32 (32:1)

Mount Type: Trolley & Wall

Spray Package Type: No Gun or With Gun

Gun Type: Sagola PSAM 104 Airless Spray Gun with Reversible Airless Spray Tip Guard (Airless Spray Tip not included) or Sagola PSAM 500 Airless Spray Gun with Reversible Airless Spray Tip Guard (Airless Spray Tip not included)

All ordering will be by part #, please refer to them above

Parts and Accessories:

PT30090399 - Hopper Kit & Product Filter
PT5641403X - Combined Air & Product Hose with Protective Cover
PT8646382X - Airless Product Hose with 1/4" Swivel Couplings

Spare / Replacement Parts - General:

Part No.	Description
PT30090100	Piston Seal Packing Oil; 500ml (16.90fl oz)
PT86465206	Suction Hose c/w Suction Hose Product Filter
PT83660047	Suction Hose Product Filter
PT83660001	Hopper Product Filter: 40 Mesh
PT84760004	Hopper Product Filter Spring Clip
PT56413511	Anti-Pulsation System (includes Product Return Valve & Hose Kit)
PT83660009	Anti-Pulsation System Filter: 100 mesh
PT83660010	Anti-Pulsation System Filter: 60 mesh
54550016	Analogue Pressure Gauge 0 - 12 bar (0 - 160 psi)
PT82460099	Product Return Valve & Hose Replacement Kit

Spare / Replacement Parts - Piston Cylinder:

PT56418545	Typhoon 32: Piston Cylinder Lower Packing Set
PT56418546	Typhoon 32: Piston Cylinder Upper Packing Set
PT56418474	Typhoon 32: Piston (Upper) Valve Kit
PT56418543	Typhoon 32: Suction (Lower) Valve Kit
PT54210278	Typhoon 32: Piston Cylinder Sealing Gasket
