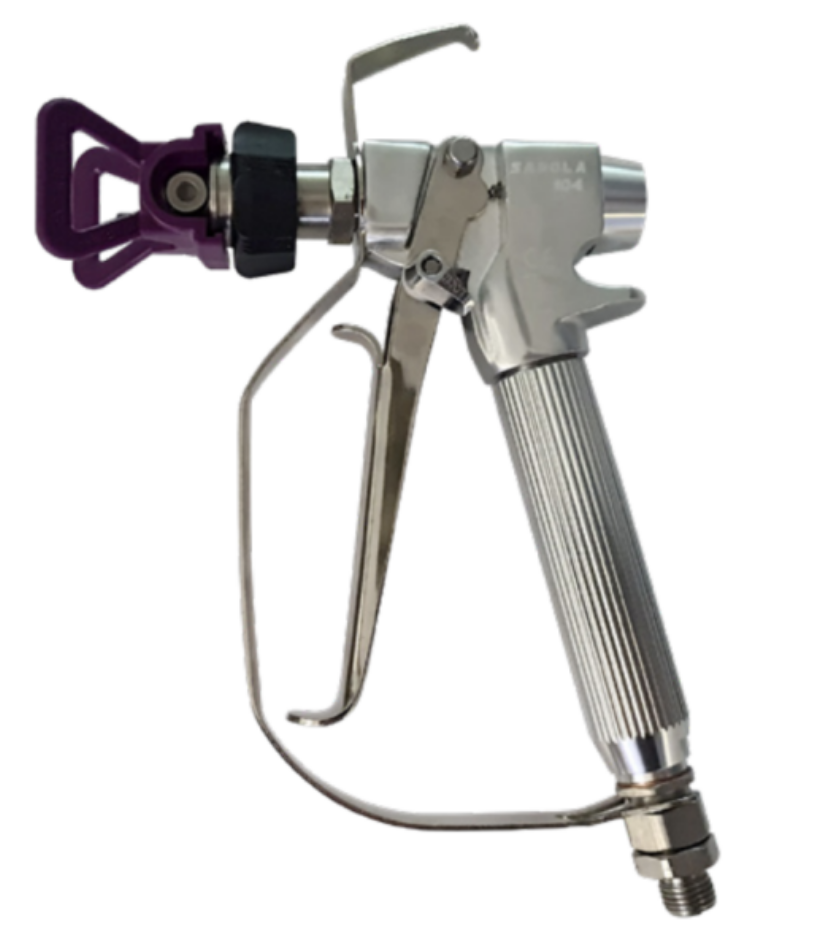

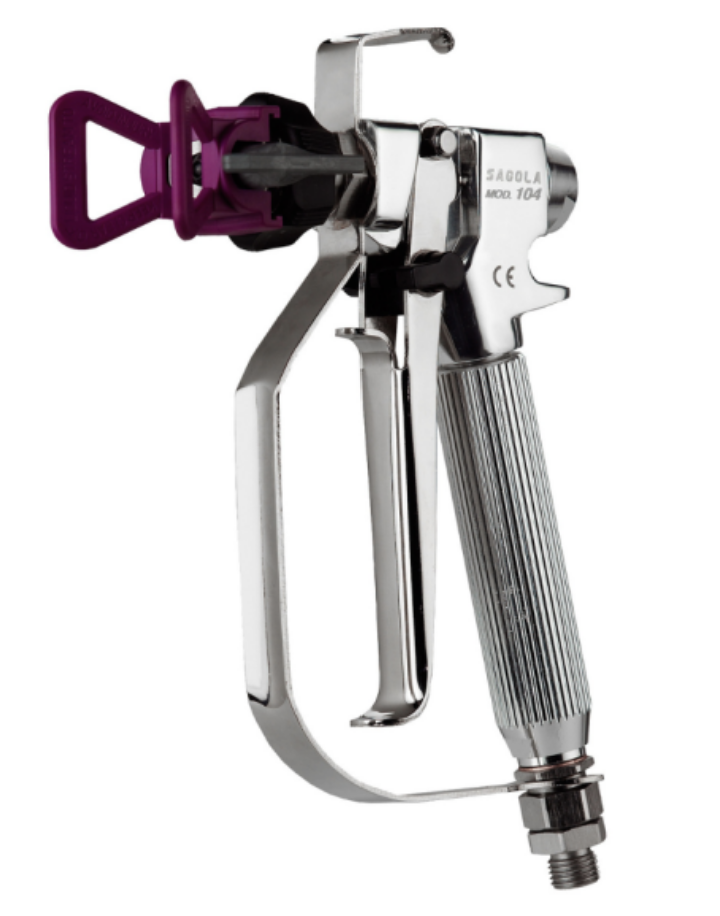

Sagola PG30170109 PSAM 104 Airless Spray Gun with Reversible Airless Tip Spray Guard
Sagola PG30170109 PSAM 104 Airless Spray Gun with Reversible Airles...
PSAM 104 Airless Spray Gun with Reversible Airless Tip Spray Guard
Manufacturer: Sagola
Part #: PG30170109
Description: Designed for pneumatic and electric airless systems up to 250 bar (3,626psi), ideal for all types of medium viscosity products.
Packing List:
Sagola 104 PSAM Pressure Spray Gun with Spray Gun Product Filter – 100 Mesh (Yellow x 1), Cleaning Needle, Wrench (x2) & Reversible Airless Spray Tip Guard. (Airless Spray Tip not included).
Applications:
-------------->Order Fixed Spray Tips Here<--------------
Features:
• Ideal for continuous use lightweight and comfortable for use over long periods
• Robust and durable seats and closures manufactured in tungsten carbide
• Easy to use incorporates a ¼" revolving coupling and filter holder
Specifications:
| Dimensions: | 210 x 19 x 130 mm (8.27 x 0.75 x 5.12”) |
| Weight: | 464g (1.02lbs) |
| Product Inlet Coupling | 6.35mm (1/4”) BSP Male |
| Product Filter | White (50 Mesh); Yellow (100 Mesh); Red (200 Mesh) |
| Maximum Working Pressure | 250bar (3,626psi) |
| Average Sound Pressure Level | 80 dB |
| Materials in contact with product | Anodized aluminum, chromed aluminum, POM, INOX, Teflon and Nylon |
| Packing List: | Sagola 104 PSAM Pressure Spray Gun with Spray Gun Product Filter - 100 Mesh (Yellow x 1), Cleaning Needle, Wrench (x2) & Reversible Airless Spray Tip Guard. (Airless Spray Tip not included). |
Spare Parts & Accessories:
| Ref. No. | Part No. | Description |
| PT56418230 | Sagola 104 PSAM Product Needle & Nozzle Kit (including washers) | |
| 12/1 | PT30010008 | Spray Gun Product Filter (White) 50 Mesh, Pack of 10 |
| 12/2 | PT30010009 | Spray Gun Product Filter (Yellow) 100 Mesh, Pack of 10 |
| 12/3 | PT30010010 | Spray Gun Product Filter (Red) 200 Mesh, Pack of 10 |

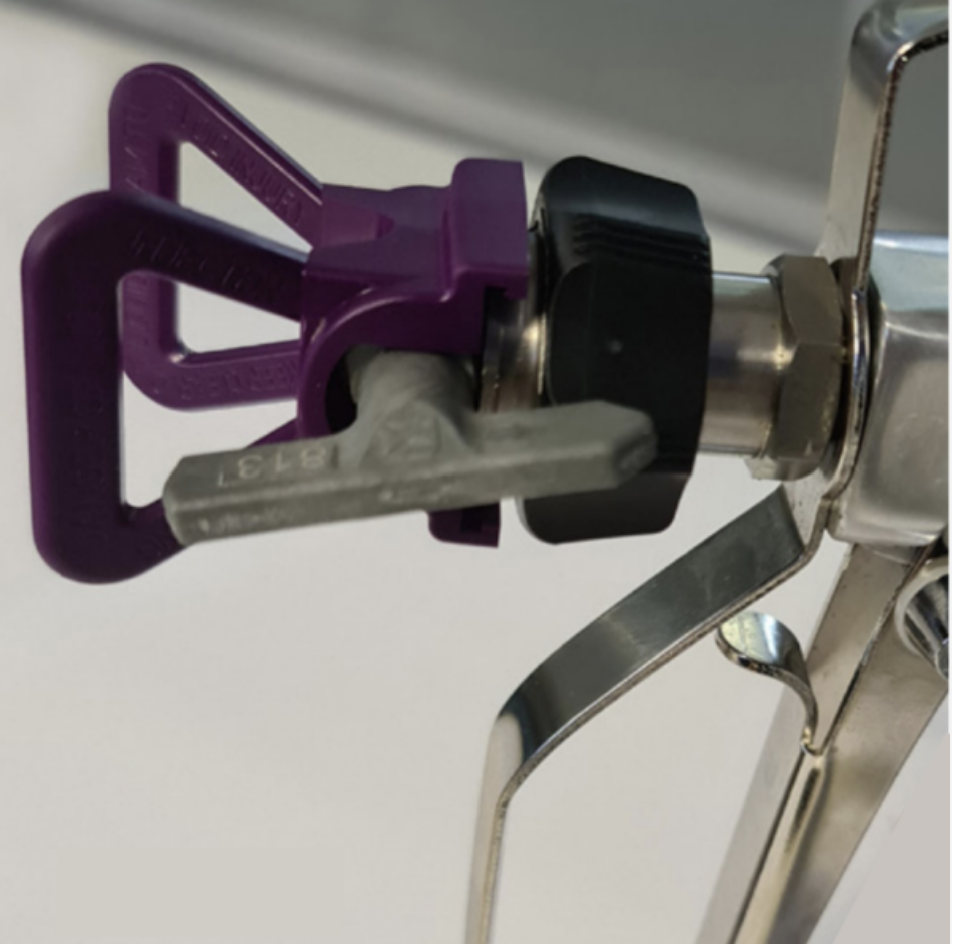

| PT81461101 | Reversible Airless Tip Spray Guard | |
| PT56418698 | Fixed Airless Tip Spray Guard | |
| 15 | PT49000353 | Sagola 104 PSAM Gracco RAC Tip Adapter |
| 40000086 | Spray Gun Cleaning Kit | |
| 56418589 | Lubricant Grease (SAE 10), 100ml (3.38fl oz) | |
| PT40000245 | Magnetic Stand for One Spray Gun | |
| PT40000246 | Magnetic Stand for Two Spray Guns | |
| PT30010302 | Airless Spray Gun Extension: 300mm | |
| PT30010303 | Airless Spray Gun Extension: 500mm | |
| PT30010304 | Airless Spray Gun Extension: 1000mm | |
| 70000010 | Spray Gun & Accessories Locker |
Literature:
