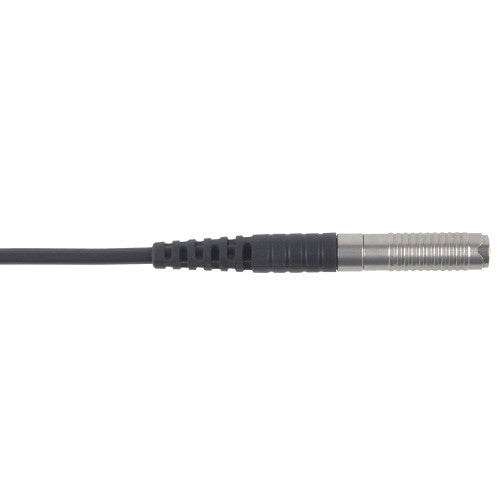

Straight Dual Ferrous/Non-Ferrous (FNF) Substrate Probe | Scale 1 | Elcometer 456

Straight Dual Ferrous/Non-Ferrous (FNF) Substrate Probe | Scale 1 | Elcometer 456

Manufacturer: Elcometer

Part #: T456CFNF1S

Description:Designed to work with any of our Elcometer 456 Separate Gauges.

This straight probe can be used to measure the coating on both flat and curved surfaces.

Specifications:

• Range: 0-60 mils (0-1500µm)
• Accuracy*: ±1-3% or ±0.1 mil (±2.5µm)
• Resolution: 0.01 mil: 0-5 mils; 0.1mil: 5-60 mils (0.1µm: 0-100µm; 1µm: 100-1500µm)
• Minimum convex surface radius 10mm (0.39")
• F Mode: 4mm (0.16")
• N Mode: 26mm (1.02")
• Minimum concave surface radius 12.5mm (0.49")
• Minimum headroom 88mm (3.46")
• Minimum sample diameter 4mm (0.16")
• F Mode: 4mm (0.16")
• N Mode: 6mm (0.24")
