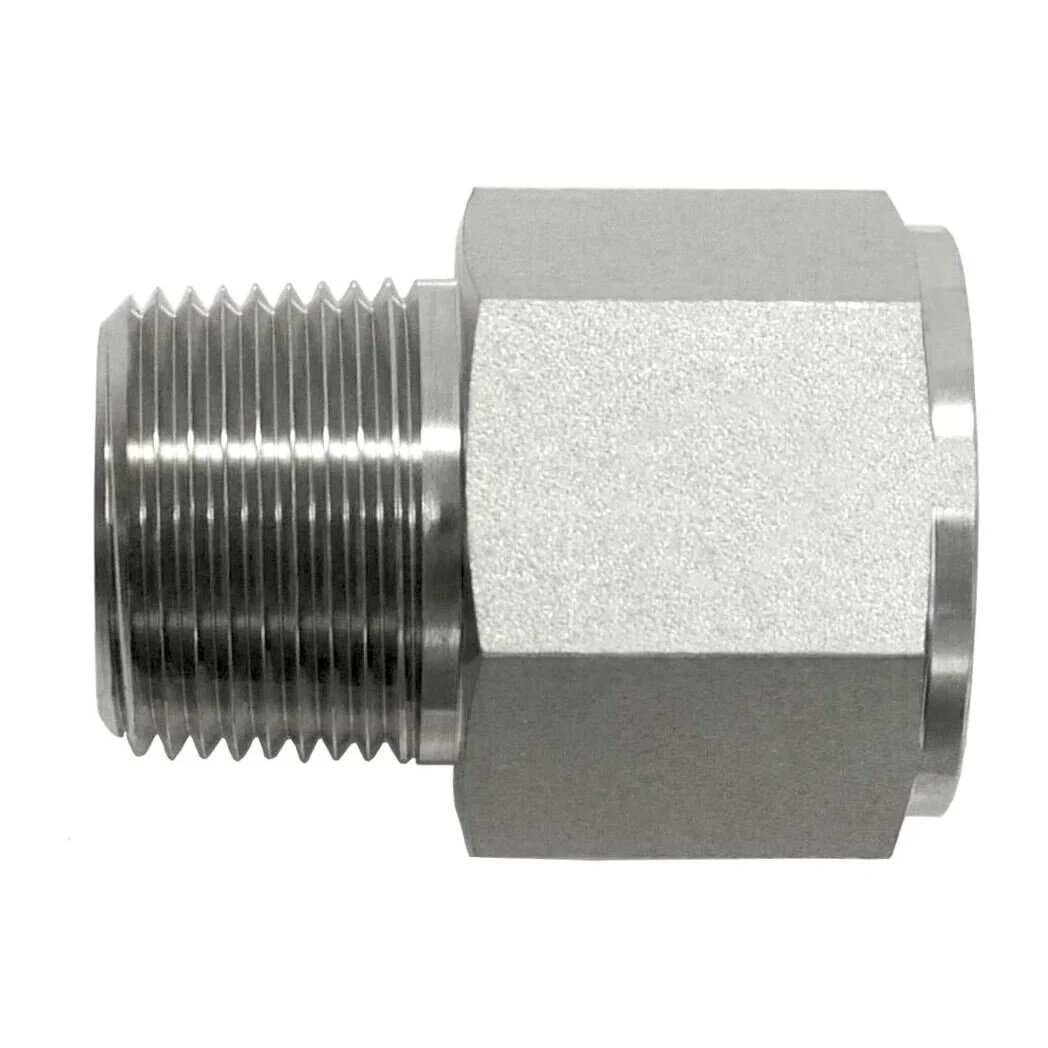

7033-04-04-SS Adapter
Manufacturer: Total Finishing Supplies
Part #: 7033-04-04-SS
Description: Male NPT 1/4"-18 to Female BSPP 1/4"-19 Adapter, straight, stainless steel.
Specifications:
| Thread B1 Type: | MALE NPT |
| Thread B1 Size: | 1/4-18 |
| Thread Drill B1 (mm): | 7.1 |
| Thread B1 Specification: | ANSI B1.20.1 |
| Thread B2 Type: | FEMALE BSPP (G) |
| Thread B2 Size: | 1/4-19 |
| Thread Drill B2 (mm): | 11.6 |
| Thread B2 Specification: | ISO 1179, ISO 8434-6, BS 5200 |
| Body Hex (mm): | 19.1 |
| Overall Length (mm): | 33.7 |
| Shape: | Straight |
| Body Material: | Stainless Steel |
| Raw Material Type: | Straight Stainless Steel |
| Weight lbs: | 0.100 |
| Max. Dynamic Pressure: | 6,000 psi |
ALL FITTINGS, VALVES, & ADAPTERS ARE NOT RETURNABLE. ALL SALES ARE FINAL
