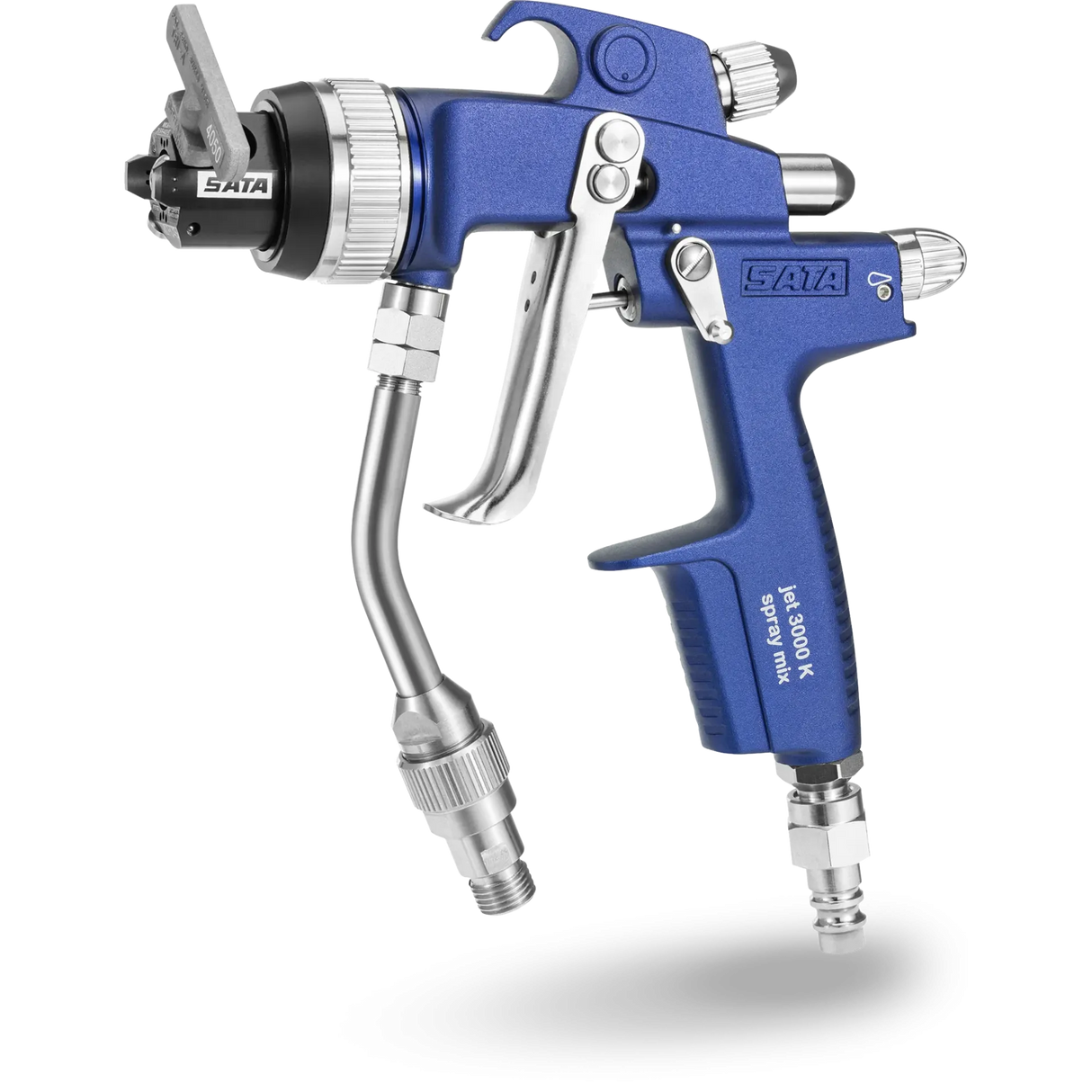

SATAjet 3000 K Spray Mix Spray Gun
SATAjet 3000 K Spray Mix Spray Gun
SATAjet 3000 K Spray Mix Spray Gun
Manufacturer: SATA
Part Number: 1200XX
Description: SATAjet 3000 K spray mix with paint tube, strainer 100 msh. Nozzles purchased separately in table below.
The SATAjet 3000 K spray mix is a high-pressure spray gun with supporting air atomization, ideally suited for the application of large quantities of highly viscous materials.
With the "spray mix technology," the paint material is applied at high pressure, creating a preformed airless spray fan. Through the air cap, compressed air is fed to this airless spray fan, which helps to shape it and enables an even droplet distribution. The result is a homogeneous material application for the highest surface quality.
Log In or Register to See Pricing
Total Finishing Supplies is an authorized SATA Distributor. Beware of sites that claim to offer genuine SATA items. They may not be authorized and you may be buying a fake or an item that won't be covered under SATA's warranty.
Product Benefits:
-
Ideally suited for coating large areas in the furniture and metalworking industries
-
To be used in combination with high-pressure, air assisted pumps
-
Round/flat spray control
-
Air micrometer
-
High application efficiency at high finish quality and low overspray,
- Wide range of nozzles including an inverse nozzle for the perfect adjustment of material and object
Technical Data
Max. Inlet Air Pressure:
Max. Material Pressure:
Weight Including Material Filter:
Cup Connection Type:
Nozzle Technology:
Quick Change:
SATA adam compatible:
145 PSI
3,625 PSI
23oz
QCC
spray mix
✓
✓
Spray Mix Gun
12006—SATAjet 3000 K spray mix with paint pipe, strainer 100 mesh, without paint nozzle (specify material nozzle size)
Spray Mix Gun With Reversing Switch
120014—SATAjet 3000 K spray mix with paint pipe, strainer 100 mesh, reversing switch, without inversion nozzle (specify reversing nozzle size)
207530—Reversing switch kit, without reversing nozzle for SATAjet 3000 K spray mix
Using a reversing nozzle requires a one time purchase of the reversing switch. Part Number 207530
| Spare Parts: |
 |
| Part number | Description |
|---|---|
| 12260 | Material strainer 60 msh for SATA material filter |
| 12278 | Material strainers 100 msh for SATA material filter |
| 18341 | Compression spring for paint needle |
| 27813 | Air piston spring |
| 74856 | SATA material strainer set 200 msh, consisting of 4 strainers 20933, 2 strainer holders 77503, and 1 screw 26393 |
| 94961 | Air micrometer / air flow control knob |
| 97824 | Air distribution ring |
| 98418 | Closing screw |
| 98434 | Pre-nozzle |
| 98459 | Air cap, round/flat fan |
| 98509 | Application |
| 98525 | Seal retainer |
| 98590 | Material connection |
| 98608 | Paint pipe and material filter 100 msh |
| 98681 | Trigger kit |
| 98699 | Tool kit |
| 98764 | Nozzle set, consisting of pre-nozzle and needle tip |
| 98772 | Paint needle, consisting of pre-nozzle and needle tip |
| 98806 | Round/flat spray control |
| 120071 | Trigger lock set |
| 120261 | Reversing switch sealing unit |
| 133926 | Trigger sleeve kit |
| 133942 | Seal retainer |
| 133967 | Threaded pin |
| 133991 | Air piston head |
| 134098 | Air connection piece |
| 207530 | Retrofitting set reverser for SATAjet 3000 K spray mix without reversing nozzle |
| 228049 | Air cap ring with protection against accidental contact |
| 228056 | Air cap ring with contact protection for SATAjet 3000 K spray mix with reversing nozzle |
Tool Kit—1006966
-
Universal Wrench
-
Cleaning Brush
-
Extraction Tool
Repair Kit—98707
SATAjet K 1800 spray mix Nozzles
|
Nozzle No. |
Part No. |
° mm |
° Inch |
Angle |
Width |
L/min@70bar |
Strainer |
Strainer |
|
1840 |
0.18mm |
0.007 in |
40 ° |
18 cm |
0.16 l/m |
|
|
|
|
2325 |
0.23mm |
0.009 in |
25 ° |
14 cm |
0.23 l/m |
200 mesh |
85 μm |
|
|
2350 |
0.23mm |
0.009 in |
50 ° |
22 cm |
0.23 l/m |
200 mesh |
85 μm |
|
|
2360 |
0.23mm |
0.009 in |
60 ° |
24 cm |
0.23 l/m |
200 mesh |
85 μm |
|
|
2825 |
0.28mm |
0.011 in |
25 ° |
14 cm |
0.30 l/m |
200 mesh |
85 μm |
|
|
2850 |
0.28mm |
0.011 in |
50 ° |
22 cm |
0.30 l/m |
200 mesh |
85 μm |
|
|
2865 |
0.28mm |
0.011 in |
65 ° |
26 cm |
0.30 l/m |
200 mesh |
85 μm |
|
|
3325 |
0.33mm |
0.013 in |
25 ° |
14 cm |
0.45 l/m |
100 mesh |
150 μm |
|
|
3350 |
0.33mm |
0.013 in |
50 ° |
23 cm |
0.45 l/m |
100 mesh |
150 μm |
|
|
3365 |
0.33mm |
0.013 in |
65 ° |
28 cm |
0.45 l/m |
100 mesh |
150 μm |
|
|
3375 |
0.33mm |
0.013 in |
75 ° |
32 cm |
0.45 l/m |
100 mesh |
150 μm |
|
|
3390 |
0.33mm |
0.013 in |
90 ° |
40 cm |
0.45 l/m |
100 mesh |
150 μm |
|
|
3825 |
0.38mm |
0.015 in |
25 ° |
15 cm |
0.61 l/m |
100 mesh |
150 μm |
|
|
3850 |
0.38mm |
0.015 in |
50 ° |
25 cm |
0.61 l/m |
100 mesh |
150 μm |
|
|
3882 |
0.38mm |
0.015 in |
82 ° |
34 cm |
0.61 l/m |
100 mesh |
150 μm |
|
|
4650 |
0.46mm |
0.018 in |
50 ° |
25 cm |
0.95 l/m |
60 mesh |
250 μm |
|
|
4682 |
0.46mm |
0.018 in |
82 ° |
35 cm |
0.95 l/m |
60 mesh |
250 μm |
|
|
5370 |
0.53mm |
0.021 in |
70 ° |
33 cm |
1.28 l/m |
60 mesh |
250 μm |
|
|
6050 |
0.60mm |
0.024 in |
50 ° |
31 cm |
1.59 l/m |
60 mesh |
250 μm |
