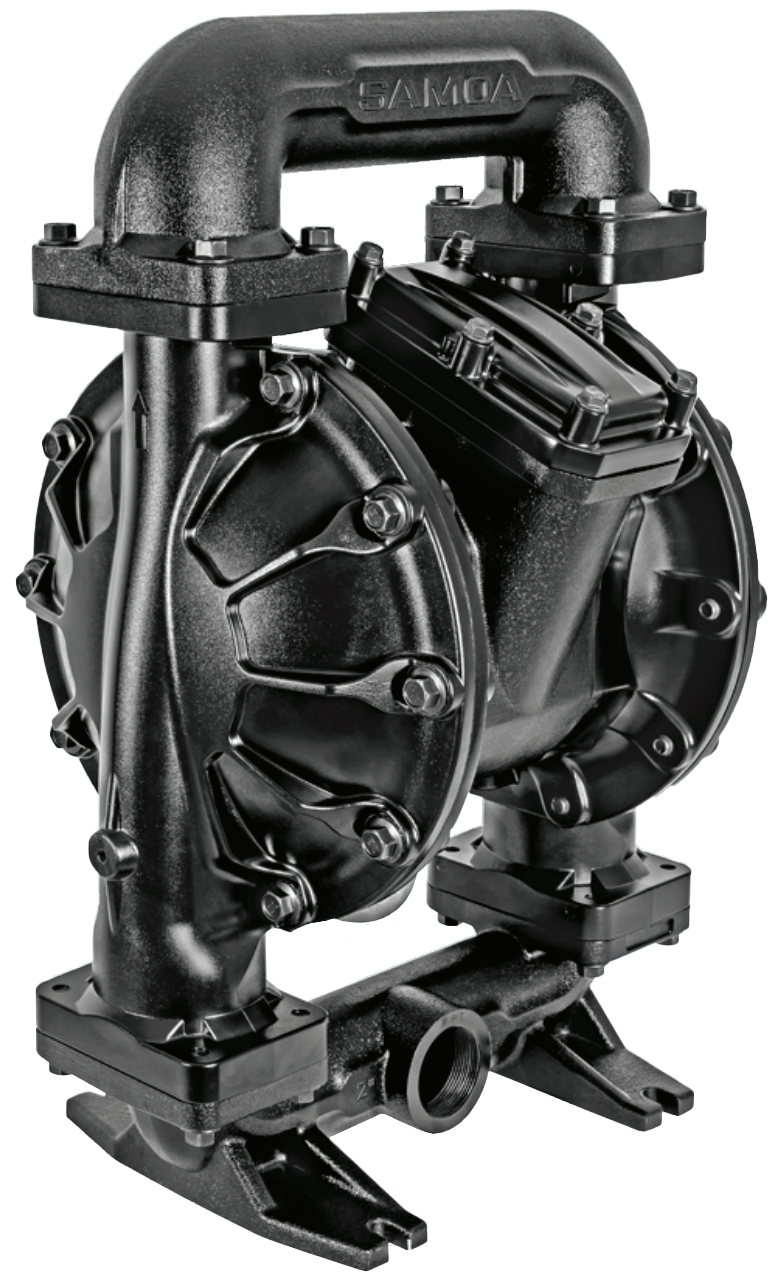

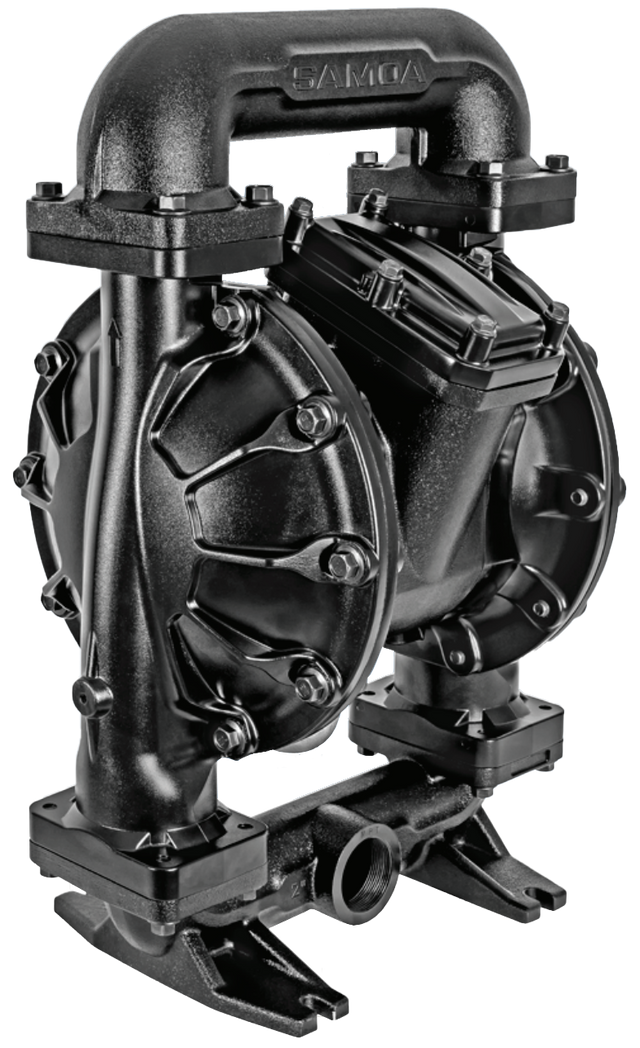

Samoa UP20 Metallic Pivot Series 2" Air-Operated Double Diaphragm Pump
Regular price
Unit price
/
Unavailable
Shipping calculated at checkout.
Samoa UP20 Metallic Pivot Series 2" Air-Operated Double Diaphr...
Regular price
Unit price
/
Unavailable
UP20 Pivot Series 2" Metallic Air-Operated Double Diaphragm Pump
Manufacturer: Samoa
Part #: UP20A-NFC-MMA
Description: Cast Iron/Santoprene, 172 Gal/Min Pump. The new SAMOA UP20 pump combines a Universal design with a unique frictionless Pivot-Shaft Air Valve to provide maximum performance and energy efficiency, exceeding market expectations.
Features:
- Higher Efficiency - Maximum fluid flow with reduced air consumption.
- Increased Reliability - No stall, no icing, reliable start-up and longer air valve and diaphragms life.
- Easy Servicing - Simplified maintenance and cleaning. Components designed for long life and reliability.
- Connectivity - Can be cofigured to connect a Smart Pump-Controller System to actuate, control, and monitor your pumps.
Materials:
| Central Body and Air Chambers: | Aluminum |
| Fluid Chambers and Manifolds: | Ductile Iron |
| Hardware Bolts: | Carbon Steel |
| Valve Seats: | Santoprene |
| Valve Balls: | Santoprene |
| Diaphragm Type and Material: | Conventional - Santoprene |
Specifications:
| Pressure Ratio | 1:1 |
| Maximum Free Delivery | 172 US gal/min |
| Air Pressure Range | 1.5 - 8 bar (20 - 120 psi) |
| Max. Size Solids in Suspension | 6.4 mm (1/4") |
| Max. Dry Suction Lift | 5 m (16') |
| Max. Wet Suction Lift | 8 m (26') |
| Displacement Per Cycle | 5.1 L (1.35 gal) |
| Fluid Inlet/Outlet Connections | 2" NPTF Threaded |
| Air Inlet Connection | 3/4" NPTF |
| Air Exhaust Connection | 1 1/2" NPTF |
| Sound Level | 85 dB (A) @ 50 Cycles/Min @ 5 bar |
| Weight | 163lbs |
Parts and Accessories:
| Part No. | Description |
|
UP20R-WP-00A |
Diaphragm Kit |
|
UP20R-WP-0M0 |
Ball Kit |
|
UP20R-WP-M00 |
Seat Kit |
|
UP20R-AM-1A0 |
Air Valve Module |
| UP20R-AM-200 | Air Sensor Kit |
|
UP20R-AM-300 |
Air Shaft Kit |
|
UP20R-HP-6S0 |
Air Piston Kit |
|
UP20R-HP-7S0 |
Fluid Piston Kit |
|
UP20R-HP-1FN |
Inlet Manifold |
|
UP20R-HP-2FN |
Outlet Manifold |
|
UP20R-HP-3F0 |
Fluid Cover |
|
UP20R-HP-5A0 |
Central Body |
|
UP20R-AM-400 |
Air Motor Seals Kit |
|
UP20R-HP-8A0 |
Central Body Air Cap Kit |
|
UP20R-HP-4A0 |
Air Cover |
|
UP20R-AM-500 |
Air Exhaust Kit |
