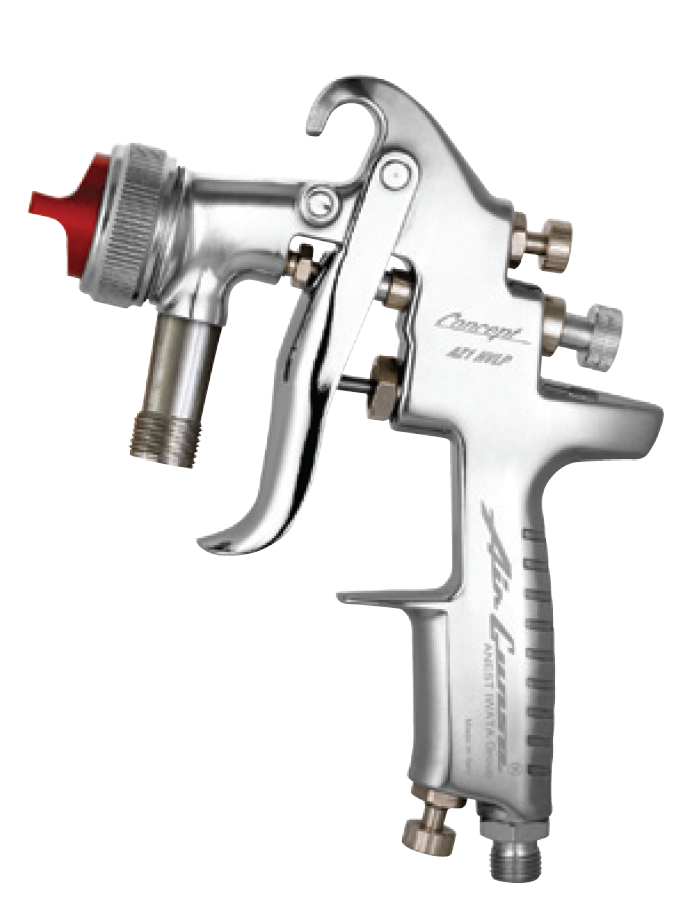

Anest Iwata AZ1 Concept HVLP Pressure Spray Gun
Anest Iwata AZ1 Concept HVLP Pressure Spray Gun
Anest Iwata AZ1 Concept HVLP Pressure Spray Gun
Manufacturer: Anest Iwata
Part Number: 935X
Description: The AZ1-HVLP CONCEPT pressure gun is part of the Air Gunsa line. It’s an excellent entry level choice for fleet applications. This versatile gun offers a range of air caps that deliver a long flat pattern even when spraying heavy coatings.
Features:
• HVLP spray gun with low operating air pressure
• Specially designed air cap delivers a long spray pattern with extra fine atomization and very little overspray
• Experienced and novice painters can achieve a consistent, high quality finish at budget cost
• Easy maneuverability and improved ergonomics
• Compatible with ANEST IWATA pressure pots and diaphragm pumps
Specifications:
| Ref. No. | Part No. | Description | Notes |
| 1 | 9370 | AIR CAP SET | 1.0mm - 2.0mm |
| 1 | 9371 | AIR CAP SET | 2.5mm - 3.5mm |
| 2+9 | 938X | FLUID NOZZLE + NEEDLE SET | 1.0mm - 3.5mm |
| 3 | N/A | NOZZLE HOLDER | |
| 5 | 93842601 | PATTERN ADJUSTMENT SET | |
| 6 | 9145B | FLUID NEEDLE ADJ. KNOB | |
| 7 | 9135 | NEEDLE ADJ. GUIDE | |
| 8 | 9155B | NEEDLE SPRING | |
| 10 | 9134 | NEEDLE PACKING NUT | |
| 11 | 9211 | AIR VALVE SET | |
| 11-1 | 9156B | AIR VALVE SPRING | |
| 11-2 | 9146B | AIR VALVE | |
| 11-3 | 9148B | AIR VALVE SEAT | |
| 12 | 9133 | TRIGGER STUD | |
| 13 | 9256 | TRIGGER | |
| 14 | 93845531 | AIR ADJUSTMENT SET | |
| 15 | FLUID NIPPLE G3/8” | ||
| 16 | 9196 | SCREW | |
| 16-1 | 9257 | PLUG | |
| 17 | 9213 | AIR NIPPLE G1/4” | |
| 19 | 9324 | PAINT TUBE (OPT. FOR AZ1 HTE 2P) | |
| C | 9258B | PACKING SET | (3 pcs./1pk) |
| D | 9259 | SLIDE RING KIT | (10 pcs./1pk) |
