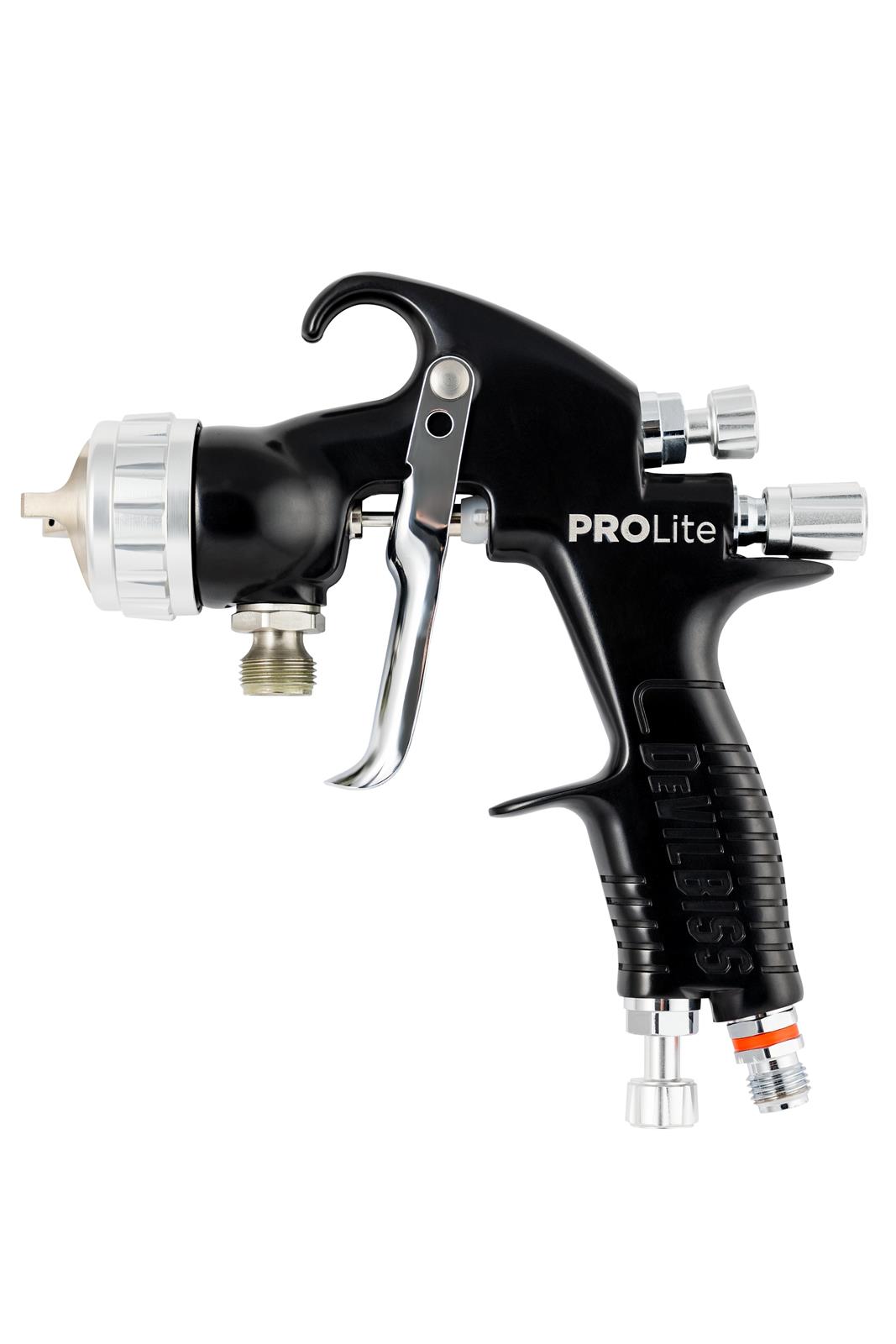

DeVilbiss ProLite Pressure Feed Spray Gun Kit

DeVilbiss ProLite Pressure Feed Spray Gun Kit

Manufacturer: DeVilbiss

Part #: 905132

Description: The DeVilbiss ProLite series offers advanced atomization technologies for fine-finish applications. The ProLite is extremely durable, and fully coated inside and outside for high corrosion resistance.

Features:

• HVLP and High Efficiency air caps are available.
• 1.0, 1.2, and 1.4mm Needle + Nozzle sizes.
• Compatible with Waterborne and Solvent-Borne coatings.

Air Cap Specifications:

Air Cap	Technology	Pattern Size	Fluid Flow	Air Consumption
TE40	High Efficiency	11-13"	5-16 oz/min	13-19 CFM
HV40	HVLP	11-13"	5-12 oz/min	17 PSI @ 10.5 CFM

Kit includes: HV40 Aircap, TE40 Aircap, 1.0, 1.2, 1.4mm Needle/Nozzle Sets

Parts and Accessories:

Ref. No.	Part No.	Description
1	905280	Retaining Ring Sub Assembly
2	905208	Spring Clip (kit of 5)
3	PRO-103-XX40	Air Cap & Retaining Ring
4	PRO-205-XX-K	Fluid Nozzle
5	905297	Baffle Plate
6	905287	Gasket (kit of 2)
7	905303	Spray Head Kit
8	905294	Packing, Spring & Packing Nut Kit
9	905282	Air Valve Assembly
10	905301	Air Valve Body
11	PRO-320-XX-XX-K	Fluid Needle
12	905283	Needle Spring Kit
13	905302	Fluid Adjusting Knob
14	905000	Circlip (kit of 5)
15	-	Circlip
16	-	O Ring
17	-	Spreader Valve Pin
18	905276	Airflow Valve
19	905305	Air Inlet
20	905289	Color ID Ring Kit (4 colors)
21	-	Trigger Screw
22	-	Trigger Stud
23	905306	Trigger, Stud & Screw Kit
24	905275	Spreader Valve Assembly
25	905001	Fluid Inlet Kit
