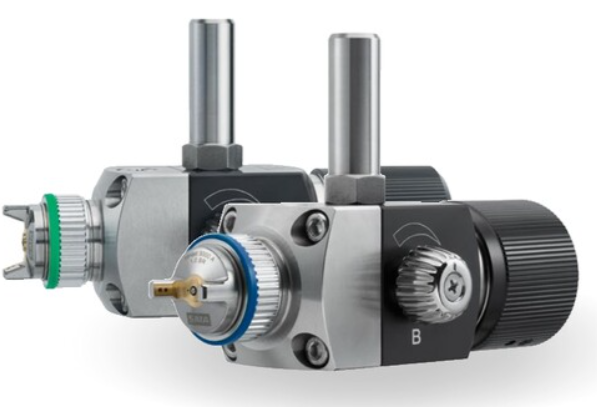

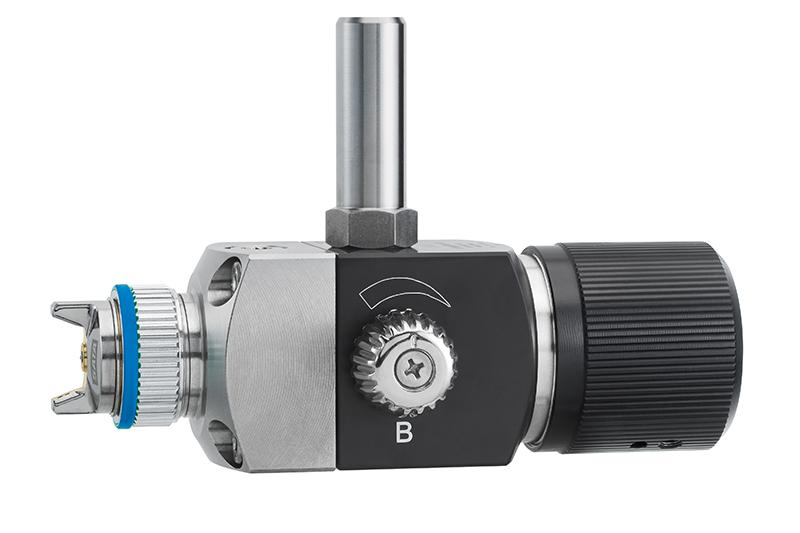

SATAminijet 1000 A; RP
Manufacturer: SATA
Part #: 203XXX
Description: Internally controlled high-performance gun for automatic painting machines and painting robots. Nozzle system for fine coating results on small surfaces and for complex detailed coatings.
Product Benefits
- Simple integration into system control by integrated pre- and post-air delay
- Circulation mode
- Stepless regulation of the fan geometry
- Process reliability through self-adjusting sealing elements in the air and material area
- Low maintenance requirements, easy replacement of components
- Finest atomisation for detail coatings
- Ideal for thin layers
- Homogeneous spray fan with maximum application efficiency through proven RP or HVLP technology
RP: Extra Fast - RP spray guns stand for maximum working speed with optimized high-pressure technology and low overspray.
| Technical Data: | RP |
| Inlet Pressure: | 36-45 psi |
| Air Consumption: | 7 CFM |
| Air Pressure Min. | 45 psi |
| Fluid Pressure Max. | 72 psi |
| Fluid Temp Max. | 176 F |
Parts and Accessories:
| Part No. | Description |
| 1594 | Teflon Seal |
| 3418 | Washer, 3.7 DIN 125 Brass |
| 3574 | Compression Spring |
| 11544 | Compression Spring For Needle |
| 54221 | Spindle Complete |
| 64071 | Seal Retainer |
| 64105 | Control Piston |
| 64147 | Washer |
| 64154 | Hollow Screw |
| 64709 | Sleeve |
| 64766 | Spacer |
| 64808 | Spring Compression |
| 64857 | Seal Retainer, Complete |
| 64865 | Control Piston, Complete |
| 64873 | End Cap, Complete |
| 64881 | Control Cap, Complete |
| 70789 | O-Ring 5x2 |
| 73783 | Hex Socket Screw |
| 74179 | Inner Material Seal |
| 74690 | Cylindrical Screw |
| 127399 | Air Dist. Ring |
| 133934 | O-Ring 11x1 |
| 140574 | Control Knob w/ Screw |
| 144618 | Mounting Post 15mm |
| 170787 | Seal Retainer, Cpl |
| 203588 | Nozzle Head Cpl |
