Binks Gemini II Series Double Diaphragm Pumps

Gemini II Series Double Diaphragm Pumps

Manufacturer: Carlisle Binks

Part #: See Table

Description: The Binks Gemini II Diaphragm Pumps are ideal for a variety of materials and viscosities. Gemini II pumps can be used in applications including Wood, General Metal Fabrication, and Adhesives. The Gemini II 1/2″ acetal short stroke pump is ideal for a wide variety of spray applications. This pump is capable of 27% more fluid delivery per stroke compared to the Gemini I pump series. It also has lower pulsation compared to the competition and the Gemini I pump series.

Gemini II pumps feature a double diaphragm design, providing a 1:1 fluid ratio to compressed air supply.

Features:

• Pumps shear-sensitive materials. Low internal velocities and gentle pumping action does not shear coatings
• Runs dry without damage or heat build-up
• Variable flow and pressure regulate the inlet air supply to adjust the pump flow from zero to maximum rated capacity
• Fully groundable
• Seal-less. No mechanical seals or packing to leak
• Pumps high to low viscosity materials

5 models available:

1. ½" Conductive Acetal Body, Stainless Steel Balls/Seats, PTFE Diaphragms.
   Part #: 41-818836 Manual

2. ½" Stainless Steel Body, Stainless Steel Balls/Seats, PTFE Diaphragms.
   Part #: 41-818830 Manual

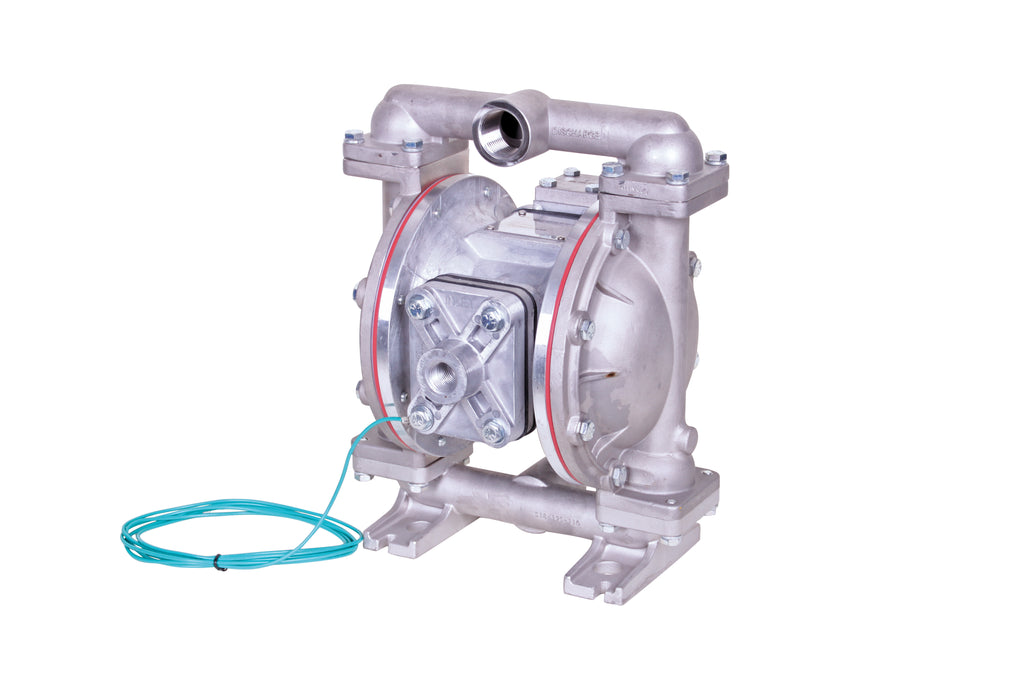

3. 1" Aluminum Body, Stainless Steel Balls/Seats, PTFE Diaphragms.
   Part #: 41-818820 Manual
4. 1" Stainless Steel Body, Stainless Steel Balls/Seats, PTFE Diaphragms.
   Part #: 41-818822 Manual

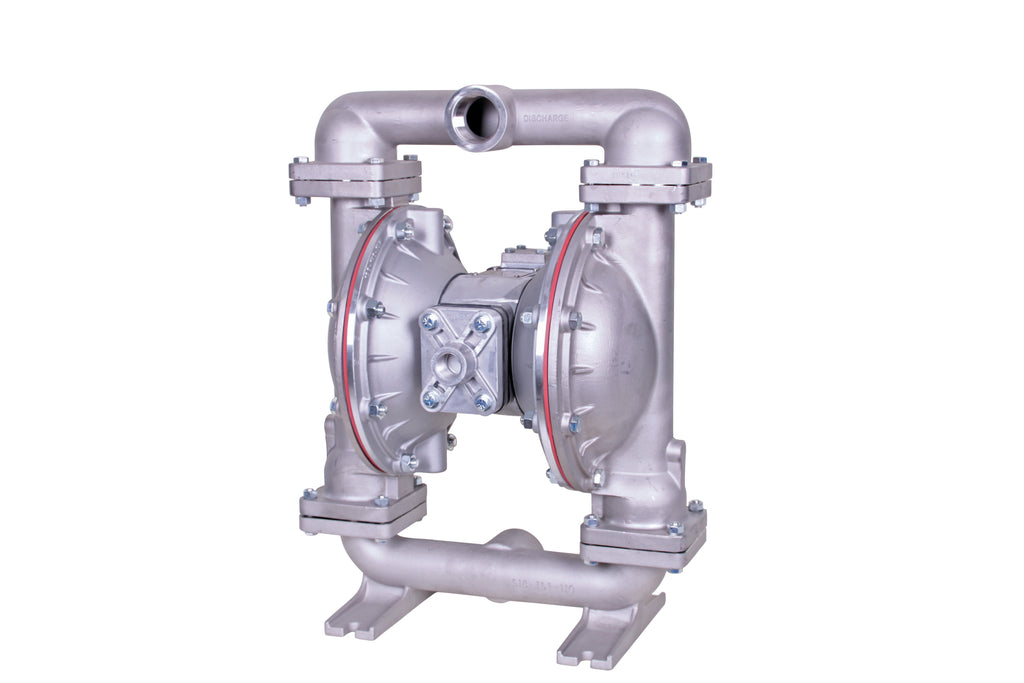

5. 1 ½" Stainless Steel Body, Stainless Steel Balls/Seats, PTFE Diaphragms.
   Part #: 41-818810 Manual
