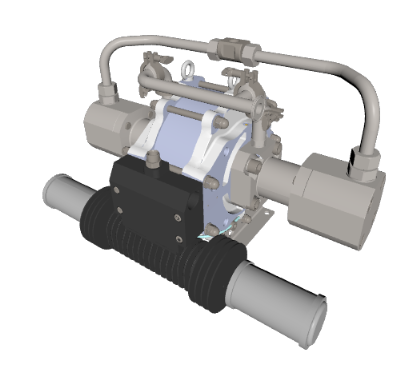

Binks Maple 15/25 Horizontal Piston Pump
Manufacturer: Carlisle Binks
Part #: 104266-HE or 104266-PE
Description: 25:1 Ratio, 6 Gal Fluid Output @ 60 Cycles/Min. Advanced, air operated, horizontal piston pump for paint circulation and supply applications.
Less maintenance and less production downtime with the Binks Maple Pump Series.
The Maple pump series are horizontal piston pumps suited to low and medium pressure applications. The pumps combine an energy efficient air motor and a fluid section that has no exterior leaking seals. High quality materials and surface treatments ensure low maintenance costs and long operational life.
Designed to work with moisture sensitive, shear sensitive and abrasive materials, the horizontal piston arrangement provides minimal pressure fluctuations.
Features:
- Advanced air motor design: Patented technology means lubrication free, low ice, stall free performance
- Reliable operation: No exterior leaking seals, plus a backup seal with bellows visual leak detection ensures continued pump operation during the shift until scheduled maintenance
- Smooth performance: Equal pressure for each piston stroke and a quick changeover keeps pressure fluctuations to a minimum
- Simple to maintain: Easy access to piston seals and check valves
| Recommended Materials | Typical Applications |
|
|
Accessories:
- Fluid Filter - High Pressure
- 15GPM Filter Assembly
Spare Parts (Refer to Manual):
Parts List - Pump Assembly:
| Ref. No. | Part No. | Description |
| 1 | - | MAPLE 15/25 PUMP |
| 2 | 195849 | HEAT EXCHANGER EXTENSION |
| 3 | 192821 | HEAVY DUTY MUFFLERS |
| 4 | 192803 | 1" MANIFOLD PLUG |
| 5 | 192820 | EXHAUST TUBE ADAPTER [32mm NB HOSE] |
| 6 | 195850 | HEAT EXCHANGER EXTENSION |
Parts List - Pump Assembly (Continued):
| Ref. No. | Part No. | Description |
| 1 | - | RIVET |
| 2 | 177144 | SPRING WASHER |
| 3 | 177146 | SOCKET HEAD CAP SCREW |
| 4 | 177149 | SOCKET HEAD CAP SCREW |
| 5 | 192009 | SANITARY CLAMP |
| 6 | 192206 | SANITARY GASKET |
| 7 | 192382 | BALL |
| 8 | 192505 | O-RING |
| 9 | 192551 | HEXAGON PLUG |
| 10 | 192712 | O-RING |
| 11 | 192833 | SEAT |
| 12 | 194109 | 1'' SANITARY ELBOW |
| 13 | 195785 | OUTLET CYLINDER |
| 14 | 195786 | OUTLET FITTING |
| 15 | 195791 | INLET MANIFOLD |
| 16 | 195816-K | AIR MOTOR ASSEMBLY |
| 17 | 195818 | INLET CYLINDER |
| 18 | 195819 | OUTLET MANIFOLD |
| 19 | 195820 | PISTON ASSEMBLY |
| 20 | 195821 | FLUID SEAL ASSEMBLY |
| 21 | - | SERIAL PLATE |
Parts List - Air Motor Assembly: (195816-K)
| Ref. No. | Part No. | Description |
| 1 | 0115-010037 | POPPET ASSEMBLY |
| 2 | 161994 | O-RING |
| 3 | 162738 | O-RING |
| 4 | 162896 | O-RING |
| 5 | 165100 | SPRING WASHER |
| 6 | 165123 | SPRING WASHER |
| 7 | 165981 | DOME NUT |
| 8 | 165982 | SPRING WASHER |
| 9 | 177142 | SOCKET HEAD CAP SCREW |
| 10 | 177143 | SOCKET HEAD CAP SCREW |
| 11 | 192799 | VENT PLUG |
| 12 | 192815 | PUSH IN ELBOW |
| 13 | 193240 | AIR EXHAUST MANIFOLD |
| 14 | 195766 | AIR CYLINDER |
| 15 | 195769 | KNIFED BELLOWS |
| 16 | 195816-K | END PLATE MACHINING |
| 17 | 195816-K | END PLATE MACHINING |
| 18 | 195772 | ROD BEARING |
| 19 | 195773 | BELLOWS SPACER |
| 20 | 195774 | CYLINDER STUD |
| 21 | 195775 | CYLINDER STUD - LONG |
| 22 | 195776 | PUMP BRACKET |
| 23 | 195789 | BELLOWS NUT |
| 24 | 195790 | EYE BOLT |
| 25 | 195817-K | MAIN VALVE ASSEMBLY |
| 26 | 195823 | AIR MOTOR PISTON ASSY |
| 27 | 195846 | SEAL |
| 28 | 195854 | LEAK DETECTION HOSE |
Parts List - Air Motor Piston Assembly: (195823-K)
| Ref. No. | Part No. | Description |
| 1 | 161451 | O-RING |
| 2 | 162739 | AIR MOTOR PISTON SEAL |
| 3 | - | PISTON (Comes with Assembly) |
| 4 | - | WASHER (Comes with Assembly) |
| 5 | - | PISTON SHAFT (Comes with Assembly) |
| 6 | - | PISTON SHAFT (Comes with Assembly) |
Parts List - Air Valve Assembly: (195817-K)
| Ref. No. | Part No. | Description |
| 1 | 0115-010424 | SPOOL AND SLEEVE ASSEMBLY |
| 2 | 0115-010425 | VALVE BLOCK END CAP |
| 3 | 0115-010427 | BUMPER |
| 4 | 0115-010428 | MAGNET |
| 5 | 0115-010431 | SPACER |
| 6 | 0115-010463 | QEV PISTON |
| 7 | 162719 | O-RING |
| 8 | 162767 | O-RING |
| 9 | 163951 | SOCKET HEAD CAP SCREW |
| 10 | 192651 | PLUG |
| 11 | 193244 | GASKET |
| 12 | 195779 | NIPPLE |
| 13 | - | VALVE BLOCK (Comes with Assembly) |
| 14 | 195835 | QEV CARTRIDGE |
Parts List - Fluid Piston Assembly: (195820)
| Ref. No. | Part No. | Description |
| 1 | 160533 | PISTON BALL CHECK SPRING |
| 2 | 162856 | O-RING |
| 3 | 162899 | O-RING |
| 4 | 162900 | O-RING |
| 5 | 171788 | BALL |
| 6 | 192632 | SEAT |
| 7 | 193188 | INLET SPRING KEEP |
| 8 | 195795 | BALL CAGE |
| 9 | - | FLUID PISTON |
| 10 | 195797 | FLUID PISTON SUPPORT |
