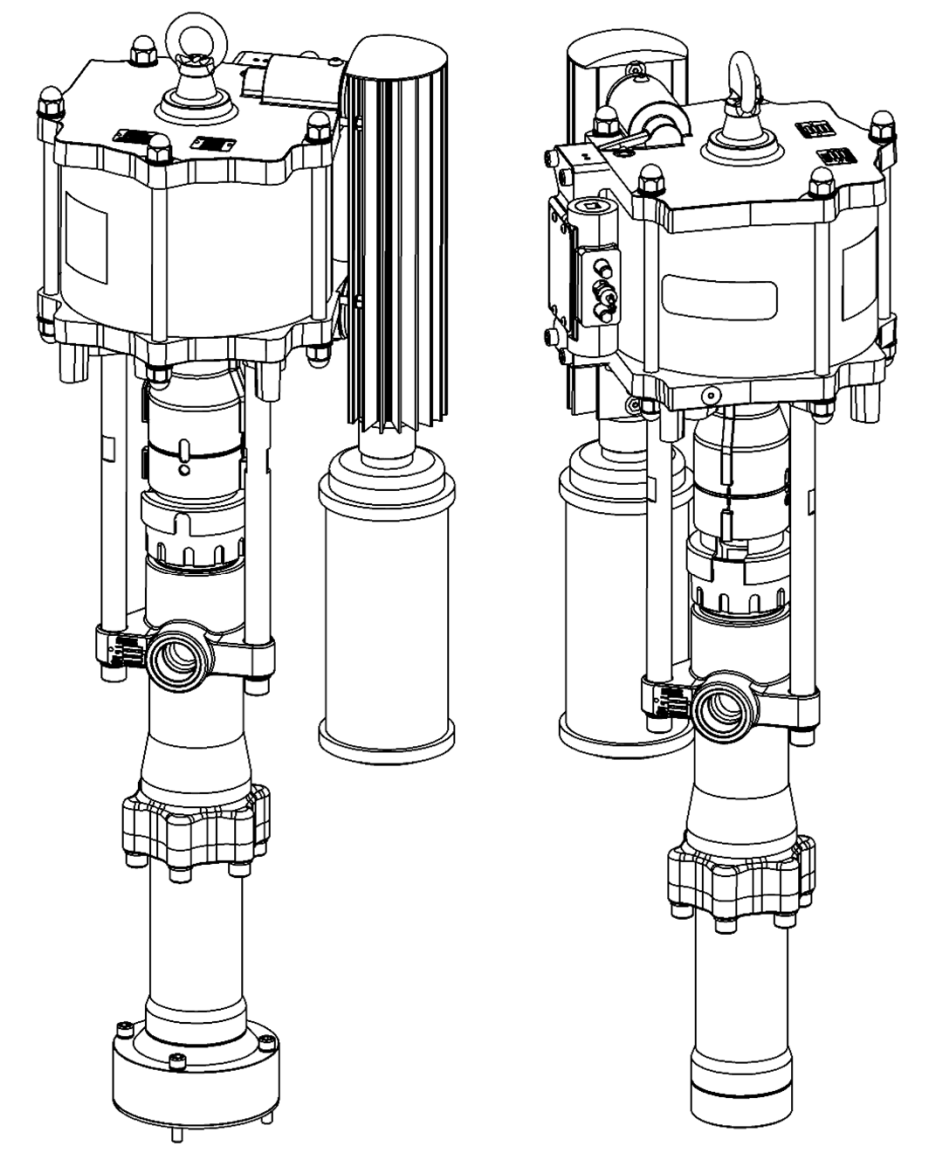

Binks MX44046PU-XXX Pump
MX44046PU Pump
Manufacturer: Binks
Part #'s: MX44046PU-XXX
Description: MX44046PU Pump
- MX44046PU-CMB = Packing: PTFE UHMW-PE, Rod Surface Treatment: Plasma Nitride Coated Stainless Steel, Fluid inlet connection: Ram Inlet
- MX44046PU-CMH = Packing: PTFE UHMW-PE, Rod Surface Treatment: Plasma Nitride Coated Stainless Steel, Fluid inlet connection: 1 1/2" NPT
- MX44046PU-SMB = Packing: PTFE UHMW-PE, Rod Surface Treatment: Ceramic Coated Stainless Steel, Fluid inlet connection: Ram Inlet
- MX44046PU-SMH = Packing: PTFE UHMW-PE, Rod Surface Treatment: Ceramic Coated Stainless Steel, Fluid inlet connection: 1 1/2" NPT
Specifications:
| Ratio: | 30:1 |
| Output @ 60 cycles / min: | 26.4 l/m [7.2 US gal/m] |
| Nominal flow volume / cycle: | 0.440 l [0.12 US gal] |
| Maximum recommended intermittent cycle rate:Cycles/min | 25 |
| Stroke | 5" [127mm] |
| Maximum fluid pressure: | 210 Bar [3045 psi] |
| Fluid inlet connection: | 1 1/2" NPT (CMH, SMH) & Ram Inlet (CMB, SMB) |
| Fluid outlet connection: | 1 1/4" NPT |
| Weight: | 75 kg / 165 lbs |
| Rod Surface Treatment: |
Plasma Nitride Coated Stainless Steel (CMX) Ceramic Coated Stainless Steel (SMX) |
| Rod Upper Packing Seal Options: |
PTFE |
| Upper Packing Nut Adjustment: |
120Nm |
| Rod Lower Packing Seal Options: |
PTFE UHMW-PE (PU) |
| Air Inlet: |
¾" NSP / BSP |
| Air Quality ISO 8573.1 Class 3.3.2 |
Dirt: 5 microns Water: -20°C @ 7bar [0.1g/m³] Oil: 0.1mg/m³ |
MX44046PU-XXH
MX44046PU-XXB
Pump Assembly Parts List
| Ref. No. | Part No. | Description |
Qty |
| 1 | 104037 | A260 AIR MOTOR | 1 |
| 2 | 193616 | TIE ROD | 3 |
| 3 | 165100 | M16 SPRING WASHER | 3 |
| 4 | 165594 | M16 x 60 CAP HEAD SCREW | 3 |
| 5 | 193540 | LABEL | 1 |
| 6 | 164838 | RIVET |
2 |
| 7 | 163940 |
FX440 GUARD ADAPTOR | 1 |
| 8 | 163938 |
FX440 HAND GUARD | 2 |
| 9 | 193543 | COVER CLIP | 1 |
| 10 |
CMB FLUID SECTION (PTFE/UHMW) SMB FLUID SECTION (PTFE/UHMW) SMB FLUID SECTION (LEATHER/UHMW CERAMIC FILLED) |
1 | |
| 11 |
CMH FLUID SECTION (PTFE/UHMW) SMH FLUID SECTION (PTFE/UHMW) |
1 |
Accessories:
-
Kluber Isoflex Topas NB 52 Grease AGMD-010 (50ml Tube)
- Torque 'C' Spanner Adapter 502893 (Setting Tool for Packing Nut)
-
Pump Lubrication
- Throat Seal Lube, Solvent-Based (0114-016099 & 0114-009433)
- Throat Seal Lube, Water-Based (0114-016100 & 0114-014871)
Spare Parts List
| Part No. | Description |
Remarks |
| 250645 | Air Motor Overhaul Kit. |
Air Piston Seal All O-rings QEV Cups Pilot Valves including O-rings
|
| 250647 | Control Valve Kit | Main Spool Valve including O-rings |
|
250696 |
PU Fluid Seal Kit (XXH Pumps) |
PTFE + UHMW-PE Packing Set All O-rings |
|
250733 |
PU Fluid Seal Kit (XXB Pumps) |
PTFE + UHMW-PE Packing Set All O-rings All Gaskets |
| 250802 | CG Fluid Seal Kit (XXB Pumps) |
Ceramic UHMW-PE + Glass Filled PTFE Packing Set All O-Rings |
| 250800 | CL Fluid Seal Kit (XXH Pumps) |
Ceramic UHMW-PE + Leather Packing Set All O-rings |
| 250804 | CL Fluid Seal Kit (XXB Pumps) |
Ceramic UHMW-PE + Leather Packing Set All O-rings All Gaskets |
Literature:
Binks charges a significant fee to drop ship orders of less than $250.00. Therefore, any parts orders under $250.00 will be added to our stocking orders and then reshipped to you. If you need these products faster you can contact us for an expedited drop shipping fee.
Contact: 503-545-3176
