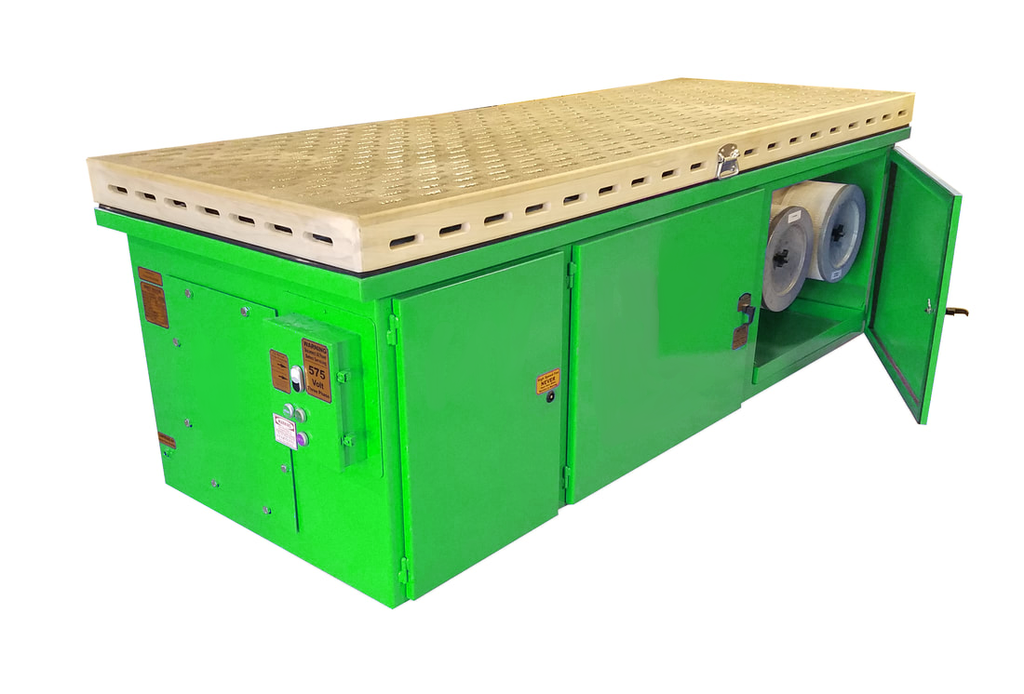

DENRAY DOWNDRAFT CARTRIDGE FILTER SYSTEMS
Manufacturer: Denray
Part #: 3696B
Description: Denray Machine's cartridge filter systems are one of the best on the market. Our tables come with 80/20 cartridge filters, which clean with a 99.95% capture rate at .5 micron. Denray's cartridge filtration tables come with "Jet Pulse" pushbutton cleaning. This line comes in various dimensions to accommodate any size job.
This model is ideal for medium and large-sized jobs and is accommodating for two or three jobs going on at the same time on the same table. The 3696B is one of the larger tables in Denray's push-button cleaning line. This model comes standard with 80/20 cartridge filters which clean with a 99.95% capture rate at .5 micron, along with a magnetic starter and rubber-coated top.
*Please note that the starter box on this model is on the left side of the machine.
*Please note that the starter box on this model is on the left side of the machine.
- 36" x 96"
- 36" HEIGHT
- 5 HP MOTOR
- 4800 CFM
- 82 DECIBELS SOUND LEVEL
SINGLE-PHASE
- 220 VOLTAGE (23 AMPS)
THREE-PHASE
- 230 VOLTAGE (13.4 AMPS)
- 460 VOLTAGE (6.7 AMPS)
- 575 VOLTAGE (5.3 AMPS)
Additional Options:
- Explosion Proof Motor (3 Phase only)
- Light Bar
- Casters
- Auto-timer
- Muffler (reduces sound level 10-12 dbs.)
- 100% Spunbond Polyester Filters
- Carbon Filter Bank (odor only)
- HEPA Filter bank
- Three-sided Hinged Safety Shield
- Magnehelic Gauge
- HDPE Plastic Tabletop
- Hydraulic Height Adjustment
- Larger Motor/Fan Upgrade
FOB Mount Vernon, Missouri - You will be contacted with a freight quote or you can arrange your own freight. Forklift required at the time of delivery.
