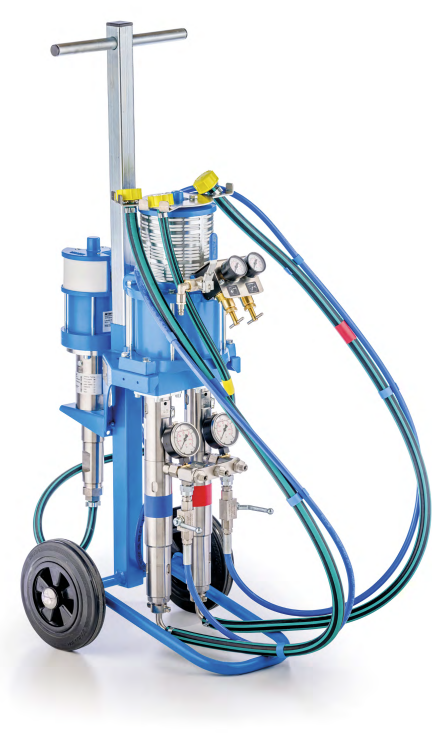

WIWA Inject 2K 14025 GX

Inject 2K 14025 GX

Manufacturer: WIWA

Part Number: 0669067

Description: The WIWA Inject 2K 14025 GX is a pneumatic 2K piston pump with a 1:1 mixing ratio. The material pumps are connected to the air motor so that no mixing errors occur due to the positive control. The unit is equipped with a flush pump for quick cleaning of the A and B components for the mixing unit. Due to its compact design, it is particularly suitable for sealing basements and for use in inaccessible places. All material-carrying parts are made of stainless steel.

• Easy maintenance

• Easy and quick cleaning

• Particularly low wear due to fixed, pre-stressed packings

Technical Data

Output per cycle	4.9 cu in
Pressure ratio	25:1
Max. air inlet pressure	116 ps
Max. operating pressure	2900 ps
Mixing ratio	1:1
Version	RS, F



Materials:

• 2K injection resins
• Acylate gel
• Injection foams

Basic Equipment:

• 2K high pressure dosing pump
• Maintenance unit
• Suction system
• 2 x Pressure gauge at material outlet
• 3 x Material hoses 24.6 ft ¼“
• Flush pump PROFIT
• Relief for A and B component
• 2K mixing unit with separate flush function for component A and B
• Bottle of release agent
• Operating manual with spare parts list

Areas of Application:

• Building pit waterproofing
• Subsoil injection/soil consolidation
• Cavity filling
• Subsequent horizontal barrier
• Sewer rehabilitation
• Curtain injection
• Area injection



Overview and Accessories for the WIWA Inject 2K 14025 GX





Accessories	Part No.	Description
Suction line	0669523	Suction line NW13 for double pump injection system - blue
Suction line	0671169	Suction line NW13 for double pump injection system - red
Suction line flush pump	0669524	Suction line NW10 for flushing pump gel system
Mounting kit funnel	0666699	Funnel 1.6 gal complete for PHOENIX GX, with cover and suction tube
Flush pump (only High pressure pump)	0669066	High pressure pump 14.33 RS PROFIT above: acc. PUR / UHMW-PE below: acc. PUR / UHMW-PE
Pressure gauge	0631359	Pressure gauge, lacquered brass, glycerine filling
Double air pressure regulator	0669529	Double air pressure regulator complete G 1/4“ 145 psi for gel system
Mounting kit condensate-water separator	0669329	Mounting kit filter for injection system mini
Stroke counter	0670950	Stroke counter complete with holder
Hose package	0669720	Hose package unheated 24.6 ft RS 1x 1/4“ NPSM blue / 1x 1/4“ NPSM red 1x 1/4“ NPSM NW4 blue
Hose 24.6 ft 1/4“ NPSM blue A-component	0613819	Material hose NW6 1/4“ NPSM 24.6 ft, 5945 psi, RS, blue
Hose 24.6 ft 1/4“ NPSM red B-component	0670246	Material hose NW6 1/4“ NPSM 24.6 ft, 5945 psi, RS, red
Hose 24.6 ftm ¼“ flush pump	0638610	Material hose NW 4/300-1/4“ 24.6 ft RS
Mixing unit	0669666	Mixing unit complete with separate flushing device for component A and B for gel system
Extension mixing section	0671626	Extension complete d=9.4 Static mixer for standard mixing unit
Whip hose 0.9 ft	0669787	Material hose NW 6/410-1/4“ - 0,30 RS
Injection Gun	0668657	Injection gun complete WIWA 500D with adapter 1/4“ NPSM (A)
Connection nipple	0218820	Double nipple NPS 1/4“-M 10x1
Sliding coupling 90°	0669301	Sliding coupling angular 90°, for nipple M1 Aluminium
Sliding coupling 90°	0672169	Sliding coupling angular 90° for nipple M1 (0.6 in) (connection lateral) connection M10x1, with gasket blue Passage bore: 0.2 in
Sliding coupling straight	0641199	Sliding coupling M10 x 1, straight version
Sliding coupling straight	0672168	Sliding coupling straight for nipple M1 (0.6 in) (connection frontal) connection: M10x1, with gasket blue Passage bore: 0.2 in
Hydraulic mouthpiece	0411302	Hydraulic mouthpiece M10x1 IG 4 jaws chrome-plated (replacement seal 0660477)
Quick release pliers	0668559	Quick release pliers R1/4 (A), 0.2 in
