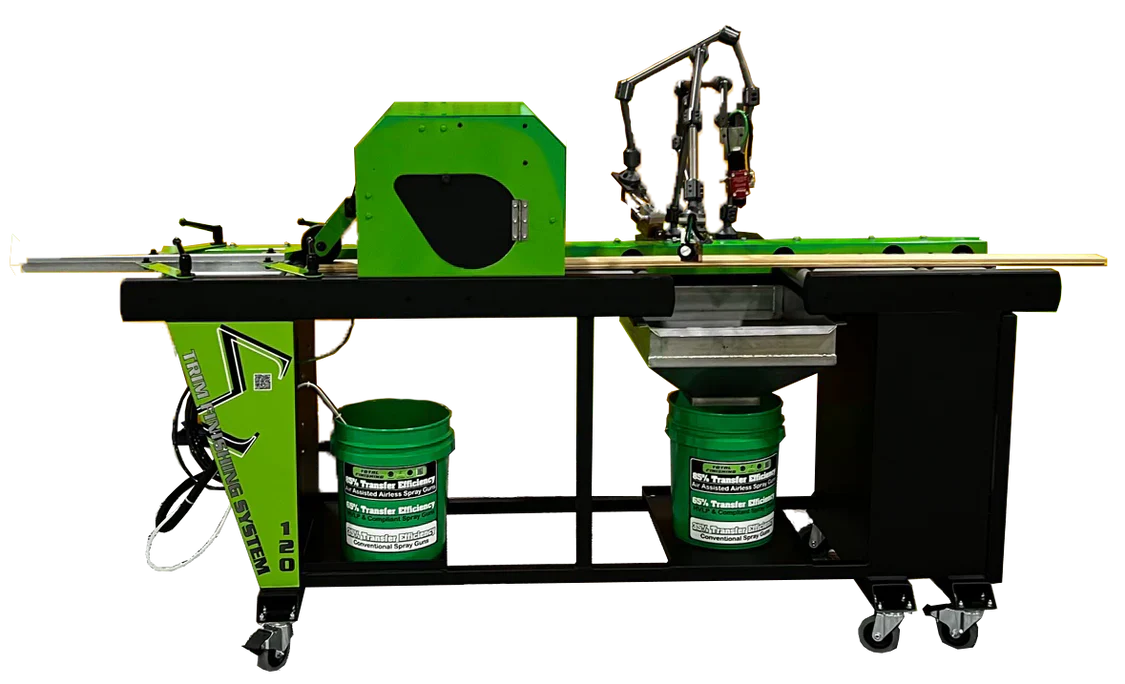

If you’re in the business of finishing trim, mouldings or linear stock, the TFS Trim Finishing System 120 (TFS-120) from Total Finishing Solutions delivers a compelling blend of speed, precision and robust build. Below is a blog-style overview of why this system stands out, followed by a handy bullet-list of its key features.
⸻
Why the TFS-120 is worth a look
In many finishing operations, especially those producing mouldings, door & window trim, or other linear profiles, efficiency and consistency are critical. Hand-spraying or manually managing each piece becomes a bottleneck. The TFS-120 addresses that by offering a linear spray machine built specifically for trim stock. According to the manufacturer, it “increases production, lowers costs and virtually levels the playing field for small and medium size companies.”
With adjustable throughput speeds (up to 150 ft/min), a durable powder-coated chassis, articulating spray-gun arms, and plug-in convenience (110 V single-phase), it aims to bring industrial capability into smaller shops.
In practice, what that means is: faster throughput of trim pieces, better surface-coat coverage via automated spray guns, and a system configured for high repeatability and less operator-dependency. For any shop finishing mouldings, door frames, window units or custom trim, the TFS-120 may significantly improve output and quality.
⸻
Key Features at a Glance:
Here are the stand-out attributes of the TFS-120:
• High throughput speed – Variable infeed speed from 0 up to 150 feet per minute, enabling the machine to process approximately a mile of moulding per hour under ideal conditions.
• Versatile stock size accommodation – Designed to handle minimum piece lengths of 34″ and maximum stock widths up to 12″.
• Robust mechanical build – Powder-coated chassis and anodized articulating gun arms for durability and long-term performance.
• Explosion-proof motor & plug-in convenience – Equipped with a 1-hp Class 1 / Div 2 (or Div 1 in some spec) explosion-proof motor, with a variable-speed inverter and 110-volt single-phase plug-in convenience.
• Automatic spray gun system – Three TFS Automatic VIPER-X air-assisted airless spray guns (with standard 06-094 tips) are mounted on articulating arms, coordinated via an air-logic controller. These guns are solvent and water-borne compatible and meet HVLP requirements for many jurisdictions.
• Heavy-duty piston pump – Coating fluid is delivered via an Anest Iwata ICON 30 : 1 stainless-steel piston pump, capable of high fluid pressures (up to ~210 bar/3045 psi) and multi-gun operation.
• Integrated denibber unit – A built-in oscillating abrasive disc (“denibber”) handles surface prep: it moves ~120 mm sideways in each half revolution, providing a travel of over 4″ and attacking surface fibres up to 20 times per second — ideal for removing minor fibres and smoothing seal coats prior to top-coating.
• Minimal operator skill needed – The automatic gun system and controls reduce reliance on highly skilled spray-operators, improving consistency and reducing human variability.
• Mobility and space-friendly footprint – While sizeable, the unit is designed for shop mobility (on wheels) and can roll into a spray-booth zone for efficient usage when needed.
• System composition / technical specs –
• Overall dimensions: approx. 60″ height, 28″ width, 98″ length.
• Weight: about 850 lbs (shipping weight ~1,125 lbs)
• Controls: 115 V/60 Hz/15 Amp motors & control. Air requirement: ~12 CFM at 90 psi.
• Warranty – The manufacturer warrants free-from-defects for parts under normal use for one year.
⸻
Final Thoughts
For finish shops aiming to boost production of trim and linear stock without sacrificing finish quality, the TFS Trim Finishing System 120 stands out as a strong option. Its blend of high speed, automated spray system, denibber prep capability, and robust design make it ideal for operations that need to move pieces quickly, repeatedly, and with tight coating uniformity.
Of course, as with all heavy-equipment purchases, it pays to evaluate your workflow: check your material widths and lengths, finishing chemistry (solvent vs waterborne), shop space, booth/ventilation compatibility, and operator training. If these align, the TFS-120 could become a key productivity upgrade.
Check it out at TotalFinishingSupplies.com
