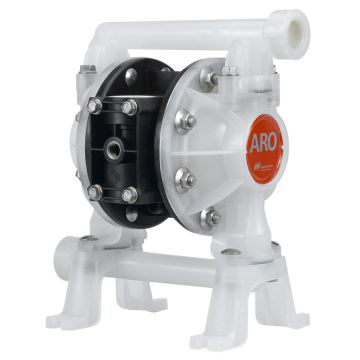

ARO 3/4" Non-Metallic Diaphragm Pump
Manufacturer: ARO
Part #: PD07P-XPS-PXX
Description: 1:1 Ratio, 14.8 g.p.m Maximum Flow. Designed to meet your OEM application needs. Install directly onto your 3/4" application, saving you a fitting and a possible leak point. Manufactured for complete corrosion resistance - constructed with polypropylene center body, standard stainless steel fasteners, and polypropylene casing materials.
Features:
- Efficiency - Simul-Shift™ valve provides ultra-positive, reliable shift signal
- Reliability - ARO's patented 'Unbalanced' air valve ensures no-stall operation
- Versatility - Compact design enables usage in limited space and other versatile locations
- Environmentally Sound - Bolted construction for leak-free fluid handling
- Serviceability - Easier service through modular design
Specifications:
| Ratio: | 1:1 |
| Maximum Flow: | 14.8 g.p.m. (56 l.p.m.) |
| Displacement per cycle: | 0.032 Gallons (0.12 Liters) |
| Air Inlet: | (Female) 1/4 - 18 P.T.F. SAE Short |
| Fluid Inlet/Outlet: | 1/2 - 14 N.P.T.F. - 1 or Rp 1/2 (1/2 -14 BSP, parallel) |
| Max. operating pressure: | 100 psi (6.9 bar) |
| Suspended solids max. dia.: | 3/32” (2.4 mm) |
| Weight: lbs (kg) | 5.61 (2.54) |
| Maximum dry suction lift: ft (m) | 15.0 (4.5) |
| Sound Level: | 70 PSI 60 Cycles/Min 75.0 db(A) |
| Muffler: | Integral, Included |
