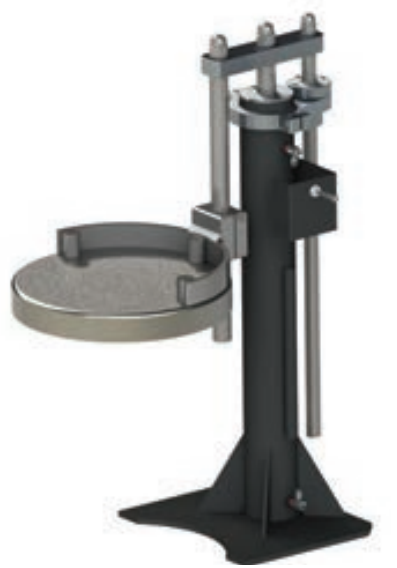

205L Pneumatic Drum Elevator
Manufacturer: Binks
Part Number: 104112
Description: The new Binks elevators are driven by an easy to operate pneumatic actuator, enabling the changing of drums with a minimum of inconvenience. Both models feature an antitwist mechanism, sturdy construction and are designed for use with both solvent-based and waterborne materials.
- Simple compressed air operation
- Speed control possible in both directions
- Elevator can be set at any height within its stroke and will not drop from that point
- ATEX approved & marked for use in Zones 1 and 2
Specifications:
| Max working air pressure | 7 Bar (101 psi) |
| Air Inlet | ¼” BSP female |
| Stroke | 955mm / 37.6” |
| Maximum Drum Size | Ø640mm |
| Unit height (fully extended) | 2270mm / 89” |
| Weight | 64Kg / 140lbs |
You may be contacted with a freight quote for shipping. Fork lift may be required at time of delivery.
