Air Assisted Airless 12:1 Piston Pump Systems
Manufacturor: Carlisle Binks
Part #: MX412XX-QDXXS25
Description: MX412: 0.4 gal/m output and 12:1 ratio
Binks MX Pumps are a completely new design in air-operated pump technology utilizing patented magnetic detents to provide fast changover with virtually no pulsation. The result is paint delivery with less pulsation for a more consistent finish. The MX pistons are ceramic coated – the most durable surface available – for resisting wear from abrasive materials.
The MX Pumps are ideal for air assisted airless spray finishing, supporting 1 to 2 spray guns, with thin to medium viscosity coatings.
- Wood Stains, Varnishes, Lacquers
- Primers & Sealers
- Solvent & Waterborne Coatings
- Enamel & Polyurethane
When selecting a model, the following options are available:
Packing: PTFE/UHMWPE or UHMWPE/U-Cup Seals.

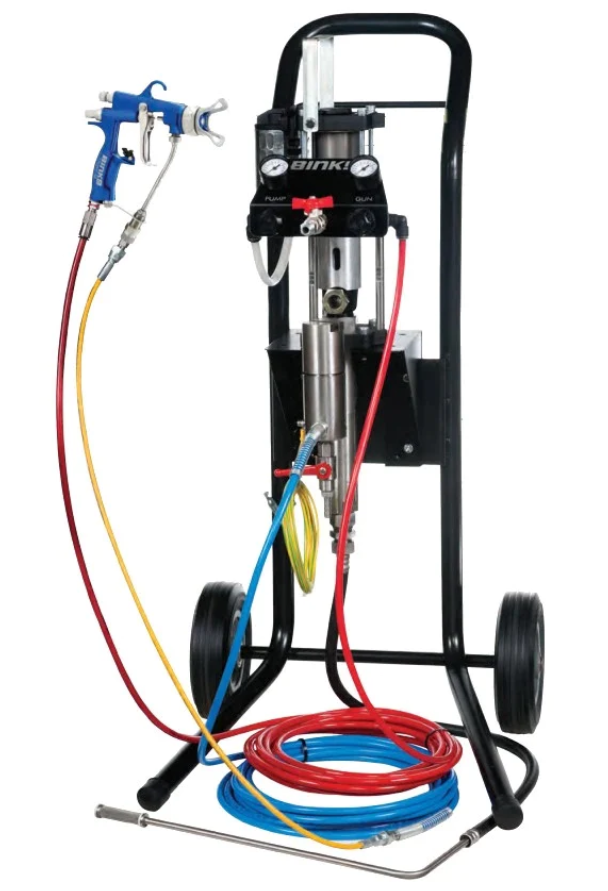

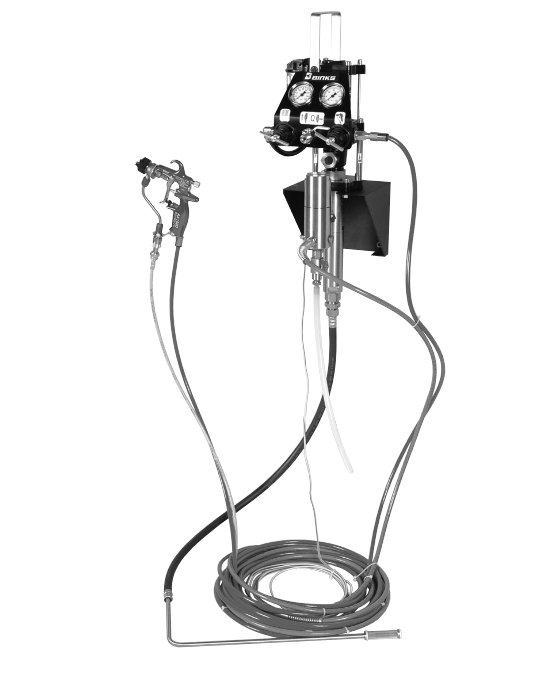

Mounting: Wall or Cart mounted.
Filter: 100 Mesh Stainless Steel Filter or no filter.
All models come with:
- MX412 Air Assisted Airless Piston Pump
- Binks Trophy AA 1600M/Flat Tip Spray Gun (Part #: 1600-HF1310)
- Dual Air Control
- 5 Gallon Siphon Hose
- 25' Whip Hose
MX412 Pump Specifications:
| Flow Rate at 60 cycles | 0.4 gpm |
| Ratio | 12:1 |
| Max Inlet Pressure | 116 psi |
| Volume cycle | 0.8 oz (24cc) |
| Max Fluid Pressure | 1,390 psi |
|
Air Consumption at 20 cycles/min |
2.2 SCFM |
