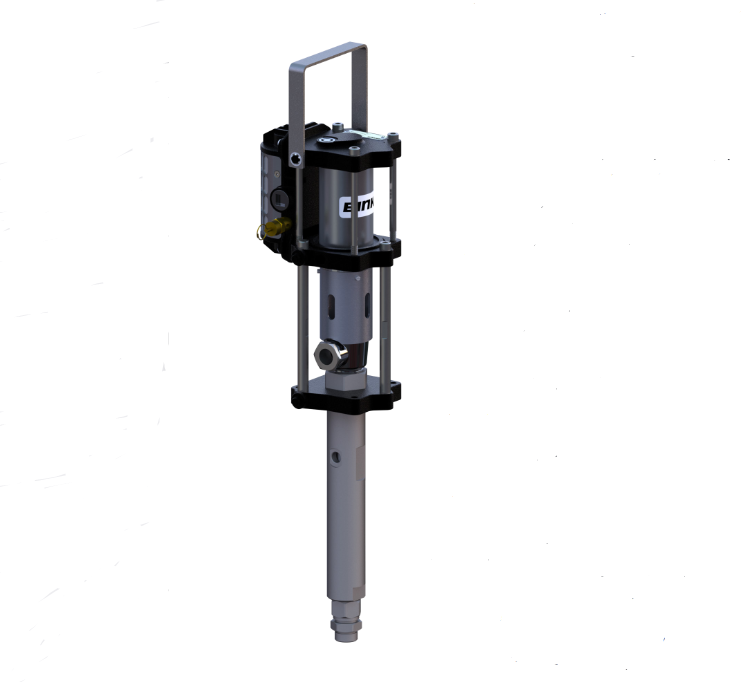

Binks Bare MX412 Series
Air Assist Airless Piston Pumps
Manufacturer: Carlisle Binks
Part Number: MX412XX
Description:
Binks MX Pumps are a completely new design in air operated pump technology utilizing a patented magnetic detents to provide fast changeover with virtually no pulsation. The result is paint delivery with less pulsation for a more consistent finish.
The MX Medium pressure pumps are available in the ratios of 12:1 and 32:1, with outputs of 0.4 GPM or 1.2 GPM. The MX pistons are ceramic coated, which is the most durable surface available for resisting wear from abrasive materials.
The MX pumps are ideal for air assist airless spray finishing and support one to two spray guns with thin to medium viscosity coatings.
-
Wood Stains, Lacquers, & Varnishes
-
Primers & Sealers
-
Solvent & Waterborne Coatings
-
Enamel & Polyurethanes
Markets
-
Woodworking
-
Aerospace
-
Agriculture & Off-Road
-
Marine
-
and Truck & Bus
Features
-
Long Lasting Ceramic Coated Piston Rods
Resists wear from highly abrasive fluids and lasts up 3X longer that hard chrome
-
Low/No Ice
Operate 2.5X longer than the competition
-
Patented Air Valve Technology
Enables pump to change over quickly without pulsing
-
Lubrication Free Air Motor & Valve Design
Reduces maintenance and simplifies operation
MX412 Pump System Specifications
|
Ratio: |
12:1 |
|
Maximum Air Inlet Pressure: |
8 bar (116 psi) |
|
Maximum Fluid Pressure: |
96 bar (1,392 psi) |
|
Displacement Per Cycle: |
24cc (0.8 oz) |
|
Output @ 60 Cycles/Min: |
1.4 L/m (0.4 gal/min) |
|
Air Consumption @ 20 Cycles/Min @ 8 Bar (116 Psi) Air Inlet Pressure: |
625 LPM (2.25 SCFM) |
|
Maximum Recommended Continuous Cycle Rate: |
20 cycles/min |
|
Air Inlet Connection: |
3/8” BSP(m) and ¼” NPS(m) |
|
Air Piston Diameter: |
55 mm (2.2 in) |
|
Stroke Length: |
75 mm (3.0 in) |
|
Fluid Inlet Connection: |
¾” NPS(m) |
|
Fluid Outlet Connection: |
3/8” BSP(m)/3/8” NPS(m) |
|
Sound Level: |
88 dB |
|
Wetted Parts Materials Construction: |
Stainless Steel, Tungsten Carbide, Hard Chrome, PTFE, Polyurethane, Leather |

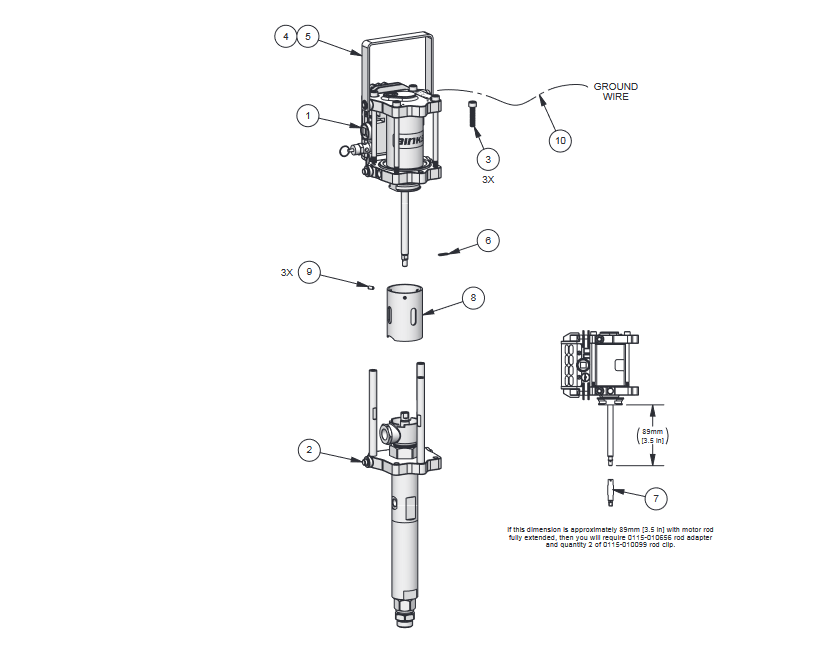

MX412 Bare Pump Assembly Spare Parts
|
Part Number |
Description |
Quantity |
Item # |
|
AX55S |
AX55S AIR MOTOR ASSEMBLY |
1 |
1 |
|
FX4PL |
FX4 FLUID SECTION ASSEMBLY (PTFE/LEATHER) |
1 |
|
|
FX4PP |
FX4 FLUID SECTION ASSEMBLY (PTFE) |
— |
2 |
|
FX4PU |
FX4 FLUID SECTION ASSEMBLY (PTFE/UHMW) |
— |
|
|
FX4UC |
FX4 FLUID SECTION ASSEMBLY (U-CUPS) |
— |
|
|
0115-010001* |
SOCKET HEAD CAP SCREW |
3 |
3 |
|
0114-014351 |
HANDLE |
1 |
4 |
|
0115-010272 |
RETAINING RING |
2 |
5 |
|
0115-010099* |
ROD CLIP |
1 |
6 |
|
0115-010656 |
MX4 MOTOR ROD ADAPTER |
REF. |
7 |
|
0115-010655 |
GUARD |
1 |
8 |
|
166001 |
SLOTTED SET SCREW |
3 |
9 |
|
0114-016243 |
GROUND WIRE KIT |
1 |
10 |
