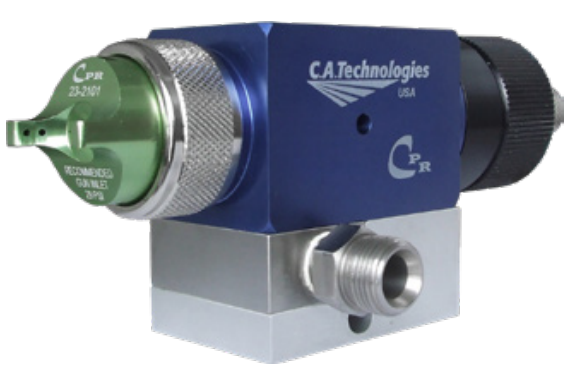

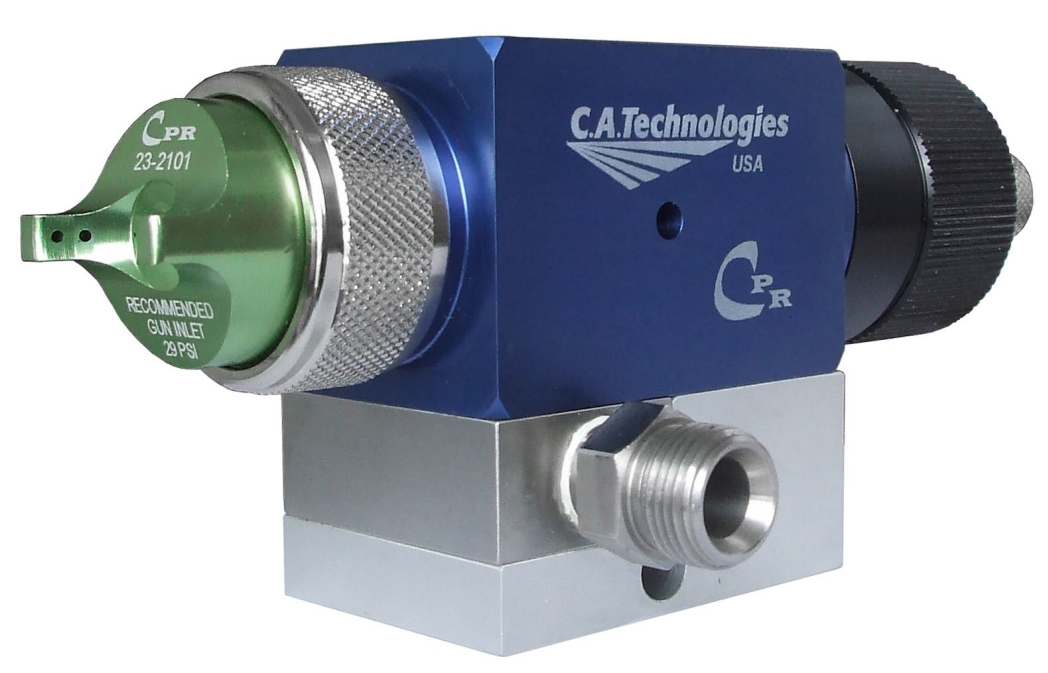

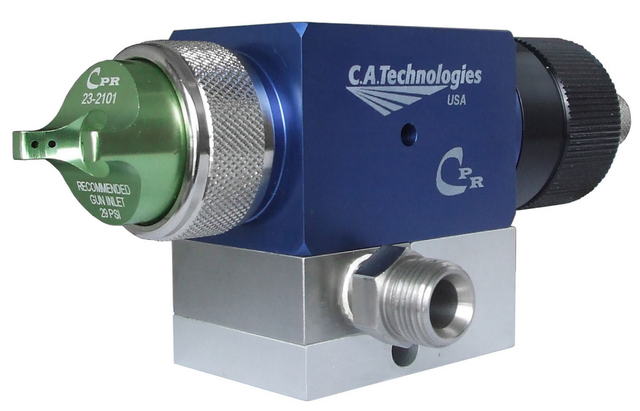

C.A. Technologies Automatic CPR (AMCPR) Spray Gun

$1,009.25
Shipping calculated at checkout.

Automatic CPR (AMCPR) Spray Gun

Manufacturer: C.A. Technologies

Part Number: AMCPR-xx

Description: The AMCPR from C.A.T. combines the transfer efficiency of HVLP with the speed and finish quality of conventional air spray.

Included with each AMCPR is the CPR and HVLP air cap for multi-application purposes. Each AMCPR has the ability to be used in circulating or non-circulating systems and is block mount ready for flatline machinery.

Specifications:

  • Air Inlet - 1/4” NPS (m)
  • Fluid Inlet - 3/8 NPS (m)
  • Weight - 24 oz.
  • Requires 11 CFM @ 29 PSI (Compliant Air Cap)
  • Requires 13.5 CFM @ 45 PSI (HVLP Air Cap)
  • Available with standard manifold. Cefla® manifold available upon request.
Parts and Accessories:
Ref. No. Part No. Description
1 23-2101 Air Cap Assembly (CPR Compliant)
1 23-1302 Air Cap Assembly (HVLP)
2 33-02XX Fluid Nozzle Tip
3 33-1201 Fluid Nozzle Body
4 60-702 Fluid Nozzle Carrier
5 98-7018 O-Ring*
6 98-7014 O-Ring*
7 60-701 Gun Body
8 60-710 Needle Seal Assembly*
9 98-7015 O-Ring*
10 98-7016 O-Ring*
11 66-255 Air Control Spool
12 98-8010 O-Ring*
13 98-7109 O-Ring*
14 66-257 Piston
15 98-7217 O-Ring*
16 40-AM3XX Fluid Needle
17 98-7006 O-Ring*
18 66-246 Piston Spring
19 60-715 Needle Stop Sleeve
20 60-704 Rear Cap
21 60-204 Needle Return Spring
22 60-205 Spring Seat*
23 60-612 Locknut
24 60-608 Fluid Control Knob
25 66-254 Fluid Seal*
26 66-253 Fluid Insert §
26 66-253-B Fluid Insert Blank §
27 98-8010 O-Ring*
28 98-7011 O-Ring*
29 98-0290 Mounting Screw
30 66-267 Fluid Manifold Block
31 98-0249 Allen Screw
32 66-266 Air Manifold Block (Standard)
32A 66-268 Air Manifold Block (Cefla®)
33 66-258 Fan Control Assembly
