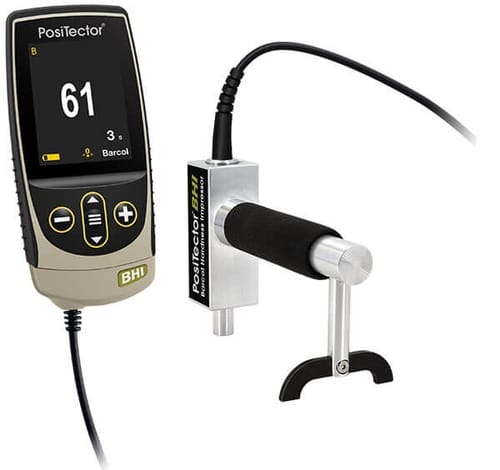

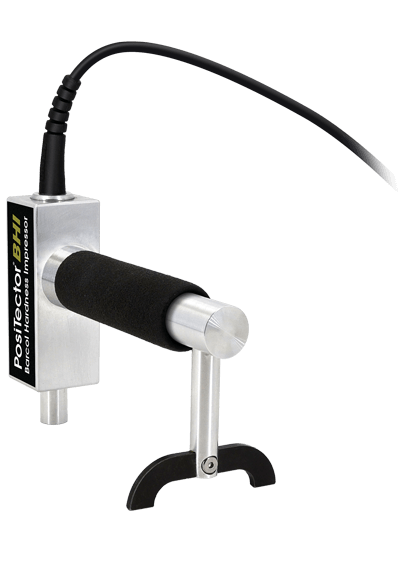

PosiTector® BHI Digital Barcol Hardness Impressor
Manufacturer: DeFelsko
Part #: BHIX
Description: The PosiTector BHI measures the hardness of soft metals such as aluminum, aluminum alloys, copper, brass, and other materials such as harder plastics and fiber-reinforced plastic.
- Easy-to-read digital display
- Comparable to 934-1 Barcol Hardness Tester
- NEW Larger 2.8" impact resistant color touchscreen with redesigned keypad for quick menu navigation
- NEW Weatherproof, dustproof, and water-resistant—IP65-rated enclosure
- PosiTector interchangeable platform—attach any PosiTector probe to a single gage body
- USB, WiFi, and Bluetooth connectivity to PosiSoft PC, Mac, and Smartphone software
- Certificate of Calibration included
Conforms to ASTM B648/D2583, DIN EN 59, and AS/NZS 3572.22
Features:
Simple
- Easy-to-read digital display
- Comparable to 934-1 Barcol Hardness Tester
- User-adjustable measurement time with on-screen countdown
- Includes spare, field replaceable indentor with replacement tool
- NEW Larger 2.8" impact resistant color touchscreen with redesigned keypad for quick menu navigation
- NEW On-gage help explains menu items at the touch of a button
- RESET feature instantly restores factory settings
Durable
- NEW Weatherproof, dustproof, and water-resistant—IP65-rated enclosure
- NEW Ergonomic design with durable rubberized grip
- Shock-absorbing, protective rubber holster for added impact resistance
- Hard-shell carrying case included
- Two year warranty on gage body AND probe
Accurate
- Certificate of Calibration included
- Hi-RES mode increases displayed resolution for precision applications
- Includes hard and soft aluminum alloy test disks and leveling plate to verify gage operation
- Conforms to national and international standards including ASTM
Versatile
- PosiTector body accepts all PosiTector 6000, 200, RTR, SPG, DPM, IRT, SST, UTG, SHD, BHI, and GLS probes easily converting from a coating thickness gage to a surface profile gage, dew point meter, soluble salt tester, ultrasonic wall thickness gage, hardness tester, or gloss meter
- 1 and 2 point calibration options with Cal Reset to restore factory settings
- Selectable display languages
- NEW Auto rotating display with Flip Lock
Powerful
- Continually displays/updates average, standard deviation, min/max, and number of readings while measuring
- NEW Screen Capture—save 100 screen images for record keeping and review
- HiLo alarm audibly and visibly alerts when measurements exceed user-specified limits
- NEW Instant-on feature quickly powers up the gage if recently powered down
- NEW Up to 30% longer battery life
- USB Port for fast, simple connection to a PC and to supply continuous power
- PosiSoft USB Drive—stored readings and graphs can be accessed using universal
- PC/Mac web browsers or file explorers. No software required.
- Every stored measurement is date and time stamped
- Software Updates via the internet keep your gage current
- Includes PosiSoft suite of software for viewing, analyzing and reporting data
Standard Models:
- Includes ALL features as shown above plus...
- NEW Storage of 1,000 readings per probe—stored readings can be viewed or downloaded
Advanced Models:
- Includes ALL features as shown above plus...
- NEW Storage of 250,000 readings from multiple probes in up to 1,000 batches and sub-batches
- Auto Sub-Batch—automatically create new sub-batches after the desired number of readings are taken
- Live graphing of measurement data
- NEW Touchscreen keyboard for quickly renaming batches, adding notes, and more
- WiFi technology wirelessly synchronizes with PosiSoft.net and downloads software updates
- Bluetooth 4.0 Technology for data transfer to a mobile device running the
- PosiTector App or optional portable printer. BLE API available for integration into third-party software.
- Integrate with third-party software, drones, ROVs, PLCs, and robotic devices using several industry-standard communication protocols
- Store thickness, profile, environmental, salt contamination, hardness, and wall thickness measurements in individual batches
Literature:
Parts and Accessories:
Packing List:
All gages come complete with test disks (2), leveling plate, replacement indentor with replacement tool, glass plate, protective rubber holster, wrist strap, 3 AAA batteries, instructions, hard shell case, protective lens shield, Long Form Certificate of Calibration, USB cable, PosiSoft Software, two (2) year warranty.
