DeFelsko PosiTector 6000 w/ Microprobe

$1,080.00

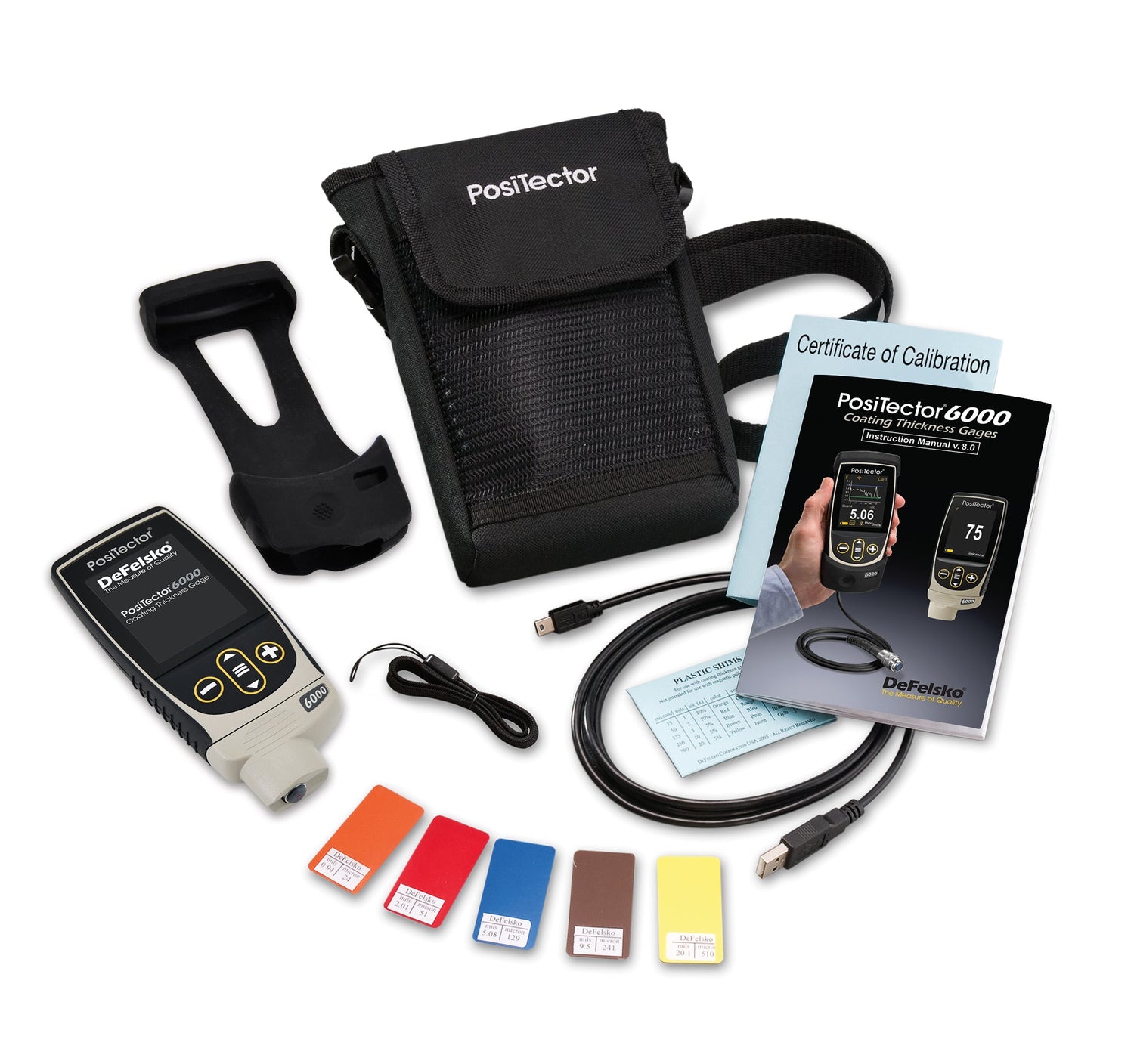

PosiTector 6000 w/ Microprobe

Manufacturer: DeFelsko

Part #: See Ordering Guide

Description: Microprobes – Our smallest probes for small parts or hard-to-reach areas. Coating Thickness Gages for ALL Metal Substrates. Probe details found in Ordering Guide above.

Other models available:

The rugged, fully electronic PosiTector 6000 Paint Thickness Gage uses magnetic and eddy current principles to measure paint thickness on both ferrous and non-ferrous metals, accurately and quickly.

  • Ready to measure—no calibration adjustment required for most applications
  • NEW Larger 2.8" impact resistant color touchscreen with redesigned keypad for quick menu navigation
  • NEW Weatherproof, dustproof, and water-resistant—IP65-rated enclosure
  • Wear resistant ruby probe tip, for long-lasting calibration
  • PosiTector interchangeable platform—attach any PosiTector probe to a single gage body
  • USB, WiFi, and Bluetooth connectivity to PosiSoft PC, Mac, and Smartphone software
  • Certificate of Calibration showing traceability to NIST or PTB included (Long Form)

Simple

  • Fast measurement speed—60+ readings per minute. Enhanced FAST mode—90+ readings per minute for quick inspection.
  • Ready to measure—no adjustment required for most applications
  • NEW Larger 2.8" impact resistant color touchscreen with redesigned keypad for quick menu navigation
  • NEW On-gage help explains menu items at the touch of a button
  • Flashing display—ideal in a noisy environment
  • RESET feature instantly restores factory settings

Durable

  • NEW Weatherproof, dustproof, and water-resistant—IP65-rated enclosure
  • NEW Ergonomic design with durable rubberized grip
  • Wear-resistant probe tip
  • Shock-absorbing, protective rubber holster for added impact resistance
  • Two year warranty on gage body AND probe

Accurate

  • Certificate of Calibration showing traceability to NIST or PTB included
  • Built-in temperature compensation ensures measurement accuracy
  • Hi-RES mode increases displayed resolution for precision applications
  • Conforms to national and international standards including ISO and ASTM

Versatile

  • PosiTector body accepts all PosiTector 6000, 200, RTR, SPG, DPM, IRT, SST, UTG, SHD, BHI, and GLS probes easily converting from a coating thickness gage to a surface profile gage, dew point meter, soluble salt tester, ultrasonic wall thickness gage, hardness tester, or gloss meter
  • Multiple Calibration adjustment options including 1 point, 2 point, and ISO 19840 correction factors
  • Selectable display languages
  • NEW Auto rotating display with Flip Lock
  • Extended cables available (up to 75 m/250 ft) for underwater or remote measuring
  • Mils/Microns/mm switchable

Powerful

  • Statistics mode continually displays/updates average, standard deviation, min/max and number of readings while measuring
  • NEW Screen Capture—save 100 screen images for record keeping and review
  • HiLo alarm audibly and visibly alerts when measurements exceed user-specified limits
  • NEW Instant-on feature quickly powers up the gage if recently powered down
  • NEW Up to 30% longer battery life
  • USB port for fast, simple connection to a PC and to supply continuous power. USB cable included.
  • Every stored measurement is date and time stamped
  • Software Updates via web keep your gage current
  • Software Solutions for viewing, analyzing & reporting data

Features:

Standard Models -

  • Include storage of 1,000 readings per probe—stored readings can be viewed or downloaded.

Advanced Models -

  • NEW Storage of 250,000 readings in up to 1,000 batches and sub-batches
  • Live graphing of measurement data
  • NEW Prompted Batch Mode—create pre-defined batches with on-screen text and image prompts for each reading
  • 3 Scan Modes — increase measurement speed to 180+ readings per minute
    • Normal – take continuous readings without lifting the probe
    • Statistics – take continuous readings and record average, standard deviation, min/max thickness and number of readings while scanning
    • Limited Count Average – take continuous readings up to a user-specified count. The gage displays and records the average of the readings.
  • NEW Touchscreen keyboard for quickly renaming batches, adding notes, and more
  • Multiple stored calibration adjustments for measuring on a variety of substrate conditions
  • NEW Calibration Adjustment Reporting feature documents calibration adjustments into PosiSoft software reports
  • NEW SSPC-PA 2, ISO 19840, and IMO PSPC 90/10 modes help users comply with standards by prompting for min/max specifications, displaying the necessary readings, and automatically calculating statistics with a pass/fail result
  • WiFi technology wirelessly synchronizes with PosiSoft.net and downloads software updates
  • Bluetooth 4.0 Technology for data transfer to a mobile device running the PosiTector App or optional portable printer. BLE API available for integration into third-party software
  • Integrate with third-party software, drones, ROVs, PLCs, and robotic devices using several industry-standard communication protocols
  • NEW Connect a Bluetooth barcode scanner or keyboard to instantly annotate readings and batches
