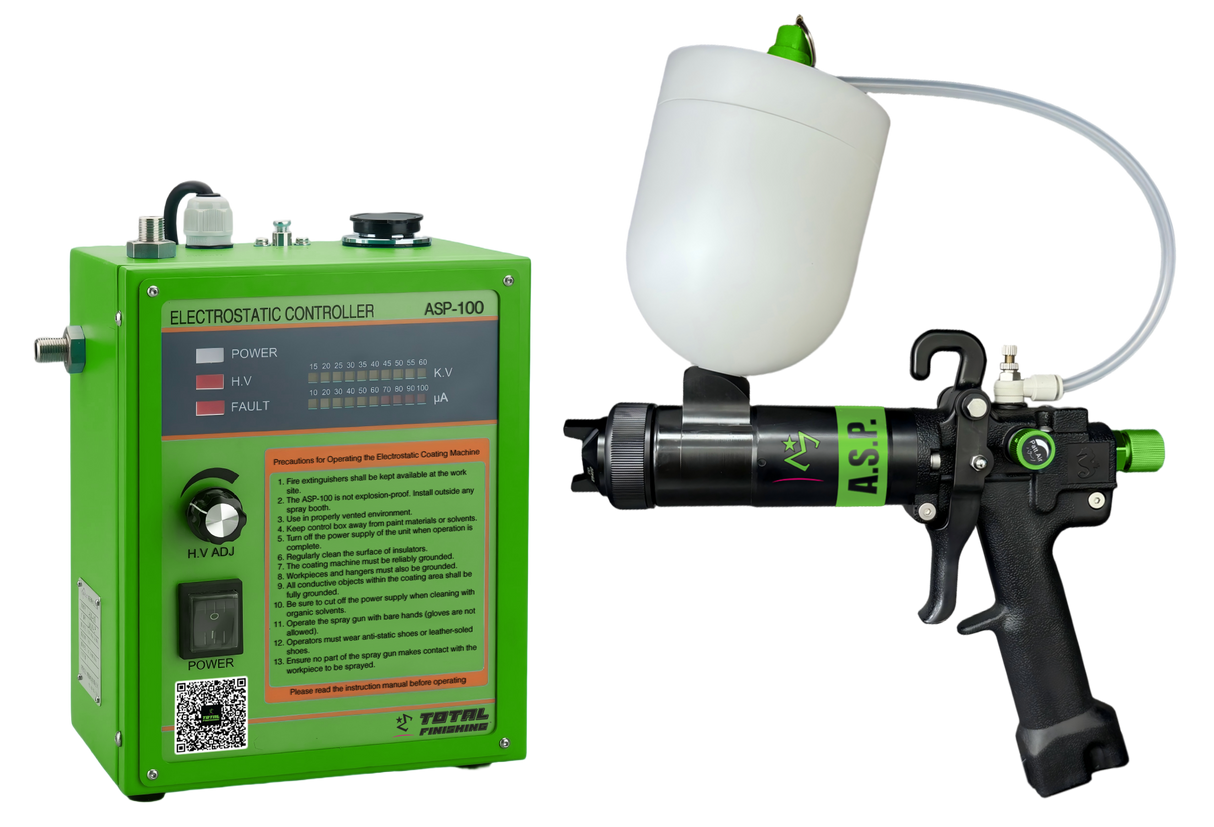

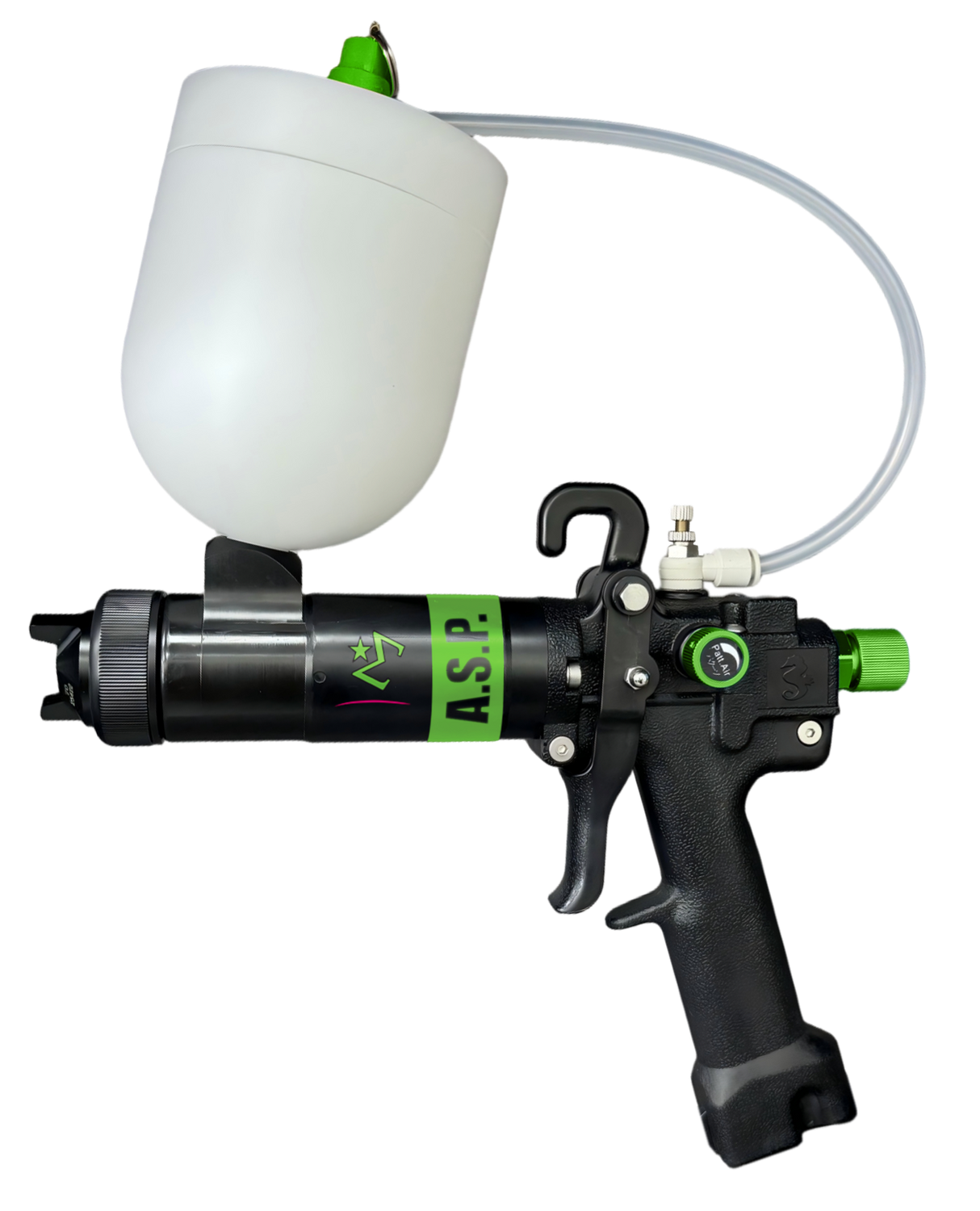

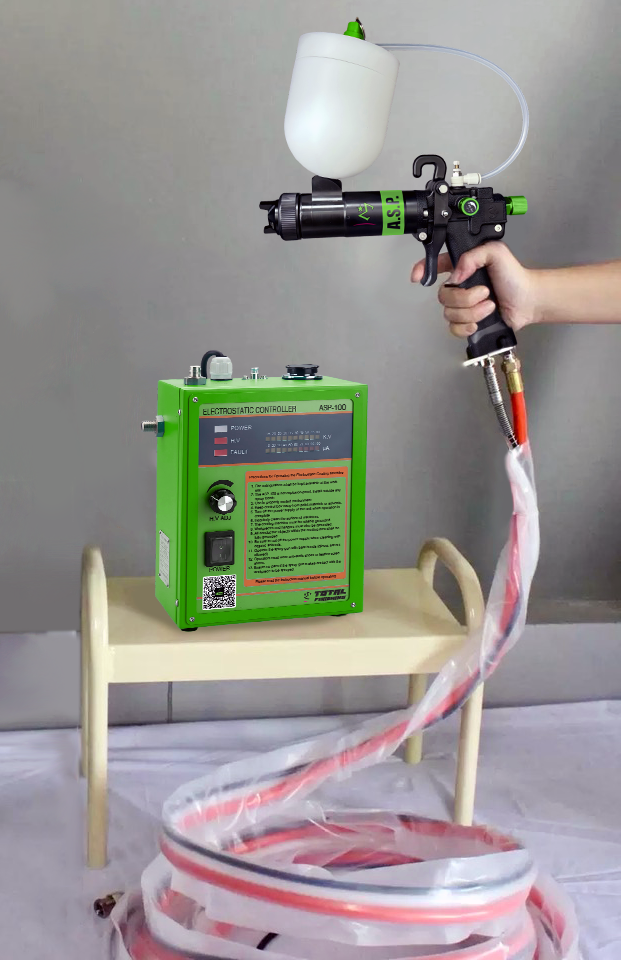

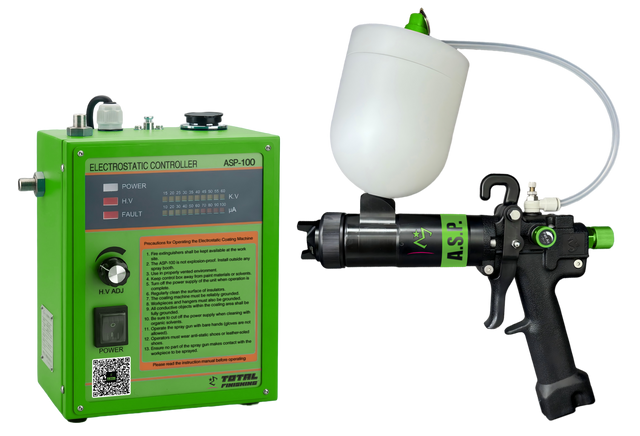

Total Finishing A.S.P. Aqua Solvent Pod — Manual Electrostatic Spray Gun
Total Finishing A.S.P. Aqua Solvent Pod — Manual Electrostatic Spra...
A.S.P. Aqua Solvent Pod
Manual Electrostatic Spray Gun
Manufacturer: Total Finishing
Part Number: TFS-ASP
Description: The Total Finishing A.S.P.™ —Aqua, Solvent, Pod— is a versatile finishing solution designed for applying conductive waterborne coatings and most conductive solvent-based materials. Combining electrostatic transfer efficiency with low-pressure, high-atomization spray performance, the A.S.P.™ produces smooth, uniform finishes while reducing overspray, coating consumption, and material waste.
Its isolated coating pod keeps the finishing material securely contained, allowing for quick flushing, faster color changes, and easier cleanup. The pressurized gravity-feed system also helps the spray gun apply higher-viscosity coatings consistently. Adjustable electrostatic output from 20 to 60 kV gives operators greater control across a wide range of coating materials and finishing applications.
Weighing only 17 ounces, this lightweight electrostatic spray gun features a balanced, ergonomic design that helps reduce operator fatigue during extended use. Its modular construction simplifies routine maintenance and allows individual wear components to be replaced economically. Wear-resistant tungsten steel components provide additional durability in demanding production environments.
For enhanced operator protection, the A.S.P.™ electrostatic spray gun includes built-in over-current protection, an audible warning alarm, and an automatic discharge system.
The Total Finishing A.S.P.™ is ideal for electrostatic wood finishing, cabinetry, furniture, architectural millwork, automotive components, industrial metal products, composite parts, and other applications requiring efficient coating transfer and a high-quality finish.
Features and Benefits
- Manual electrostatic spray gun for conductive coatings
- Compatible with conductive waterborne and solvent-based materials
- Pressurized gravity cup for spraying higher-viscosity coatings
- Adjustable 20–60 kV electrostatic output
- High transfer efficiency for reduced coating consumption
- Reduced overspray and material waste
- Fine atomization for smooth, consistent finishes
- Isolated 10–20 oz coating pod
- Quick flushing, cleaning, and color changes
- Lightweight 17 oz construction
- Balanced ergonomic design for improved operator comfort
- Modular construction for easier maintenance
- Economical replacement of individual wear components
- Wear-resistant tungsten steel components
- Built-in over-current protection
- Audible safety alarm with automatic electrostatic discharge

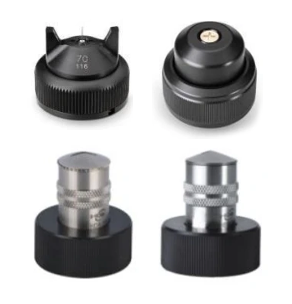

| High Atomization Nozzle Options |
| Nozzle Type | Model | Specifications | Image |
| Fan Nozzle | ASP-70 | Caliber (mm): 1.2, 1.5 Atomization Pressure (Mpa): 0.05/~0.5 Coating Output (ml/min): 100~400 Spray Width (mm): 100~400 Air Consumption (Nl/min): 180 |
 |
| Round Nozzle | ASP-35 | Caliber (mm): 12 Atomization Pressure (Mpa): 0.08/~0.15 Coating Output (ml/min): 50~300 Spray Width (mm): 160 Air Consumption (Nl/min): 100 |
 |
| Round Nozzle | ASP-18 (With Teeth) |
Caliber (mm): 22 Atomization Pressure (Mpa): 0.08/~0.15 Coating Output (ml/min): 20~300 Spray Width (mm): 70 Air Consumption (Nl/min): 180 |
 |
| Round Nozzle | ASP-20 | Caliber (mm): 22 Atomization Pressure (Mpa): 0.08/~0.15 Coating Output (ml/min): 20~300 Spray Width (mm): 70 Air Consumption (Nl/min): 180 |
 |
|
Nozzle Descriptions:
|
| Specifications |
| Voltage Output: | DC 20–60 kV |
| Input Air Pressure: | 30–90 PSI |
| Air Consumption: | 8–12 CFM at 60 PSI |
| Maximum Air Pressure: | 90 PSI |
| Cup Capacity: | 10–20 oz. / 300–600 cc |
| Gun Weight: | 17 oz. |
| Power Requirement: | 120V AC, 60 Hz |
Literature:
