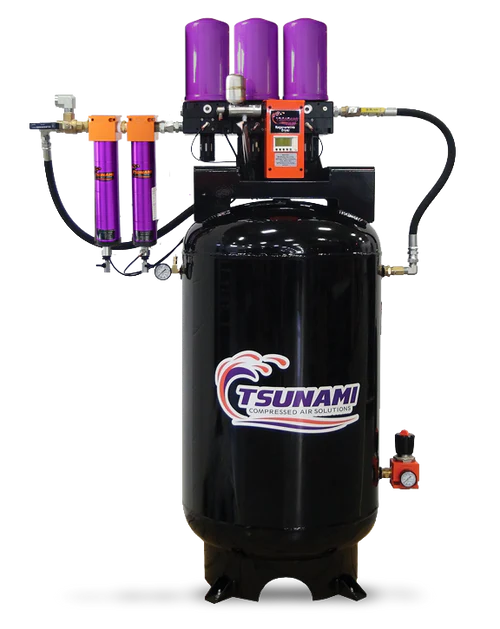

Ultra Regenerative Dryers - Tank Mounted

$7,054.00

This product is sold out

Ultra Regenerative Dryers - Tank Mounted

Manufacturer: Tsunami

Part Number:  21999-0810, 21999-0815, 21999-0820, 21999-0830

Description:

Whether supplying air to your entire facility or isolating a specific tool or application, Ultra Series regenerative drying systems provide world-class Tsunami clean air technology at an affordable price. The Tsunami Regenerative Dryer System uses the latest technology to provide your facility with the cleanest, driest compressed air available.

Tsunami systems, unlike most of their competitors, are complete systems.

This includes the Tsunami water separators and Tsunami oil coalescing filters. Tsunami systems use Moisture Minder automatic piston drains to assure proper draining of water and oils before the dryer. We can configure systems to provide very low dew points (down to -80° F) or very low relative humidity (down to .01%) with very low sweep rates. Flow rate and sweep rate determine the quality of your compressed air. PLC controls the cycling of the dryers and a built-in LED display advises the user when preventive maintenance is required on the oil coalescing element.

Key features and benefits:

  • Provides Ultra-low dex points, down to -80°F.
  • Low relative humidity, down to .01% RH
  • The factory is expandable
  • Made in America



Part Number 21999-0810 21999-0815 21999-0825 21999-0830
Horsepower 10 15 20 30
Max CFM: 40 60 80 120
Port Size (NPT): 1 Inch 1 Inch 1 Inch 1 Inch
Drain: Pneumatic Pneumatic Pneumatic Pneumatic
Max PSI: 175 PSI 175 PSI 175 PSI 175 PSI
Max Temp: 150 Degrees F 150 Degrees F 150 Degrees F 150 Degrees F
Dimensions: 69" X 51" X 28" 69" X 51" X 28" 69" X 51" X 28" 69" X 51" X 28"



Site Navigation -

Wall Mounted Dryers

Rail-Mounted Dryers

Literature -

Spare Parts -

Part Part Number
Description
A 21999-0707 Piston Replacement Kit for Regenerative Dryers
B 21999-0976 Tsunami Tower Replacement Pure 1, 3, 5
B 21999-0976-BK Tsunami Tower Replacement Pure 1, 3, 5 - Black
B 21999-0349 Tsunami Tower Replacement Pure 7, 10, 20, 30 & Ultra Dryers
B 21999-0349-BK Tsunami Tower Replacement Pure 7, 10, 20, 30 & Ultra Dryers Black
C 21999-0672-10 PLC Controller -10 HP Regenerative Dryer
C 21999-0672 PLC Controller -15 HP+ Tsunami Regenerative Dryer
C 21999-0672-BK Custom Dryer PLC - No Drains
21999-0951 Pneumatic Timer Control - Two Outputs
21999-0714 PLC Power Supply for Tsunami Regenerative Dryer
21999-0941 Tsunami Timer Valve Assembly
21999-0797 Tsunami Air Valve Replacement
21999-0504 12v DC Timer / Coil Assembly
21999-1012-24 24v DC Timer / Coil Assembly
610928-01 110v AC Timer / Coil Assembly
610934-01 220v / 230v AC Timer / Coil Assembly
21999-0650 Tower Mounting Stud / Dryer Regen. Valve - Pure 7, 10, and Ultra Series Dryers
21999-1108 Tower Mounting Stud / Dryer Regen. Valve - Pure 1, 3, & 5 Series Dryers
940825 Muffler Replacement - Pure 1, 3, 5, 7, Only
21999-0700 Muffler Replacement - Pure 10 and Ultra Series
21999-1046 Muffler Core Replacement (10pc Minimum Order Quantity - Pure-10 & Ultra Dryers Only)
21999-1042 Tsunami Dryer Heater 110/120v AC, 700W
21999-0890 Tsunami Dryer Heater 12v DC, 120W
21999-0937 Tsunami Dryer Heater 24v DC, 120W
21999-0712 Energy Saver Kit (Ultra dryer accessory only)
21999-1038 Modular Dryer Subassembly Replacement - Ultra / Pure-10-20-30
