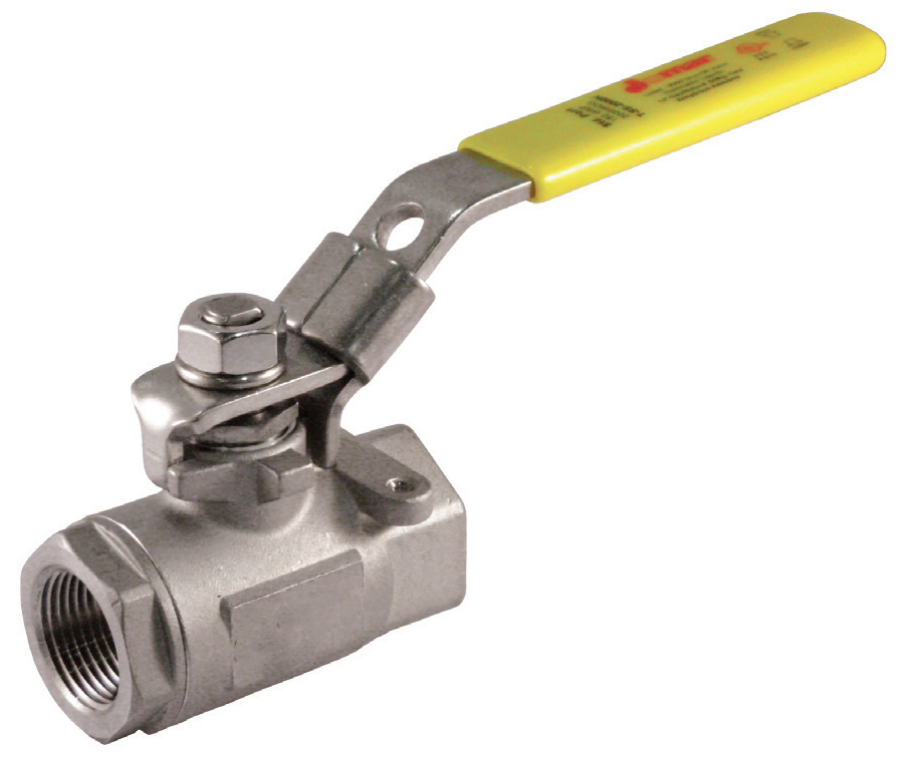

1/4" Female 2-Piece Standard-Port Ball Valve, Stainless Steel
1/4" Female 2-Piece Standard-Port Ball Valve, Stainless Steel
1/4" Female 2-Piece Standard-Port Ball Valve, Stainless Steel
Manufacturer: Total Finishing
Part Number: TFS100-931.SS
Description: This 1/4" stainless steel ball valve is built for reliable shutoff in high-pressure fluid and air applications. Featuring a durable 2-piece stainless steel body, standard port design, threaded connections, and a lockable lever handle, it provides dependable flow control in industrial, finishing, plumbing, and process systems. Rated for up to 2000 WOG, this valve is a compact, corrosion-resistant option for demanding service environments.
- Type: Stainless steel ball valve
- Body style: 2-piece
- Port: Standard port
- Connection: Threaded
- Size: 1/4" F
- Rating: 2000 WOG / 150 WSP
- Features: Solid ball construction, lockable latch handle, 100% leak tested, 29 in-Hg vacuum rating
| Specifications: |
 |
| Dimensions: |
| Size | A | B | C | D | Torque |
| 1/4" | 2.07 | 1.76 | 4.33 | 0.37 | 35 |
| Material Specifications: |
| Ref. No. | Part | Material |
| 1 | Body | CF8M Stainless Steel |
| 2 | End Connection | CF8M Stainless Steel |
| 3 | Ball | CF8M Stainless Steel |
| 4 | Seat (2) | Hostaflon® TFM 1600 |
| 5 | Stem | 316 Stainless Steel |
| 6 | Packing (2) | RPTFE |
| 7 | Stem Seal | Hostaflon® TFM 1600 |
| 8 | Packing Gland | 316 Stainless Steel |
| 9 | Body Seal | Hostaflon® TFM 1600 |
| 10 | Handle | 304 Stainless Steel |
| 11 | Handle Nut | 304 Stainless Steel |
| 12 | Lock Washer | 304 Stainless Steel |
