LPI Lift Systems  |  SKU: LPSPH35123120

LPI Lift Systems Work/Catch Platforms LPSPH

Regular price $24,475.00
Shipping calculated at checkout.

LPI Lift Systems Work/Catch Platforms LPSPH is backordered and will ship as soon as it is back in stock.


Care information

Display general product information or specific product information using metafields.

Delivery and Shipping

Add some general information about your delivery and shipping policies.

Add a stand out message for your customers

Description

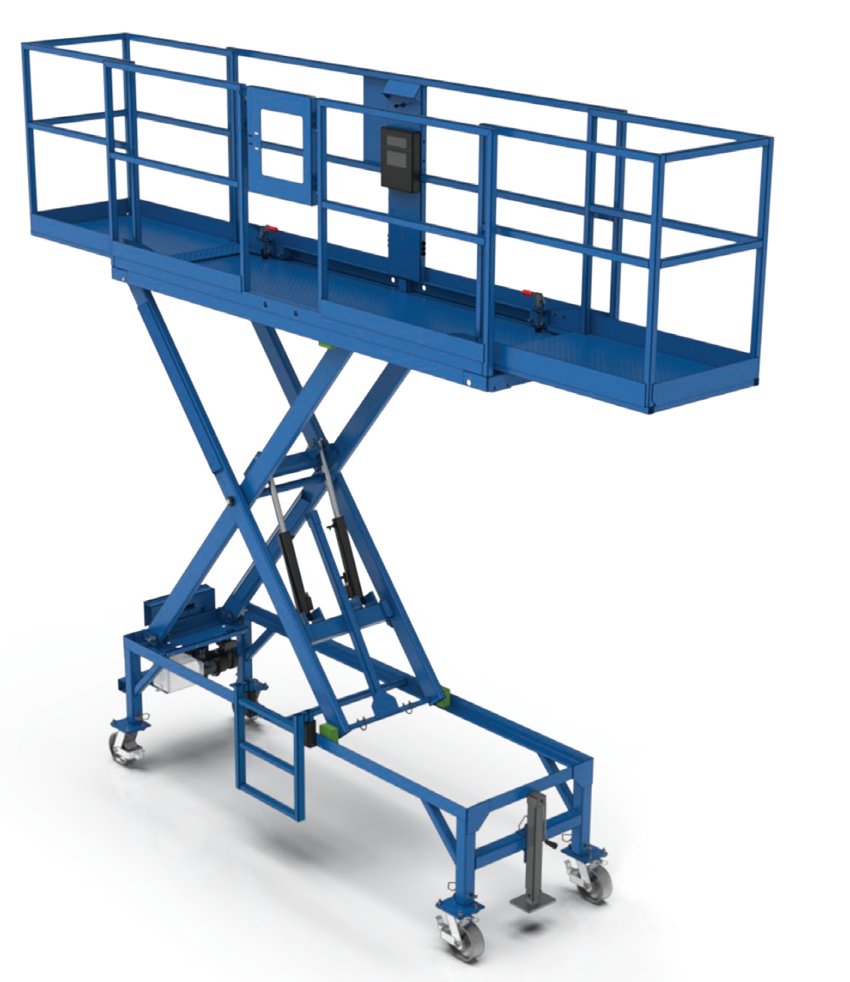

Work/Catch Platforms LPSPH

Manufacturer: LPI Lift Systems

Part Number: LPSPH35123120

Description: The LPSPH (Work/Catch) platform is a versatile and easily customized lift system with adjustable length platform. With roll-outs on each end, the platform can be expanded from 10’-3” retracted, to 16’-6” fully expanded. The starting height of the platform can be adjusted up or down to allow for positioning the lift over obstacles.

Features:

  • Raised platform height: Up to 10"-3"
  • Minimum lowered platform height*: 2'-3" +9" adjustment (*dependent on straddle base option)
  • Operator Platform Capacity: 1,500 lbs.
  • Roll-Out Capacity: 300 lbs.
  • Platform Length: 10'-3" (extendable to 16'-6")
  • Platform Width: 35" (roll-outs 30")
  • 4" high guard rail with self-closing gate
  • Pneumatic/Hydraulic power for hazardous areas
  • Electric/Hydraulic power for non-hazardous areas
  • Filter/Regulator/Lubricator (pneumatic option only)
  • Primary air connection & shut-off on lift base
  • Quick and easy connection to air source
  • Locking swivel casters
  • Adjustable height legs (for positioning lift over products or fixtures)
  • Platform can be modified for size & entry gate location

Controls / Connection:

  • Primary air source connection: 1/2" NPT
  • Auxiliary unoiled air connection in platform: 3/8" NPT
  • Lift requires a clean, dry air supply (50 scfm @ 90 psi with a 40°F dew point)
  • Fixed hand control with Emergency stop
  • Base control to raise and lower platform

Travel Speed:

  • Z-Axis (up/down): 12 to 15 fpm

You will be contacted with a freight quote for shipping. Forklift may be required at time of delivery
