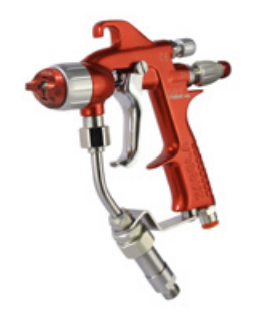

Mini Xtreme Mix Air Assisted Airless Spray Gun
Manufacturer: Sagola
Part #: PG3513020X
Description: SAGOLA presents its new spray gun which is the result of great design work, obtaining one of the smaller and more ergonomic mix guns on the market. Ideal for painting parts with complex shapes. A perfect fusion between speed and high transfer (above 80%) with quality finishes of XTREME aerographic systems.
- Full regulation control of fan for maximum precision.
- Designed for UV and waterborne paints.
- Ideal for the furniture sector, industry and industrial bodyshop.
- High resistance and anodized forged aluminium body.
- Nozzle and Needle fittings made of Tungsten carbide.
- Smooth action trigger made of 100% Stainless steel.
- Exterior and interior corrosive protection.
Scope of Delivery:
- Sagola Mini Xtreme Mix Aircap
- 100 Mesh Product Filter (x1)
- Yellow Spring (Max WP 120 bar / 1740 psi)
- Red Spring (Max WP 200 bar / 2900 psi)
- Cleaning Brush, Wrench
- Tungsten Carbide Needle & Nozzle Kit
- Air Assisted Airless Spray Tip (x1)
Specifications:
Compatible with Elcometer Baltic & Riga Air Assisted Airless Spray Pumps
| Air inlet: | 8mm Quick Connector |
| Product inlet: | 1/4" Swivel Coupling |
| Max. working pressure with yellow spring: | 120 bar |
| Max. working pressure with red spring: | 200 bar |
| Product filter: | 100 mesh |
| Air consumption: | 150 L/min |
| Weight: | 1.2lbs (555g) |
Literature:
-
PT56410110 Spray Gun Product Filter Holder
-
PT56418057 Spray Gun Product Filter Kit: includes Product Filter Holder, 100 Mesh Product Filter (x1) & 60 Mesh Product Filter (x1)
| Ref. No. | Part No. | Description |
| 1 | 56410768 | Mini Xtreme Mix Aircap |
| 2 | 81460529 | Air Assisted Airless Spray Tip |
| 3 | 54251011 | |
| 4 | 10011250 | Needle / Nozzle Kit |
| 5 | 56418614 | Needle Packing Kit |
| 6 | 50850605 | |
| 7 | 51910623 | |
| 8 | 57250415 | |
| 9 | 56418613 | |
| 10 | 56418615 | |
| 11 | 51910235 | |
| 12 | 57251903 | |
| 13 | 55751810 | Straight Connection 1/4" |
| 14/1 | 56418053 | Product Filter 100 Mesh (10 Pack) |
| 14/2 | 56418054 | Product Filter 60 Mesh (10 Pack) |
| 14/3 | 83660037 | Spray Tip 100 Layer Filter |
| 15 | 56410104 | |
| 16 | 56418046 | |
| 17/1 | 54710288 | |
| 17/2 | 54710289 | |
| 18 | 56415259 | Fluid Adj Knob |
| 19 | 56411623 | Needle Guide Box |
| 20 | 56418612 | Valve Kit |
| 21 | 50810202 | Guide Box Closing Washer |
| 22 | 54110012 | Air Valve Seat |
| 23 | 54710312 | Conical Spring |
| 24 | 50210214 | Key Assembly For Changing Air Valve Seat |
| 25 | 50210201 | |
| 26 | 56415256 | |
| 27 | 50810258 |
