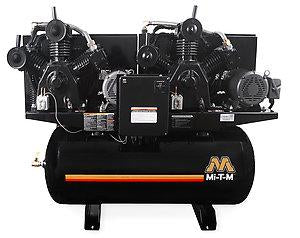

120-Gallon Two Stage Electric Duplex - AED-20315-120H

$18,474.00



AED-20315-120H

AED Series – 15.0 HP Duplex Horizontal

The horizontal 120-gallon air compressors can be installed in service shops where compressed air is a required utility. Powerful and efficient, they are designed to maximize production.

Compressor Pump: Splash lubricated · Stainless-steel braided discharge hose · Large canister intake filter · Oil lever sight indicator

Motor: Industrial low RPM motor · Magnetic start for thermal overload protection

Frame: Powder coated ASME coded 120-gallon receiver tank · 3/16-inch base plate to reduce vibration · Totally enclosed powder coated belt guard

Components: ASME safety valves · Tank pressure gauge · Hour meter · Large fly wheel · Tank shut-off valve · Intake filter/silencer · 3 position switch - compressor 1 (lead motor pump), automatic alternating and compressor 2 (lead motor pump)



Specifications

  • CFM @ 175

    93.0

  • Horsepower/Motor

    15.0 HP, 200V, 3Ø, 88.0A

  • Pump RPM

    810

  • Compressor

    Two Stage, Cast Iron

  • Tank Size

    120 gallon

  • Bolt Down (LxW)

    34.5 x 23.5 in.

Weights & Dimensions

  • Net Weight

    1471.00 lbs.

  • Shipping Weight

    1550.00 lbs.

  • Length

    74.00 in.

  • Width

    26.50 in.

  • Height

    58.00 in.



Options

  • IX-0001 Vibration Isolator Pads

    Isolators protect the unit from vibration during use; recommended for models that are mounted in service truck applications

  • IX-0006 Electric Tank Drain

    Automatically drains liquid from compressor tank

  • IX-0032 Pneumatic Tank Drain

    Automatically drains liquid from compressor tank

  • IX-0035 After Cooler

    Removes up to 65% of the moisture from discharged compressor air and drops the temperature within 10° of ambient

  • IX-0036 Low Oil Monitor

    Low oil sensor does not allow unit to start when oil levels fall below an adequate level



Limited Warranties:
  • 1 Year Electric Motor
  • 2 Year Pump Exchange
