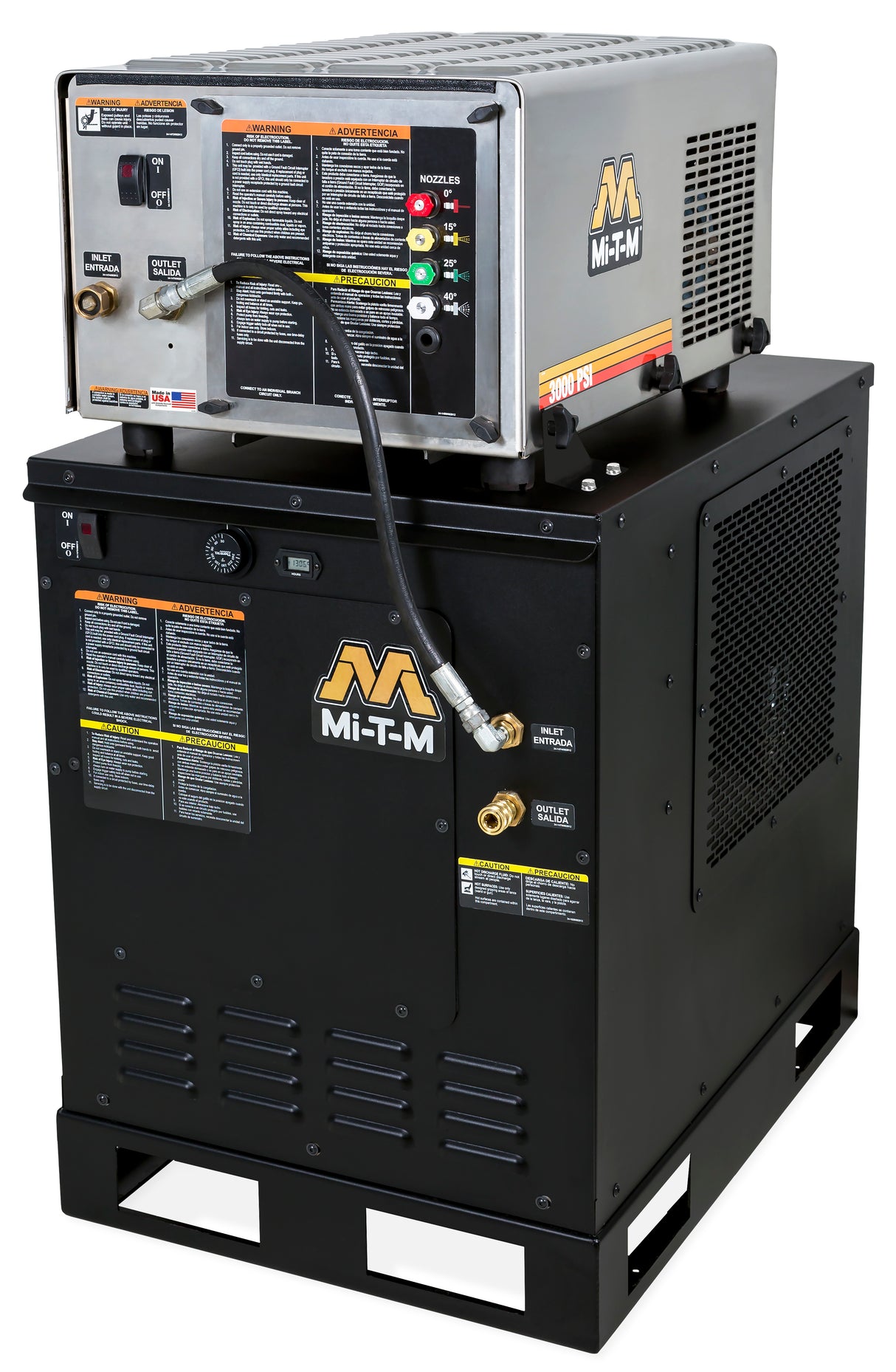

HAE-3004-0E4G
The all-electric HAE Series offers a fast and effective cleaning method without the emission of fuel and exhaust fumes. A patented heat exchange cartridge design provides consistent on-demand hot water, perfect for cleaning food and beverage facilities.
Pump: Factory preset unloader · Stainless-steel and brass unloader valve · Forged brass manifold · Thermal relief valve
Motor: Totally enclosed fan-cooled electric motor with manual thermal overload protection · On/off power switch
Frame: Stainless-steel base and frame with rubber isolators
Component: Time delay shutdown
Heat Exchanger: Used for consistent and efficient on-demand hot water · 120°F to 130°F temperature rise above in-take water, obtained within 3 to 5 minutes · Adjustable thermostat · On/off power switch · Powder coated steel frame · Revolutionary cartridge design · Low maintenance, stainless-steel coils in aluminum casings for maximum efficiencies · Eliminates constant cleaning · Eliminates heat loss
Unit Includes: Quick connect nozzles - 0°, 15°, 25° and 40° · External downstream detergent injector, AW-8400-0021, with detergent nozzle · 50-foot x 3/8-inch wire-braided high pressure black hose with quick connects · Professional-grade insulated trigger gun with safety lock-off · Adjustable pressure insulated dual lance
Specifications
-
PSI
3000
-
GPM
3.9
-
Horsepower/Motor
8.0 HP, 460V, 3Ø
-
Unit Amperage
98.0A
-
Pump
General
-
Mi-T-M No.
3-0202
-
Heater kW
72
-
Temperature Rise
130°F
Weights & Dimensions
-
Net Weight
725.00 lbs.
-
Shipping Weight
830.00 lbs.
-
Length
36.00 in.
-
Width
25.00 in.
-
Height
49.00 in.
Options
-
CX-0069 Auto Start/Stop
When trigger gun is released, the timer will turn unit off; when trigger gun is pulled unit will restart
-
CX-0078 Remote Box
Adds control box which may be mounted away from unit to control on/off, not available on models with auto start/stop
Limited Warranties:
- 1 Year Electric Motor
- 10 Year General Pump
