Ransburg 835020 Topcoat A5 Automatic Powder Applicator
Ransburg 835020 Topcoat A5 Automatic Powder Applicator
Ransburg Topcoat A5 Automatic Powder Applicator
Manufacturer: Ransburg
Part Number: 835020

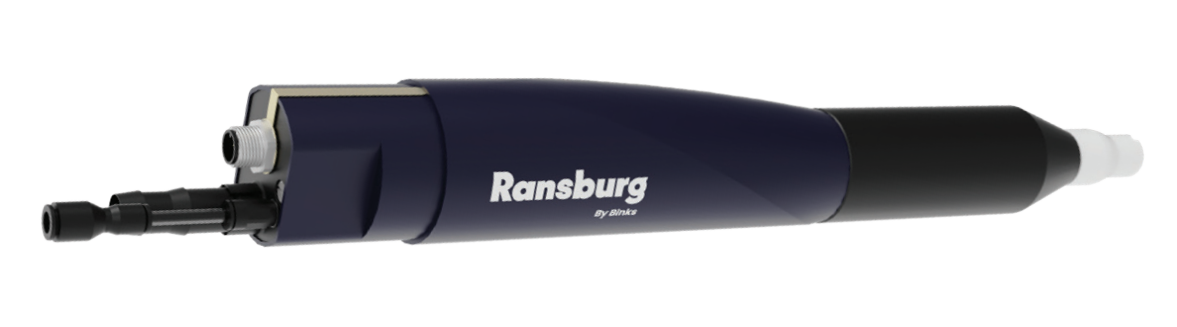

Description: The Ransburg A5 Automatic Powder Gun’s lightweight design utilizes the basic Ransburg Topcoat principles to reduce energy consumption in machine, reciprocator or robot mounted applications. The Gun offers uncompromising performance and efficiency. When combined with the Ransburg controller, the Gun produces a class-leading electrostatic charge within the powder stream ensuring high transfer efficiency. The A5 Gun is designed with a minimum number of replacement parts for ease of cleaning and simple maintenance. Extensions and accessories are available.
Controller Features:
- Touch Screen with intuitive display
- Pre-selectable standard programs
- FM Approved
- Diagnostic functions. Automatic Gun Features
- High quality finish with less back ionization
- Compatible with all powders including metallic flake
- Fast color change
- Extendable tube & click system
| Available Accessories |
 |
| Part No. | Description |
| 615215 | Flat spray nozzle extension F150 |
| 615216 | Flat spray nozzle extension F300 |
| 615218 | Round spray nozzle set R1 |
| 615225 | Round spray nozzle extension set R150 |
| 615226 | Round spray nozzle extension set R300 |
| 615258 | Flat spray nozzle assembly 3 mm (included) |
| 615130-X | Flat spray nozzle assembly 3, 4, 5mm (parallel sides) |
| 615050-1X | Flat spray nozzle extension (150 mm) |
| 615050-3X | Flat spray nozzle extension (300 mm) |
| ELITE A5 AUTOMATIC POWDER APPLICATOR – PARTS LIST |
 |
| Ref. No. | Part No. | Description |
| 1 | 460230 | Nozzle nut, elite |
| 2 | 461775 | Nozzle tube |
| 3 | 615213 | Nozzle holder |
| 4 | 615056 | Assembly, rear cover (attached with 2 screws 419750) |
| 5 | 615057 | Assembly, plug for powder hose (includes O-ring 427061) |
| 6 | 427061-KX | O-ring, powder connector |
| 7 | 460485 | Clip, body |
| 8 | 460105-KX | O-ring, nozzle set |
| 9 | 419738 | Screws for body clips (2 pcs.) |
| 10 | 419750 | Screws for rear cover (2 pcs.) |
| 11 | 615277 | Replacement electrode |
| 12 | 615260 | Electrode wire assembly, flat spray nozzles |
| 13 | 615214 | Assembly, flat spray nozzle and electrode |
| 14 | 615258 | Flat spray nozzle, 3 mm (includes O-ring 460105) |
| 15 | 461601 | Deflector plate |
| 16 | 621211 | Hose adapter |
Literature:
