20C100 Parts Breakdown:

Pump:

Ref. No.	Part No.	Description
N/A	151-780-000	Bare pump, model 20C100 (Ref. 1, 2, 3, 4, 5)
1	146-275-000	Air motor, model 1000-4
2	144-960-000	Fluid section, model C100
3	051-770-001	Tie-rod, connecting
4	953-010-021	Nut, HM 10
5	963-040-021	Washer, MN 10
N/A	050-311-902	Protective spring
N/A	151-775-010	Mounting assembly (Ref. 6, 7, 8, 9, 13, 14, 19)
6	051-770-101	Plate
7	933-011-279	Screw, model H 8 x 20
8	933-151-147	Screw, model SHC M 8 x 10
9	933-011-390	Screw, model HM 8 x 30
10	N/A	Air supply
11	151-790-160	Air supply (motor air)
12	151-740-300	Spraying air kit (spray gun air)
13	963-040-019	Washer, model MN 8
14	953-010-019	Nut, model HM 8

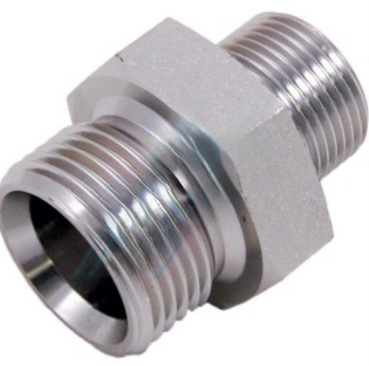

16	050-102-401	Fitting, double male, 1/2 BSP - 3/4 BSP
18	050-102-437	Fitting, fluid inlet
20	149-596-150	Suction rod Ø 25 (Length 600 mm)
	149-596-160	Suction rod Ø 25 for drum 200L (Length : 1m)
21	149-596-152	Strainer Ø 25
22	155-580-300	AIRMIX® filter 3/8, stainless steel
23	055-580-301	Sleeve, stainless steel MM 3/8 NPT
25	049-596-000	Drain rod, stainless steel Ø 16
26	552-473	Nipple, double male, 3/8" - 1/2"
27	552-428	Elbow, BP FF 1/2"
N/A	151-740-200	Atomizing air kit
N/A	151-740-300	Atomizing air kit

Air Motor:

Ref. No.	Part No.	Description
2	046-270-901	Upper flange
3	146-270-902	Lower flange
4	044-570-106	Guide ring
5	144-579-923	Ring, R 8 bis (package of 10)
6	046-230-005	Base, reversing-block
7	109-420-257	O Ring (package of 10)
8	933-151-277	Screw, CHc M 6 x 20
9a	N/A	Reversing block
9b	144-630-720	Right reversing-block with two bearings
10	930-151-446	Screw, CHc M 8 x 35
11	050-311-232	Spring
12	044-570-131	Linkage, female
13	044-570-900	Control fork assembly
14	902-202-002	Retaining ring
15	046-180-003	Rod, driving
16	046-144-907	Nut
17	046-180-007	Rod, piston
18	046-180-010	Seal, ring
19	129-400-902	Seal (package of 10)
20	046-144-901	Tube, connecting
21	000-323-716	Lower locknut
22	044-710-007	Tie-rod
23	963-040-019	Washer, MN 8
24	953-010-019	Nut, HM 8
25	046-270-903	Collector
26	046-270-904	Support (silencer)
27	046-270-905	Silencer
28	933-151-443	Screw, CHc M 6 x 35
29	933-151-122	Screw, CHc M 6 x 8
32	046-180-006	Cover, air motor
33	933-151-497	Screw, CHc M 6 x 40
36	909-420-291	Seal
40	046-275-001	Cylinder
41	100-940-470	Seal, cylinder (x 10)
42	046-144-908	Nut, piston
43	000-323-717	Piston
44	046-275-002	Muffler
N/A	901-180-024	Ground (Length 5 m / 16 ft)
N/A	963-300-016	Washer
N/A	934-011-196	Screw Hc 6 x 16
N/A	146-270-991	Package of seals of the air motor (ind. 5, 7(x3), 11, 18, 19(x5), 36, 41(x2) + package of seals of the reversing block)
N/A	146-270-995	Servicing kit (ind. 4, 43, + package of seals of the air motor + ind. 2, 4, 7, 8, 13 of the reversing block)

Air Motor (Turbo):

Ref. No.	Part No.	Description
2	046-271-001	Upper flange
6	046-271-002	Base, reversing block
50	903-050-511	Distributor, 5/2 - T3
51	046-271-004	Base, distributor
52	906-333-105	Plug, 3/4 BSP (for base)
53	930-151-548	Screw, CHc M 6 x 50
54	905-120-905	Elbow fitting, M 1/4 BSP - T 4x6
55	050-371-001	Hose, 4x6 (length : 25 m / 984")
56	046-250-015	Silencer
58	050-102-215	Fitting, double male, 3/4 BSP
59	904-123-006	Elbow, 3/4
60	050-102-634	Fitting, M 3/4 BSP - 3/4 NPS (air supply)

Reversing Block:

Ref. No.	Part No.	Description
6	144-579-912	Gasket seal (x 10)
7	046-170-508	Base, fixed
8	044-570-324	Base, mobile
9	044-570-325	Pin
10	921-140-102	Spring
11	044-571-006	Stop, spring
12	144-579-922	Ring, model R 10 (x 10)
13	144-579-911	Pin (package of 10 pins + 1 stop ind. 11)
14	144-579-910	Ring, model R 6a (x 10)
16	144-630-415	Cover
17	933-151-277	Screw, model CHc M 6x20
18	906-333-102	Plug, model 1/4 BSP
19	046-170-510	Lever, control
N/A	146-270-950	Package of seals (Ref. 6, 12(x3), 14, 15)
N/A	144-630-425	Servicing kit - bases (Ref. 7, 8)

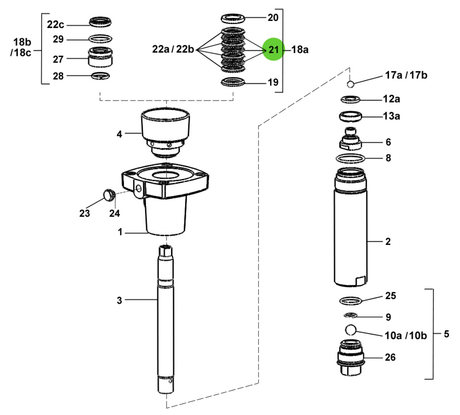

Fluid Section:

For mobile packing with Chevron seals:

Ref. No.	Part No.	Description
1	044-960-001	Upper flange
2	044-960-002	Cylinder
3	044-960-003	Piston
4	044-950-004	Wetting-cup
5	044-950-010	Suction valve assembly
6	044-960-215	Exhaust valve
	044-960-010	Exhaust valve for mobile packing with Chevron seals
8	050-040-317	O Ring
9	044-550-029	Rush
10a	907-414-242	Ball Ø 16 (5/8"), stainless steel 440C
10b	907-414-142	Ball Ø 16 stainless steel 316 L
12a	044-960-204	Washer GT
13a	909-150-215	Seal GT lower (mobile packing)
13c	109-060-310	Piston seal, Polyurethane (pack of 2)
14	909-050-819	Chevron seal, PTFEG for mobile packing with Chevron seals
15	909-051-106	Chevron seal, PE for mobile packing with Chevron seals
16	044-960-009	Set ring, inox (optional) for mobile packing with Chevron seals
17a	907-414-223	Ball Ø 9,52 (3/8"), stainless steel 440C
17b	907-414-123	Ball Ø 9,52 stainless steel 304 L
18a	N/A	Upper packing (Ref. 19, 20, 21, 22a)
18b	144-960-100	Upper packing with GT seal
18c	144-960-150	Upper packing with Polyurethane seal
19	044-960-011	Male ring, stainless steel
20	044-960-012	Female ring, stainless steel
21	909-050-913	Chevron seal, polyfluid
22a	109-050-818	Chevron seal, PTFEG (pack of 10)
22b	909-051-105	Chevron seal, PE
22c	109-060-309	Seal, Polyurethane (pack of 2)
23	144-950-012	Drain plug
24	109-020-401	Flat seal (pack of 5)
N/A	144-960-091	Package of seals (Ref. 8, 9, 10, 13, 17a, 21(x3), 22a(x4), 24, 25)
	144-960-090	Package of seals (Ref. 8, 9, 10a, 14(x2), 15(x3), 16, 17a, 21(x3), 22b(x4), 24, 25) Chevron seals
N/A	144-960-096	Servicing kit (Ref. 5, 6, 12a + package of seals)
	144-960-095	Servicing kit (Ref. 5, 6 + package of seals) Chevron seals
	144-960-159	Servicing kit (Ref. 8, 9, 10a, 13c, 17a, 18c, 25) for waterbased

Air Supply:

Ref. No.	Part No.	Description
1	044-910-121	Pump bracket assembly
2	044-910-122	Pump bracket
3	051-751-011	Air supply bracket
4	144-910-129	Pack of 4 screws, 4 nuts, 4 washers
7	016-470-000	Air regulator, model 1/2, 0 - 10 bar / 0 - 145 psi
8	910-011-402	Gauge, 0 - 10 bar / 0 - 145 psi
12	552-436	Tee, F 1/4"
13	552-475	Fitting, double male, 1/4" - 1/2"
14	552-486	Sleeve, 1/4"
15	552-474	Fitting, double male, 1/2" - 3/4"
16	903-090-208	Valve, F 3/4 BSP
17	903-080-401	Discharge valve - setting 6.5 bar / 94 psi
18	552-438	Tee, F 1/2"
19	050-102-401	Adaptor M 1/2 BSP - M 3/4 NPS
20	050-383-109	Hose ∅ 16 ID / 3/8 dia. (with nuts, 3/4 NPS)
21	552-464	Nipple, double male, 1/2"
22	050-102-633	Adaptor M 1/2 BSP - M 1/4 NPS
23	050-372-226	Hose (black), polyurethane T 8x12
24	050-231-702	Straigth fitting with nut 1/4 NPS
25	050-102-629	Adaptor M 1/2 BSP - M 3/8 NPS
26	050-381-507	Hose ∅ 10 ID / 3/8 dia. for Model 2000-2
26	050-102-401	Adaptor for Models 1000-4 T & 2000-4 T
27	050-383-104	Hose ∅ 16 ID / 3/8 dia. (with nuts, 3/4 NPS)
28	552-411	Adapter M 1/2" - F 1/4"
29	903-130-508	Pressure regulator M 1/4 - T 4x6
30	050-371-001	Hose ∅ 4 x 6 1.2 m long
31	050-102-634	Fitting, double male, 3/4 NPS - 3/4 G
32	552-429	Elbow, FF 3/4"
33	050-102-215	Fitting, double male, 3/4"
34	905-210-305	Plug, G 1/2"

Atomizing Air Regulator:

Ref. No.	Part No.	Description
1	016-380-500	Air regulator, 1/4 - 3.5 bar / 51 psi
2	910-011-404	Gauge, 0 - 4 bar / 0 - 58 psi
3	906-333-102	Plug, 1/4" G
4	050-102-624	Fitting, double male, 1/4 BSP - 1/4 NPS
5	552-464	Nipple, double male 1/2"
6	050-102-211	Fitting, double male, 1/4 BSP - 1/2 BSP
7	552-438	Tee, FFF 1/2" BP
8	552-431	Elbow, MF 1/4"

HP Fluid Filter:

Ref. No.	Part No.	Description
1	155-580-200	Bare filter, stainless steel
2	905-210-304	Plug , stainless steel 3/8 NPT
3	906-314-204	Fitting, double male, 1/4 - 3/8
4	000-750-040	HP valve FF 3/8 BSP
5	050-102-411	Adaptor, stainless steel, double male 18x125 - 3/8BSP
6	905-210-503	Adaptor, stainless steel, double male, 3/8 NPT - # 5 JIC (1/2 JIC)
7	000-161-106	Screen n° 6 (168 µ - 85 Mesh)
	000-161-112	Screen n° 12 (280 µ - 55 Mesh)
11	055-580-201	Base, model 3/8
12	055-580-202	Bowl
13	055-280-002	Nut
14	055-190-007	Stop ring
15	055-190-005	Spring
16	150-040-327	Seal (pack of 5)
