Non-OEM Parts For Gema® PG 2-A Automatic Powder Gun

Parts and Accessories:

Powder Tube Standard -

Ref. No.	Part No.	Description
1	1084602	Shaft complete (with Item 17) (Polarity -)
	1084626	Shaft complete (with Item 17) (Polarity +)
3	1080708	Gasket - 1.5 mm
4	1084488	Gun supporting bracket complete - Powder tube above
6	746481	"PT" Special screw
7	1081800	Gun cable (20 m) complete - for PG 2-A (with Items 8 and 9)
8	697668	O-Ring - ø 10.82 x 1.78 mm - Nitril
9	697692	O-Ring - ø 7.65 x 1.78 mm - Nitril
10	1084359	Powder tube complete with quick-change release for ø 16 / 11 mm Powder hose
11	309036	Powder hose - ø 16 / 11 mm
12	309432	Rinsing air hose - ø 6 / 4 mm
13	602520	Quick-release coupling - ø 6 / 4 mm
14	958050	Flat Jet Nozzle Set - Vented
15	986322	Threaded sleeve
16	1081242	SuperCorona complete
17	1084578	Sealing rod - complete
17.1	697296	O-ring - ø 3.5 x 0.9 mm - Nitril
32	1088010	Powder hose connection - complete
32.1	698010	O-Ring - ø 13.1 x 1.6 mm - Nitril

Nozzle Combinations -

Ref. No.	Part No.	Description

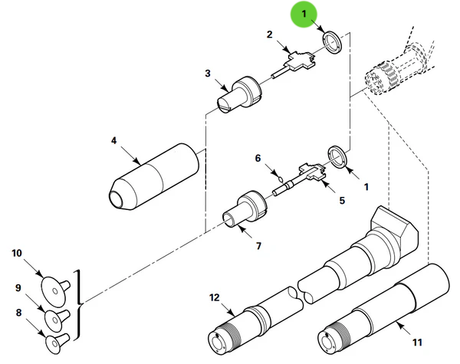

1	956280	Contact ring
2	956337	Electrode holder - complete (Flat Jet Nozzle)
3	956232	Flat Jet Nozzle
4	986322	Threaded sleeve
5	1041987	Electrode holder - complete (Round Jet Nozzle)

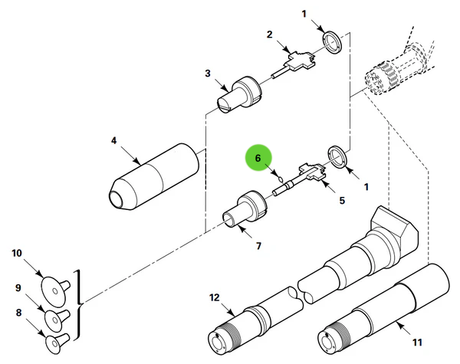

6	694818	O-Ring - ø 5 x 1 mm
7	993861	Round Jet Nozzle

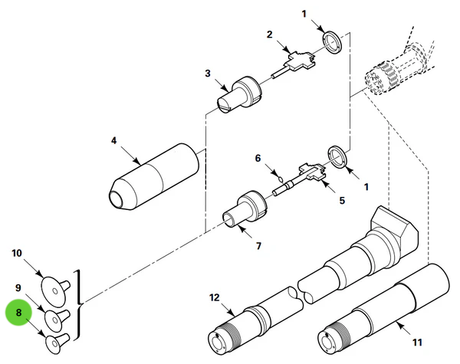

8	994023	Deflector - ø 16 mm

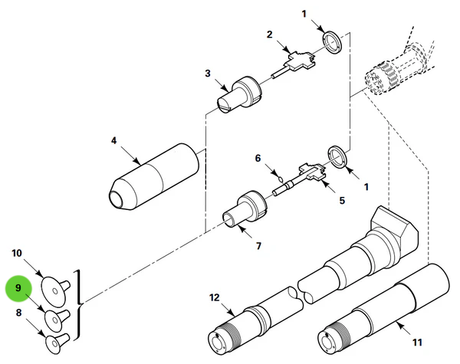

9	993999	Deflector - ø 24 mm

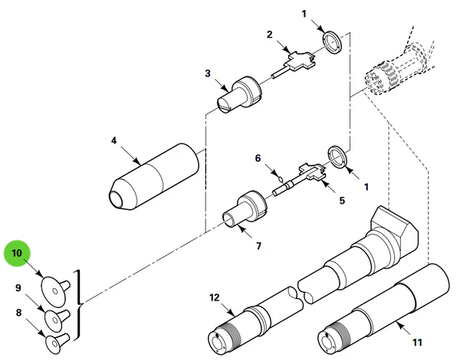

10	993975	Deflector - ø 32 mm
11	1041930	Extention tube - 150 mm
12	1059930	Extention tube - 300 mm
