Non-OEM Parts For Gema® Powder Injector OptiFlow® IG06

Parts and Accessories:

Ref. No.	Part No.	Description

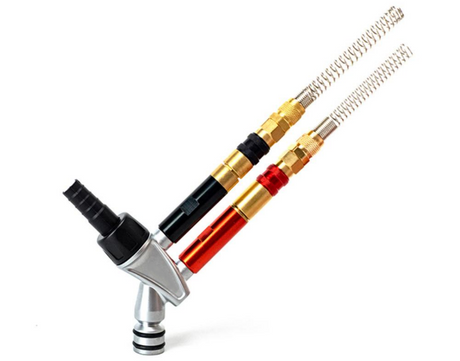

1-13	3023340	OptiFlow IG06 Powder injector

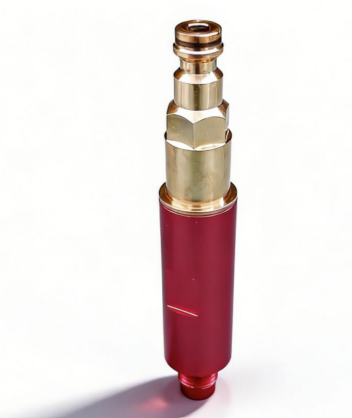

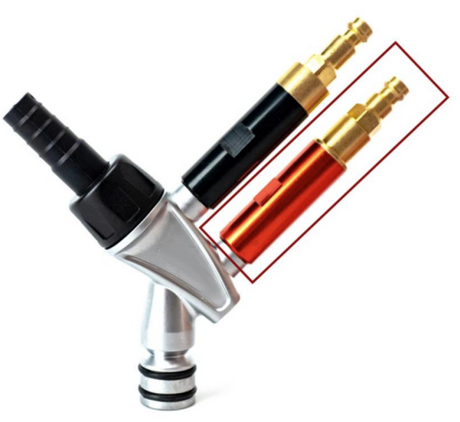

A	3016767	Conveying air check valve unit (red marking) - complete (incl. pos. 6, 8, 9 and 12)

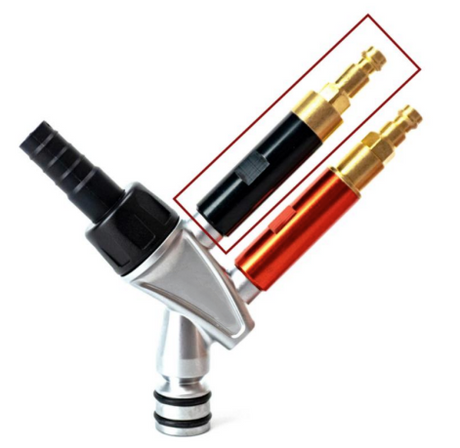

B	3016770	Supplementary air check valve unit (black marking) - complete (incl. pos. 7, 8, 9 and 13)
1	3019452	Injector body (without pos. 2)
2	3023382	O-ring - Ø 16x2 mm
3	3019455	Insert sleeve - PTFE, complete
4	3019593	Hose connection - Ø 10-12 mm, complete (incl. pos 4.1)
4.1	615423	O-ring - Ø 16x1.5 mm
5	3019449	Threaded sleeve
6	3013098	Connector (conveying air) - NW 5.5
7	3013101	Connector (supplementary air) - NW 5.5
8	3001596	O-ring - Ø 11x1.5 mm
9	3011094	Filter element - Ø 9/4x27 mm
10	3019464	Nozzle
11	3023376	Nozzle fixation - complete (incl. pos. 11.1)
11.1	3023379	O-ring - Ø 8x1 mm
12	3013107	Body (red)
13	3013110	Body (black)
16	310500	Conveying air hose - Ø 8/6 mm (red)
17	311268	Supplementary air hose - Ø 8/6 mm (black)
18	784935	Quick release coupling for conveying air hose - NW5-Ø 8 mm
19	784911	Quick release coupling for supplementary air hose - NW5-Ø 8 mm
	315417	Powder hose - 66 type, POE, Ø 16/11 mm, with conductive strip (standard)
	3005019	Powder hose - 74 type, POE, Ø 15/10 mm, with conductive strip
	3005022	Powder hose - 75 type, POE, Ø 18/12 mm, with conductive strip

NOTES:

Gema® is a registered trademark of Gema Powder Coating, and may claim unregistered trademark rights in other words. The advertised parts are intended to fit Gema® spray and powder equipment. They are not, however, manufactured, endorsed, or sponsored by Gema Powder Coating or any of their affiliates, and no warranty by Gema Powder Coating or any of their affiliates applies. Total Finishing Solutions, LLC is not affiliated with or sponsored or endorsed by Gema Powder Coating and is not one of their authorized distributors.
