Non-OEM Parts For Gema® OptiSelect® Manual Powder Gun

Parts and Accessories:

Ref. No.	Part No.	Description
1	3003465	Gun body
2	3004023	Trigger, complete
3	3004461	Compression spring - 0.36x4.2x49.4 mm
4	3002403	Trigger cover
5	3002418	Grasp termination
6	3002409	Radial gasket
7	3004584	Gun cable - L=6 m, complete
8	3002532	Grub screw - M3x8 mm
10	3004017	Powder tube - complete

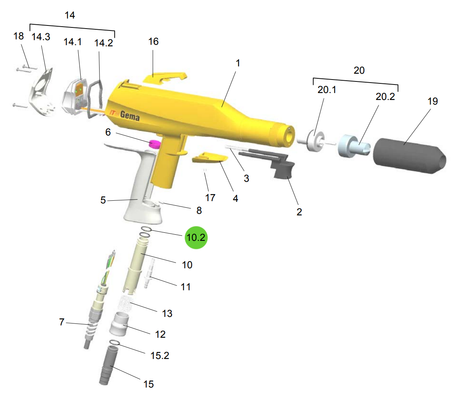

10.2	3002466	O-ring - Ø 12x1.5 mm
11	3002412	Rinsing air connection
12	3002694	Clip ring
13	3004464	Compression spring
14	3001851	Back cover - complete
14.1	3006087	Printed circuit board holder - complete (incl. pos. 14.2)
14.2	3002385	Radial gasket
14.3	3006084	Shield - complete
14.4	607089	Cap screw - M3x8 mm (not shown)
15	3004020	Hose connection - complete, for internal hose Ø 11-12 mm
	3006090	Hose connection - complete, for internal hose Ø 9-10 mm
15.2	3002466	O-ring - Ø 12x1.5 mm
16	3002631	Hook (replaceable)
17	790548	Countersunk head screw - M4x8 mm, plastic

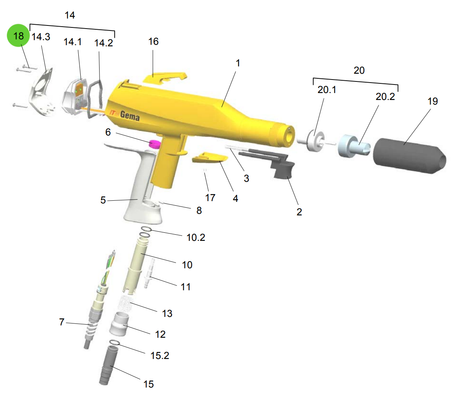

18	3002529	PT-screw
19	See Table	Threaded sleeve - complete
20	See Table	Flat jet nozzle - complete
20.1	See Table	Electrode holder - complete
20.2	See Table	Flat jet nozzle

Flat Jet Nozzles -

Application

Nozzle

Profiles (standard nozzle)

Nozzle Only

Nozzle + Holder

Round Jet Nozzles -

Application

Nozzle

For large, flat surface areas

Nozzle Only

Nozzle + Holder

Deflectors

Ø 16 mm
Ø 24 mm
Ø 32 mm

NOTES:

Gema® is a registered trademark of Gema Powder Coating, and may claim unregistered trademark rights in other words. The advertised parts are intended to fit Gema® spray and powder equipment. They are not, however, manufactured, endorsed, or sponsored by Gema Powder Coating or any of their affiliates, and no warranty by Gema Powder Coating or any of their affiliates applies. Total Finishing Solutions, LLC is not affiliated with or sponsored or endorsed by Gema Powder Coating and is not one of their authorized distributors.
