Non-OEM Parts For Gema® PI 3 Plug-in Injector

Parts and Accessories:

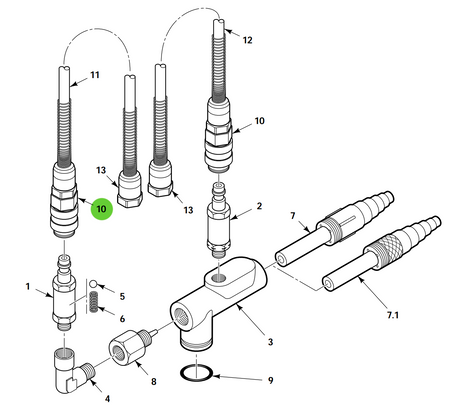

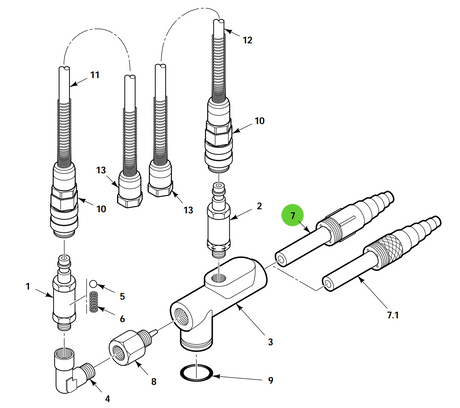

Spare Parts List PI 3-V Injector -

Ref. No.	Part No.	Description
	1035954	PI 3-V Injector (complete)
1	717405	Check valve - conveying air (complete-incl. Items 5, 6)
2	717429	Check valve (with notch) - suppl. air (complete-incl. Items 5, 6)
3	1032933	Injector body
4	712812	Elbow connection - 1/8"-1/8"
5	720504	Ball
6	720528	Spring
7	1033014	Hose fitting - Tefzel
7.1	1062603	Hose fitting - Teflon
8	1097736	Injector nozzle - ø 1.6 mm (with notch)
8.1	1030656	Injector nozzle - ø 1.8 mm (without notch)
9	694551	O-ring - ø 16 x 2 mm
10	609543	Quick-release connector - ø 8 / 6 mm
11	310500	Conveying air hose - ø 8 / 6 mm (red)
12	311268	Supplementary air hose - ø 8 / 6 mm (black)
13	603948	Screw coupling for hose ø 8 / 6 mm
	309384	Powder hose - ø 16 / 11 mm for PG 1 Manual gun
	309036	Powder hose - ø 16 / 11 mm for PG 1-A Automatic gun
