Sarmax Apache 3

$35,995.00
Left Right
Sarmax Apache 3 - Total Finishing Supplies

The  SARMAX impregnating machines (Flood & Brush Coaters) were designed to optimize time and cost,  ensuring a  perfect application of the primer on the wooden elements and an impressive recovery of the liquid in excess.   The  SARMAX  impregnating machines were engineered combining clear and simple concepts of functionality to innovative technical ideas. Thanks to that SARMAX impregnating machines are characterized by the following  features:

➢ Low operating costs

➢ Reliability and durability

➢ Shorter  cleaning and maintenance  times

➢ Excellent and constant results over time.

Our machines are designed and manufactured according to clear and simple principles of functionality,  maintenance, and reliability,  making them one of a kind in terms of new concepts.

EX WORKS Sarmax Italy - There will be customs/VAT due prior to shipping

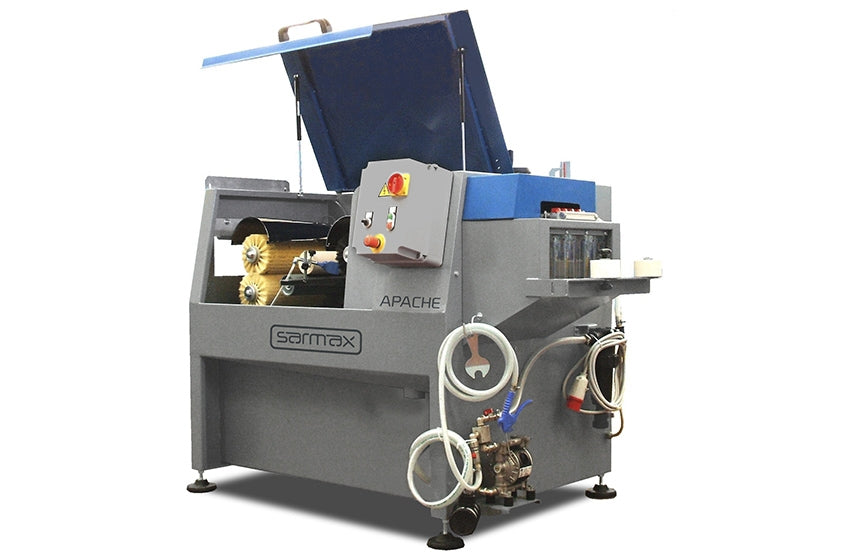

 SARMAX Apache 3

Sarmax Apache 3 with Automatic Loading, Downloading, and Stacking

These are:

❖ The front door opens fully permitting an easy and fast cleaning of the internal parts.

❖ Any work-piece dimension differences are automatically offset by the machine mechanisms.

Technical data:

Approx. overall dimensions  6 ½ x 4 ½ x h 4 ½ ft
Max work-piece width  12 inches
Max work-piece thickness 2 ½ inches
Min work-piece length 3 ft
Automatic spraying pump pneumatic
Feed speed with inverter 33 - 197 f/min
Brush diameter 4 ½ inches
Brushes for each side of the beam nr.2 top, nr.1 bottom
Variable brush speed rotation with inverter 200 – 600 rpm
Motorized rollers diameter 80 mm nr. 3
Blowing units for left & right cleaning nr. 4 (2 left, 2 right)



Machine frame covered with anti-adherent material (Teflon) Tank for brushes deposit and cleaning
Tank for waste impregnant containment, filtering, and re-used Electrics according to UL/CSA norms
Packing in a wooden box with vacuum seal bag

  • Brushes adjustment fast and accurate by external control. A single hand-wheel positions all brushes

  • The operating mechanisms  (chains, pulleys, bearings, and wheels)   are all completely outside the semi-finished product impregnating chamber

  • The parts that could jeopardize rotation of the rollers and the brushes that come into contact with the impregnation and washing liquid are made of non-oxidizing and non-corroding material such as stainless steel, aluminum, plastic

  •  Basement covered with anti-adherent treatment (3 coats of Teflon applied at 800°)

  • Carrying structure made of electrically welded, extra-strong steel

  • Patent system for fast and easy brush fitting and removing
  • A front “shower” area where impregnation liquid is sprinkled

  • A series of counter-rotation brushes opposite to the workpiece feeding direction.

  • A series of roller pressures (top and side) to assure a perfect flow of pieces. The side pressure special insert can be removed to process pieces having small sections

  • A set of blowers remove any excess liquid from dovetail or grooves

  • Electronic variable feeding speed and brushes rotation speed with inverters.

  • Two tanks included: One for impregnant liquid containment and filtering. One for brushes deposit and cleaning.

  • An automatic double-membrane pump with 50 lt/minute capacity

  • A three-level filtering system assures complete removal of any particles or dust that might block the nozzles or create not aesthetic spots on the painted elements.

  1. Sucking filter plunged into the color/impregnant tank. (Picture A)

  2. Basket filter located on top of color/ impregnant tank. (Picture B)

  3. Cylindrical filter located between the membrane pump and the spraying area equipped with a handy tap to remove the liquid left inside and a practical locking/opening device for filter cleaning. (Picture C)

  • Brushes adjustment fast and accurate by external control. A single hand-wheel positions all brushes



  • The operating mechanisms  (chains, pulleys, bearings, and wheels)   are all completely outside the semi-finished product impregnating chamber

  • The parts that could jeopardize rotation of the rollers and the brushes that come into contact with the impregnation and washing liquid are made of non-oxidizing and non-corroding material such as stainless steel, aluminum, plastic

  •  Basement covered with anti-adherent treatment (3 coats of Teflon applied at 800°)

  • Carrying structure made of electrically welded, extra-strong steel

  • Patent system for fast and easy brush fitting and removing
  • A front “shower” area where impregnation liquid is sprinkled

  • A series of counter-rotation brushes opposite to the workpiece feeding direction.

  • A series of roller pressures (top and side) to assure a perfect flow of pieces. The side pressure special insert can be removed to process pieces having small sections

  • A set of blowers remove any excess liquid from dovetail or grooves

  • Electronic variable feeding speed and brushes rotation speed with inverters.

  • Two tanks included: One for impregnant liquid containment and filtering. One for brushes deposit and cleaning.

  • An automatic double-membrane pump with 50 lt/minute capacity

  • A three-level filtering system assures complete removal of any particles or dust that might block the nozzles or create not aesthetic spots on the painted elements.

  1. Sucking filter plunged into the color/impregnant tank. (Picture A)

  2. Basket filter located on top of color/ impregnant tank. (Picture B)

  3. Cylindrical filter located between the membrane pump and the spraying area equipped with a handy tap to remove the liquid left inside and a practical locking/opening device for filter cleaning. (Picture C)

  • Brushes adjustment fast and accurate by external control. A single hand-wheel positions all brushes





  • The operating mechanisms  (chains, pulleys, bearings, and wheels)   are all completely outside the semi-finished product impregnating chamber

  • The parts that could jeopardize rotation of the rollers and the brushes that come into contact with the impregnation and washing liquid are made of non-oxidizing and non-corroding material such as stainless steel, aluminum, plastic

  •  Basement covered with anti-adherent treatment (3 coats of Teflon applied at 800°)

  • Carrying structure made of electrically welded, extra-strong steel

  • Patent system for fast and easy brush fitting and removing
  • A front “shower” area where impregnation liquid is sprinkled

  • A series of counter-rotation brushes opposite to the workpiece feeding direction.

  • A series of roller pressures (top and side) to assure a perfect flow of pieces. The side pressure special insert can be removed to process pieces having small sections

  • A set of blowers remove any excess liquid from dovetail or grooves

  • Electronic variable feeding speed and brushes rotation speed with inverters.

  • Two tanks included: One for impregnant liquid containment and filtering. One for brushes deposit and cleaning.

  • An automatic double-membrane pump with 50 lt/minute capacity

  • A three-level filtering system assures complete removal of any particles or dust that might block the nozzles or create not aesthetic spots on the painted elements.

  1. Sucking filter plunged into the color/impregnant tank. (Picture A)

  2. Basket filter located on top of color/ impregnant tank. (Picture B)

  3. Cylindrical filter located between the membrane pump and the spraying area equipped with a handy tap to remove the liquid left inside and a practical locking/opening device for filter cleaning. (Picture C)

  • Brushes adjustment fast and accurate by external control. A single hand-wheel positions all brushes







  • The operating mechanisms  (chains, pulleys, bearings, and wheels)   are all completely outside the semi-finished product impregnating chamber

  • The parts that could jeopardize rotation of the rollers and the brushes that come into contact with the impregnation and washing liquid are made of non-oxidizing and non-corroding material such as stainless steel, aluminum, plastic

  •  Basement covered with anti-adherent treatment (3 coats of Teflon applied at 800°)

  • Carrying structure made of electrically welded, extra-strong steel

  • Patent system for fast and easy brush fitting and removing
  • A front “shower” area where impregnation liquid is sprinkled

  • A series of counter-rotation brushes opposite to the workpiece feeding direction.

  • A series of roller pressures (top and side) to assure a perfect flow of pieces. The side pressure special insert can be removed to process pieces having small sections

  • A set of blowers remove any excess liquid from dovetail or grooves

  • Electronic variable feeding speed and brushes rotation speed with inverters.

  • Two tanks included: One for impregnant liquid containment and filtering. One for brushes deposit and cleaning.

  • An automatic double-membrane pump with 50 lt/minute capacity

  • A three-level filtering system assures complete removal of any particles or dust that might block the nozzles or create not aesthetic spots on the painted elements.

  1. Sucking filter plunged into the color/impregnant tank. (Picture A)

  2. Basket filter located on top of color/ impregnant tank. (Picture B)

  3. Cylindrical filter located between the membrane pump and the spraying area equipped with a handy tap to remove the liquid left inside and a practical locking/opening device for filter cleaning. (Picture C)



Tariff Notice:
Please note that these products are sourced from Italy and may be subject to additional import tariffs. As a result, your final order total may include an upcharge to cover these tariff-related costs. We strive to keep all fees transparent and will notify you of any adjustments before processing your payment. Thank you for your understanding and support.
