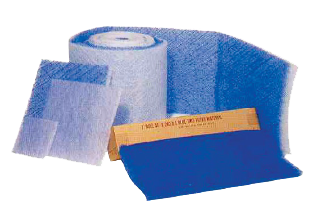

Super Grade Fiberglass Media Roll

Regular price $352.50
Shipping calculated at checkout.


Super Grade Fiberglass Media Roll

Manufacturer: Total Finishing Supplies

Part Number: TFS-585-XXX-400

Description: Supergrade Fiberglass Air Filter Media is available in a wide range of pad and roll sizes. Because all air filtration systems are different, one standard media cannot meet every requirement. With three media depths to choose from it is possible to find the right media for any fiberglass application.

  • Progressive Density - fiberglass media consists of continuous filaments of high quality spun glass. These fibers are formed into a graded density blanket to provide maximum depth loading throughout the roll or pad.
  • Special Adhesive - Each individual fiber is coated with a specially designed adhesive gel. This adhesive enhances the media’s dust holding ability by creating a “wicking” action not provided by competitive medias.
  • Color Coded Media - fiberglass media is tinted on the air entering side for easy installation into frames or blanket systems.
    1" and 2" Media– White, upstream; Blue, downstream
    4" Media– White, upstream; Yellow/Gold, downstream
Depth Avg Arrestance* Dust Holding Capacity Initial Resistance Recommended Velocity (FPM) MERV Rating**
1" 66% 127g 0.035 in W.G 350 3
2" 72% 154g 0.065 in W.G 350 3
4" 85% 260g 0.18 in W.G 350 4

*Based on ASHRAE Test Standard 52.1-1999

**Based on ASHRAE Test Standard 52.2-2007
