Total Finishing Automotive Cross-Flow Eco Style Paint Spray Booth

Automotive Cross-Flow Eco Style Paint Spray Booth

Manufacturer: Total Finishing

Part Number: TFS - Cross-Flow Eco

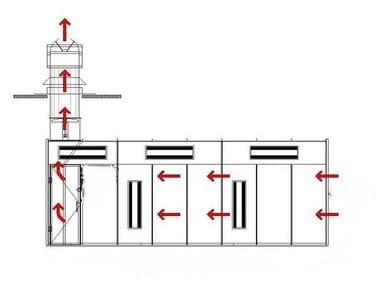

Description: The Cross-Flow Eco Style booth pulls clean air from filtered front doors and exhausted through a filtered to the back exhaust plenum. Cross draft booths are offered in solid back, drive through, reverse flow designs as well pressurized and non-pressurized. Our booths are constructed of 18-gauge, pre-punched single wall panels. Our design allows for easy nut and bolt assembly.

Heavy Duty Construction:

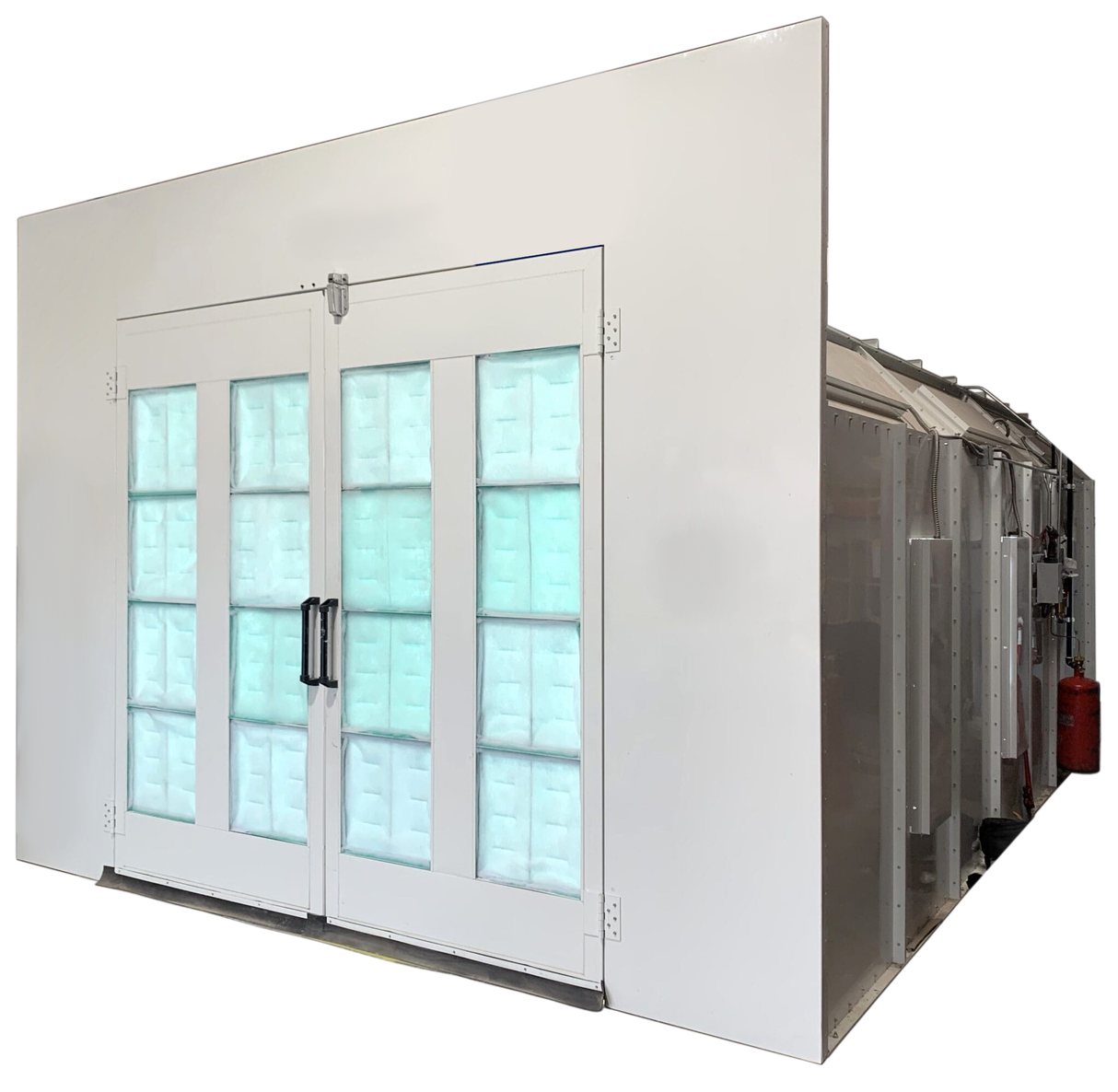

Our single wall booths are made with premium 18 ga. Zinc galvanized steel panels, companion flanged and pre-punched at 6" on center for easy assembly with 1/4" nuts and bolts. Single Wall Booths provide a smooth fit and finish for a stronger, longer-lasting paint booth. Resulting in better airflow, lighting, and strength because of gabled roof design. Total Finishing uses Top-Quality Hardware — including heavy-duty latches, long-lasting brass bushings, durable hollow rubber seals and sturdy handles — to ensure ease of use and many years of reliable service. Hinges and latches stay secured and are fully adjustable for a perfect fit. Our weld-free designs prevent against weak points and corrosion, making for a sturdy, long-lasting booth.

• Fans & Motors:
  • (1) 30" Dia. Tube-axial fan with aluminum spark-proof blades belt drive exhaust fan (1) 3hp 3ph Belt-drive motor 208-230/460v. 60 hz
• Filters:
  • (16) Exhaust filters w/ (16) exhaust filter grids (20) Intake filter pads 20” x 20” x 2” Diffusion Media is a 1” thick, scrim backed
• Doors:

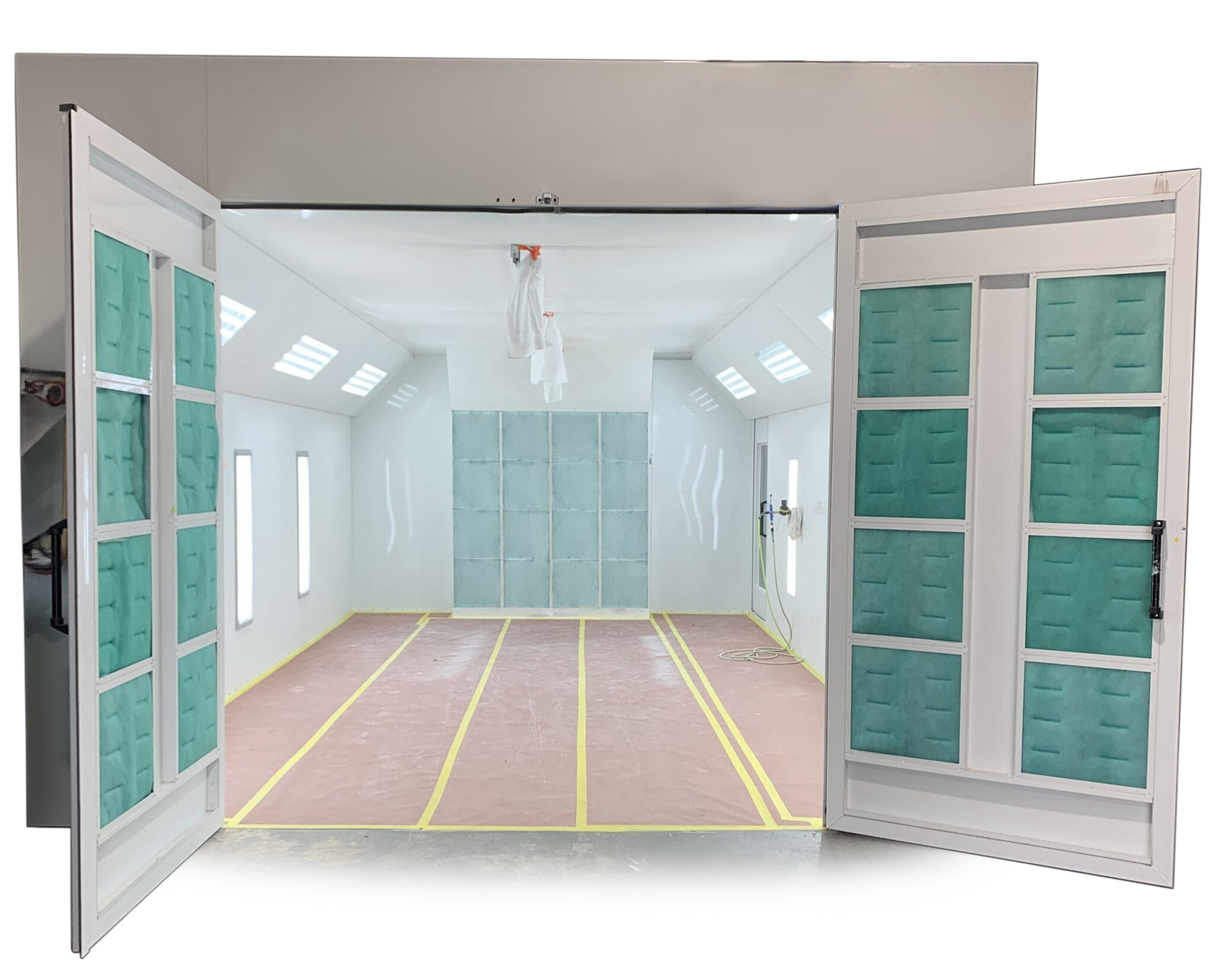

  • (1) Set of FILTER drive-in doors with observation windows, opening Dim. 9'x9'
  • (1) Side access man door - Dimension 3'x7' with observation windows

Additional Booth Options:

• Lighting - Full booth illumination from four-tube, 4’ light fixtures with 4 fluorescent lamps, ETL listed
• White Powder Coated Finish - ultra white inside and out of the spray booth. cover all wall panels, doors frame, floor channels and ceiling panels.
• Ducting Kit - Spray booth exhaust system includes: *(2) Plain duct, (1) Service door duct, (1) Flashing for the roof (1) damper cap

• UL Listed Control Panel with Emergency Stop

Additional Accessories:

• 4' Exhaust Stack Sections

• 3' Exhaust Stack Section with Clean-Out Door
• 45 Degree Elbow
• Upflow Cap with Damper
• Motor Enclosure

• Stack/Connector Ring
• Roof Flashing - Flat Roof / Pitched Roof

NFPA Guide

Ships by Truck Freight.
FOB California - You will be contacted with a freight quote or you can arrange your own freight.  Forklift required at the time of delivery.

Manufacturers Warranty
TFS warrants that all equipment sold hereby will be of the kind and quality described in this agreement. The equipment manufactured by TFS is guaranteed to be free from all latent defects in material and workmanship disclosed under normal use and service, and should any part thereof be found, within one year from the date of shipment, to be so defective at the time shipped, TFS will repair or, at TFS's option, replace said part. In the case of standard apparatus furnished, but not manufactured by TFS, such as fans, motors, ovens, heaters, controls, and light fixtures. TFS extends to the purchaser the same guarantee as is given by their respective manufacturers. TFS is not required to provide equipment or meet performance specifications or standards not expressly set forth in this agreement. TFS's liability hereunder, however, is expressly limited to the materials furnished by it and does not extend to any damages to buildings, contents, products, or persons. This warranty shall not apply to any of TFS's apparatus which shall have been altered or repaired outside of TFS's factory in any way so as, in TFS's judgment, to affect its performance, nor which has been subjected to misuse, negligence, accident or improper installation. IT IS EXPRESSLY AGREED THAT THIS WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES OF FITNESS OR MERCHANTABILITY, EXPRESS OR IMPLIED.

All paint spray booths and spray booth accessories — including but not limited to ducting, lighting, and control panels — are custom made to order and are not refundable
