Total Finishing Automotive Full-Down Airflow Paint Spray Booth - Double Wall

Automotive Full-Down Airflow Paint Spray Booth - Double Wall

Manufacturer: Total Finishing

Part Number: TFS - Full-Down Airflow

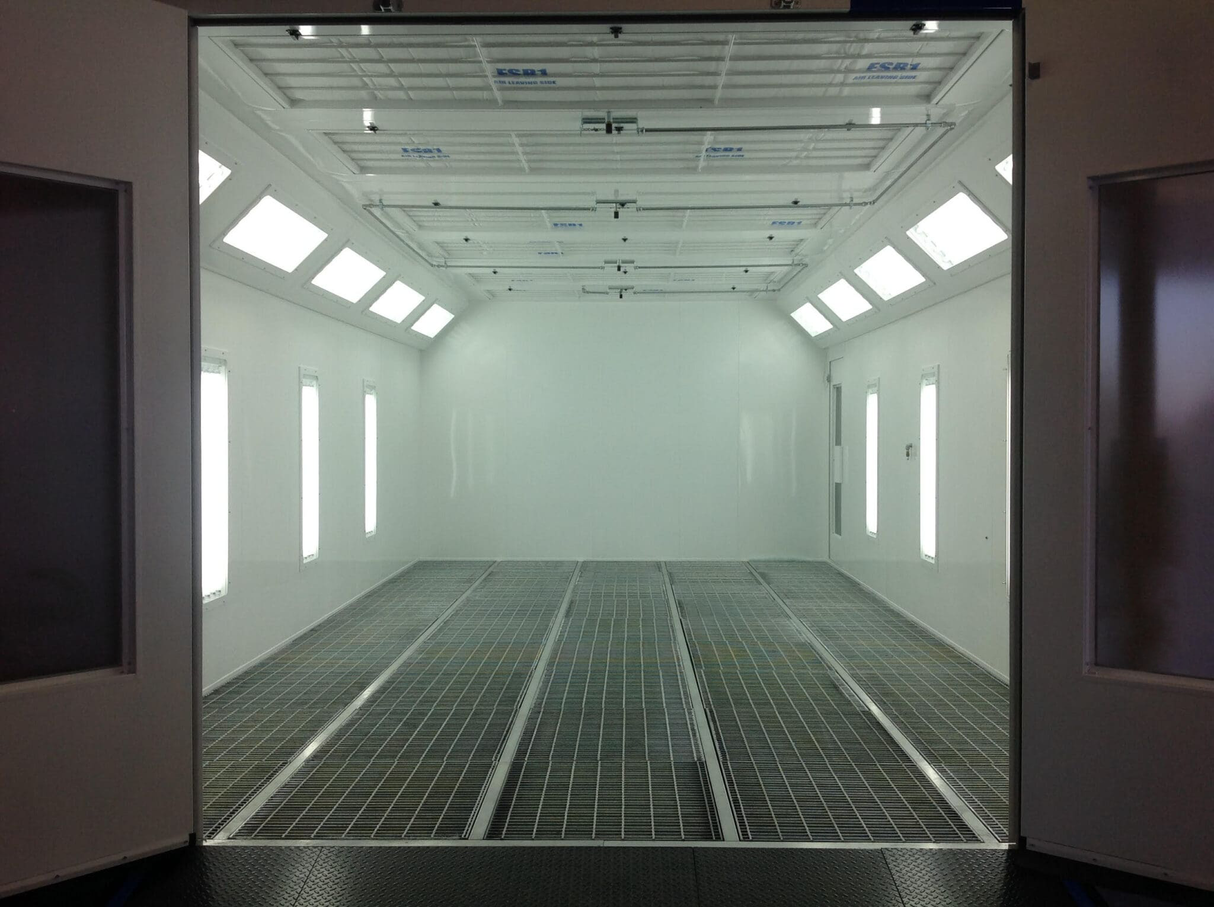

Description: Generally accepted as the best airflow style, downdraft booths do an excellent job of controlling overspray and contamination. The Full-Down Airflow booth is a high-performance, efficient booth with increased horsepower delivering faster results. It pulls clean air from the upper fully filtered ceiling and exhausts the air through fully filtered floor plenum for optimal clean air and features enhanced lighting for detailed work. The increased power and significantly improved turnaround time reduces labor, energy costs, and overall operational expenses, making it a cost-effective solution for businesses. Double Wall Booths provide a smooth fit and finish for a stronger, longer-lasting paint booth. They are insulated to decrease noise and ambient heat outside of the spray booth while keeping heated air inside the cabin.

Heavy Duty Construction:

All of our double wall booths are made with premium 18 ga. Zinc galvanized steel panels, companion flanged and pre-punched at 6" on center for easy assembly with 1/4" nuts and bolts. Double Wall Booths provide a smooth fit and finish for a stronger, longer-lasting paint booth. They are insulated to decrease noise and ambient heat outside of the spray booth while keeping heated air inside the cabin. Better airflow, lighting, and strength because of gabled roof design. Total Finishing uses Top-Quality Hardware - including heavy-duty latches, long-lasting brass bushings, durable hollow rubber seals and sturdy handles - to ensure ease of use and many years of reliable service. Hinges and latches stay secured and are fully adjustable for a perfect fit. Our weld-free designs prevent against weak points and corrosion, making for a sturdy, long-lasting booth.

• Fans & Motors:
  • (1) 34" Dia. Tube-axial fan with aluminum spark-proof blades belt drive exhaust fan 16,000 CFM

  • (1) 10hp 3ph Belt-drive motor 208-230/460v. 60 hz

  • (1) Mark Dwyer manometer kit defines air flow pressure
• Filters:
  • (2) Exhaust filters w/ (2) exhaust filter grids Note: Optional for extra filter exhaust Rolls

  • (6) Intake filter pads 37” x 117” x 2” Ceiling Diffusion Media is a 1” thick, scrim backed
• Doors:

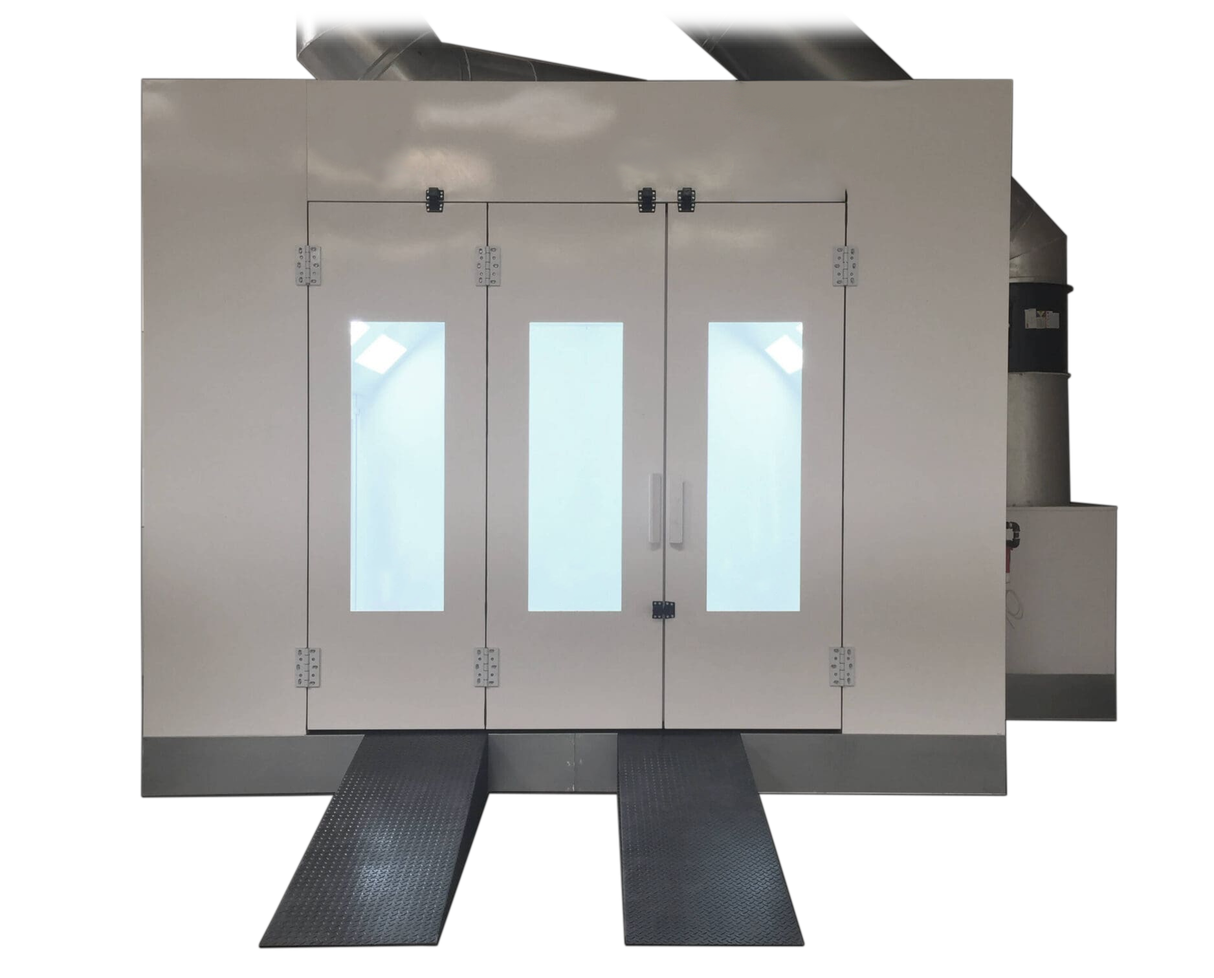

  • (1) Set of DOUBLE WALL TRI-FOLD drive-in doors with observation windows, opening Dimension 9'x9'

  • (1) Side access man door - Dim. 3'x7' with observation windows

Additional Booth Options:

• Lighting - LED LIGHTS (standard) 4’ Long, 4 tubes LED T8 light fixtures 120v.
• White Powder Coated Finish - ultra white inside and out of the spray booth. cover all wall panels, doors frame, floor channels and ceiling panels.
• Ducting Kit - Spray booth exhaust system includes: *(2) Plain duct, (1) Service door duct, (1) Flashing for the roof (1) damper cap

• UL Listed Control Panel with Emergency Stop

Additional Accessories:

• 4' Exhaust Stack Sections

• 3' Exhaust Stack Section with Clean-Out Door
• 45 Degree Elbow
• Upflow Cap with Damper
• Motor Enclosure

• Stack/Connector Ring
• Roof Flashing - Flat Roof / Pitched Roof

NFPA Guide

Ships by Truck Freight.
FOB California - You will be contacted with a freight quote or you can arrange your own freight.  Forklift required at the time of delivery.

Manufacturers Warranty
TFS warrants that all equipment sold hereby will be of the kind and quality described in this agreement. The equipment manufactured by TFS is guaranteed to be free from all latent defects in material and workmanship disclosed under normal use and service, and should any part thereof be found, within one year from the date of shipment, to be so defective at the time shipped, TFS will repair or, at TFS's option, replace said part. In the case of standard apparatus furnished, but not manufactured by TFS, such as fans, motors, ovens, heaters, controls, and light fixtures. TFS extends to the purchaser the same guarantee as is given by their respective manufacturers. TFS is not required to provide equipment or meet performance specifications or standards not expressly set forth in this agreement. TFS's liability hereunder, however, is expressly limited to the materials furnished by it and does not extend to any damages to buildings, contents, products, or persons. This warranty shall not apply to any of TFS's apparatus which shall have been altered or repaired outside of TFS's factory in any way so as, in TFS's judgment, to affect its performance, nor which has been subjected to misuse, negligence, accident or improper installation. IT IS EXPRESSLY AGREED THAT THIS WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES OF FITNESS OR MERCHANTABILITY, EXPRESS OR IMPLIED.

All paint spray booths and spray booth accessories — including but not limited to ducting, lighting, and control panels — are custom made to order and are not refundable
