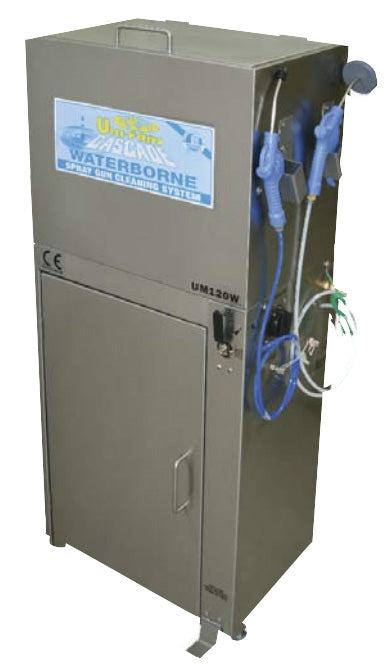

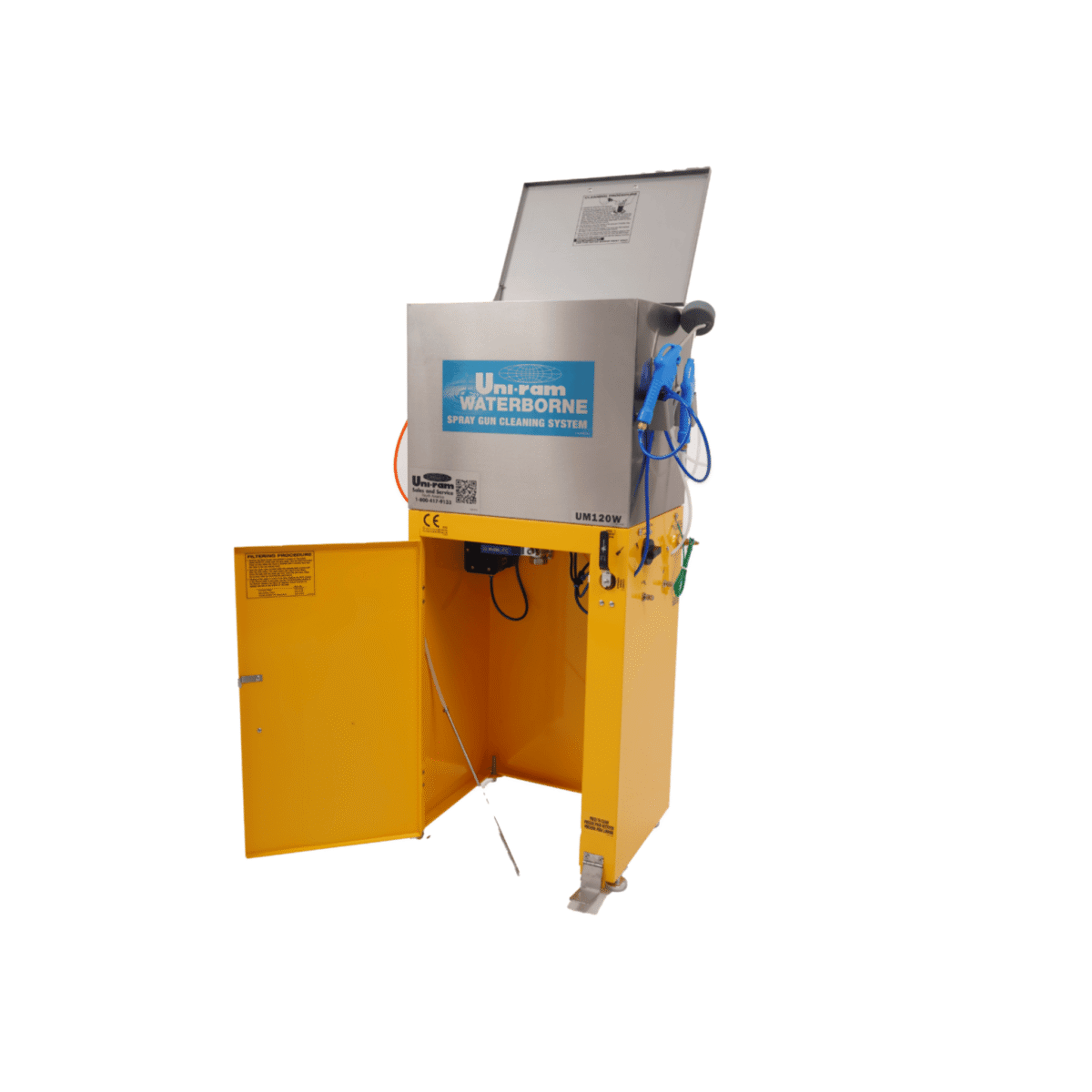

Uni-Ram UM120 Spray Gun Washer, For Waterborne Paints

Features:

• Stainless steel cleaning tank for long life.
• Wash gun and brush are powered by Uni-ram's 5 cm (2") dual diaphragm
pump.
• "Green" Water Recovery System
 • The used water is treated with Uni-ram's flocculating agent,
 COAG-KLEEN FP granules, then filtered. COAG-KLEEN FP causes
 the waste paint to clump at the surface of the water. The filter captures the
 waste paint, allowing the clean water to pass to the capture container.
 • Used water can be reclaimed up to 8 times reducing consumption and
 disposal costs, it is a "Green" approach.
• CE Approved.
• Complete with pressure regulator. Minimum air pressure is 6 bar (85 psi).

2" Dual Diaphragm Pump:

• Air Consumption: 1 CFM
• Output: 1.3 US Gal (5 litres)
 per minute at 75 PSI
 (5.1 kg/cm2)

Manual Waterborne Spray Gun Cleaning:

Waterborne spray guns are cleaned effectively with 3 cleaning tools.
• Wash gun delivers high pressure water to flush the fluid passage in under 15 seconds.
 (See photo below)

• Flow-through brush removes paint from the outside of the spray gun.
• Air gun dries the spray gun.
• The cleaning power of water is enhanced by the addition of AQUA-KLEEN, Uni-ram's
waterborne cleaner.
• The used water can be recovered and reused reducing water consumption and disposal costs, it is a "Green" approach.

Safety:

• Always disconnect this machine from power sources before performing maintenance.
• Do not smoke or use near open flames, sparks or heat.
• Make sure all ground wires are connected and that unit itself is grounded properly.

• Wear safety eyeware, respiratory protection and protective clothing.
• Wear deluxe extended length neoprene gloves; SAS PN 6588 or Thicksters PN 6602-20 through 6605-20

CAUTION
FOR WATERBORNE PAINTS ONLY
THIS UNIT IS NOT DESIGNED FOR USE WITH SOLVENT BASED PAINT
