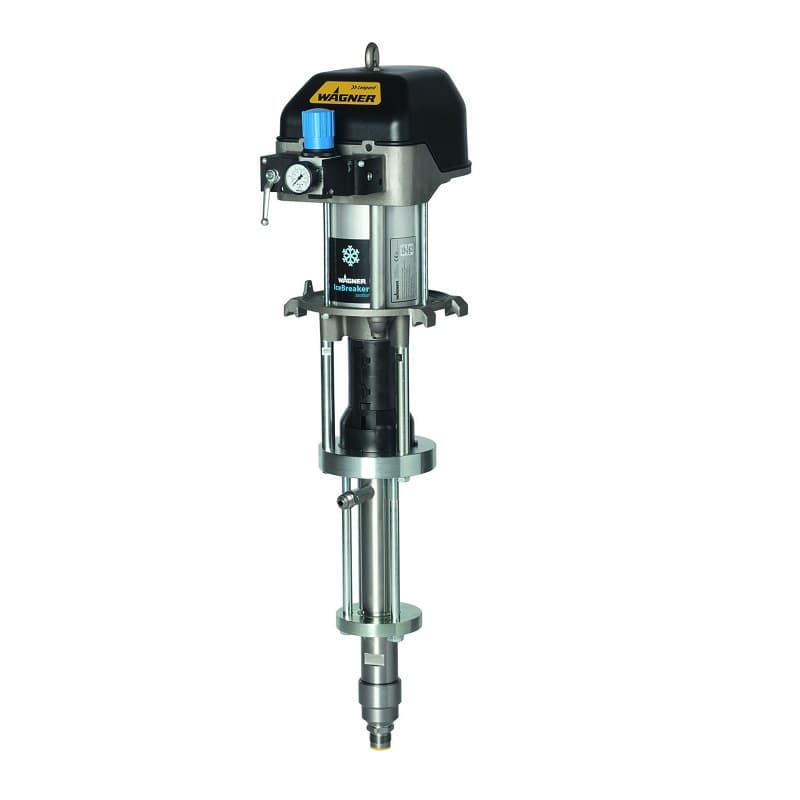

Leopard 35-70 PE/TG Pump Assembly
Manufacturer: Wagner
Part Number: 2329479
Description: Leopard 35-70 PE/TG Pump Assembly
Manufacturer Specifications:
- Pump Ratio: 35:1
- Max. Working Pressure (PSI): 3600
- Max. Flow (GPM): 1.11
- Air Pressure (PSI) Min/Max: 22 / 116
- Air Supply (Internal): BSP 1/2 in.
- Material Inlet (External): M 36 x 2
- Material Outlet (External): 3/8 in. NPS
- Max. Number of Guns (with 0.009 in. Nozzle): More than 6
- Max. Number of Guns (with 0.013 in. Nozzle): 4
- Max. Number of Guns (with 0.017 in. Nozzle): 2
Parts:
367505 - Fluid Piston
367509 - Valve Seat Inlet, 40TC
367510 - Valve Seat Outlet, 40TC
